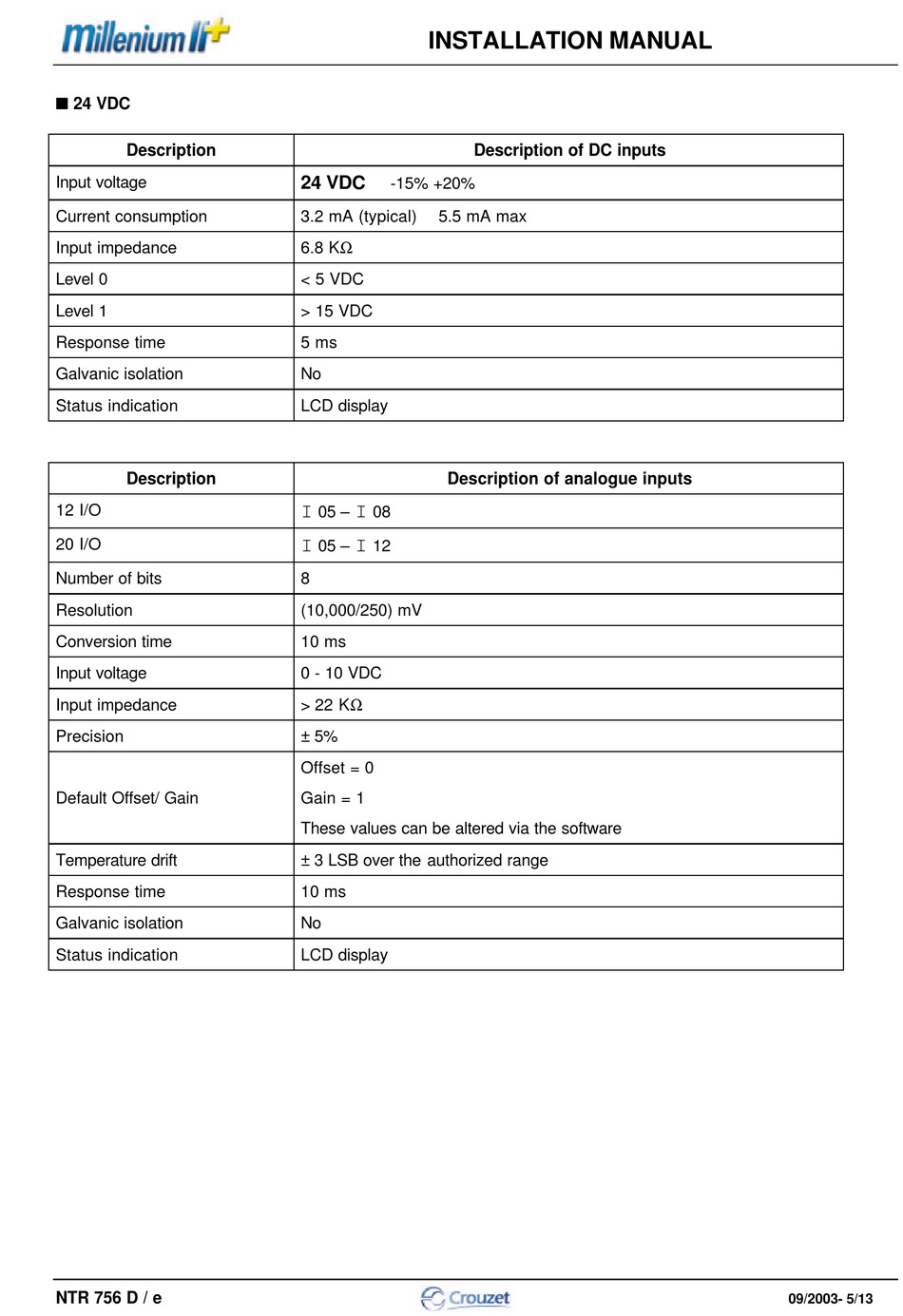

Crouzet MILLENIUM II+ Series Installation Manual page 6

n 24 VDC
Description
Input voltage
Current consumption
Input impedance
Level 0
Level 1
Response time
Galvanic isolation
Status indication
Description
12 I/O
20 I/O
Number of bits
Resolution
Conversion time
Input voltage
Input impedance
Precision
Default Offset/ Gain
Temperature drift
Response time
Galvanic isolation
Status indication
NTR 756 D / e
INSTALLATION MANUAL
24 VDC
-15% +20%
3.2 mA (typical) 5.5 mA max
6.8 KΩ
< 5 VDC
> 15 VDC
5 ms
No
LCD display
Description of analogue inputs
I I
05 – 08
I I
05 – 12
8
(10,000/250) mV
10 ms
0 - 10 VDC
> 22 KΩ
± 5%
Offset = 0
Gain = 1
These values can be altered via the software
± 3 LSB over the authorized range
10 ms
No
LCD display
Description of DC inputs
