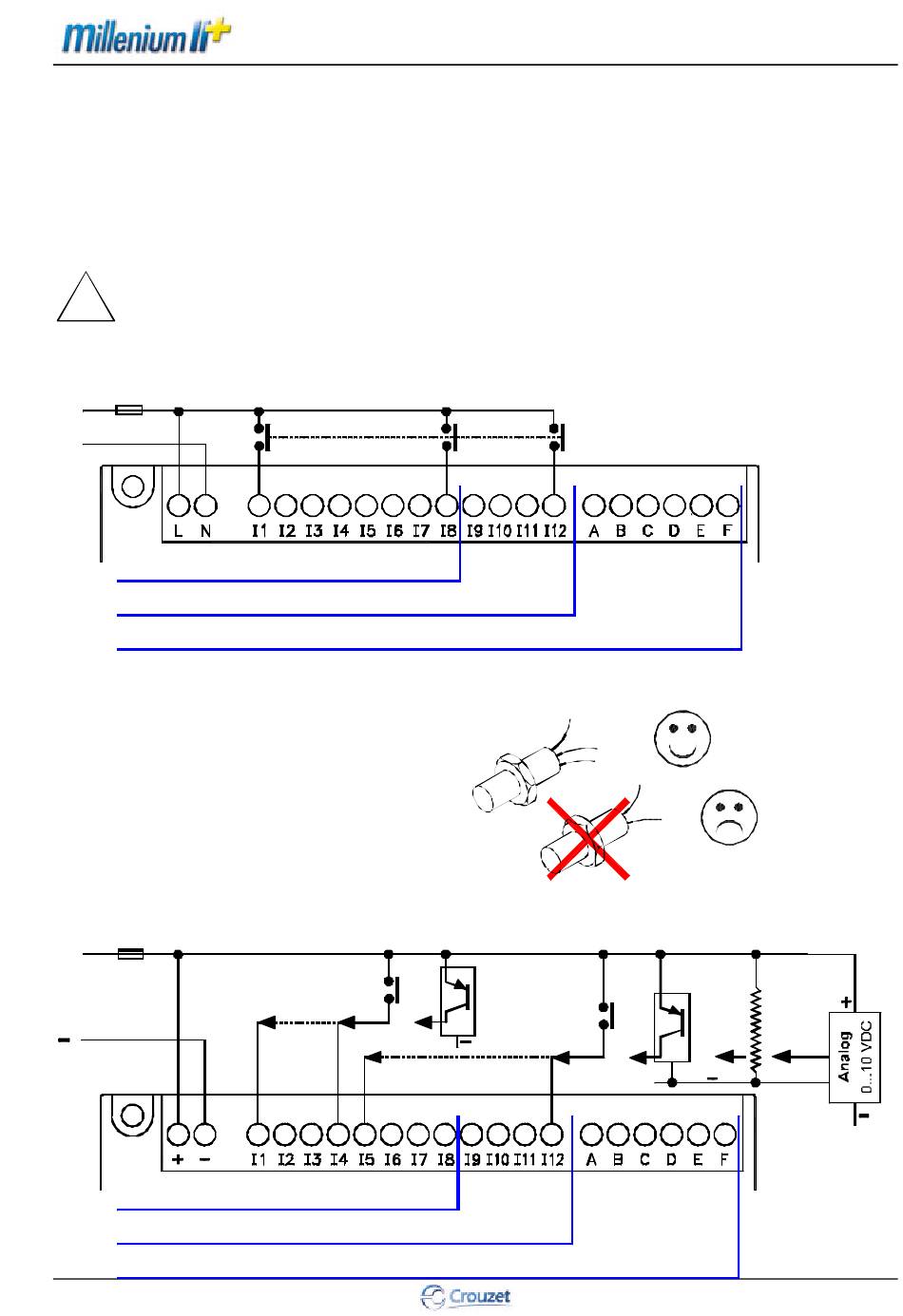

4.4 Input wiring diagram
POWER: AC INPUT: AC
100...240 VAC (-15%, +10%) 50/60 Hz
24 VAC (-15%, +10%)
Ambient temperature: -5 °C +55 °C
!
Terminals L and N cannot be reversed.
(1) fuse or cut-out
(1)
L
N
SA/EC/CN 12
SA/EC/CN 20
EX - XT 20
POWER: DC INPUT: DC
24 VDC (-15%, +20%)
12 VDC (-15%, +30%)
EX - XT20R 12VDC (-11%, +30%)
Ambient temperature: -5 °C +55 °C
(1)
+ 24VDC /
+ 12 VDC
SA/EC/CN 12
SA/EC/CN 20
EX - XT 20
NTR 756 D / e
INSTALLATION MANUAL
extension manual
extension manual
See local
10 KΩ max
2.2 KΩ 0.5W: optimum value
See local
