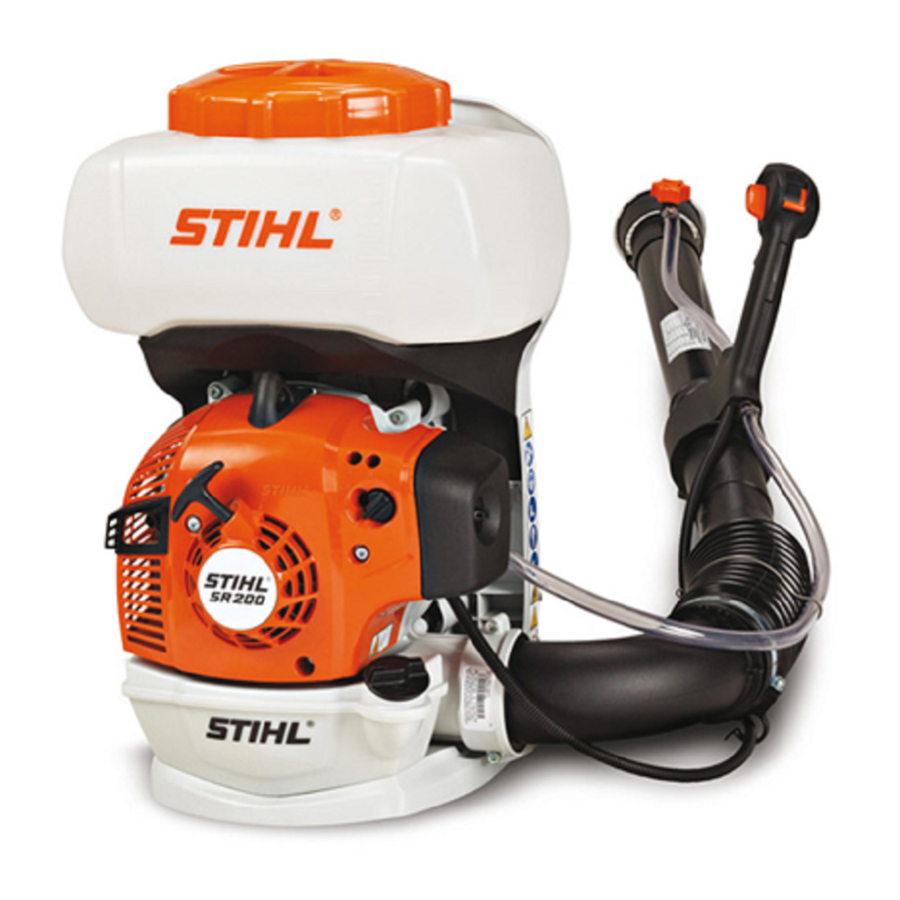

SR 200
2 - 26
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stihl SR 200

Summary of Contents for Stihl SR 200

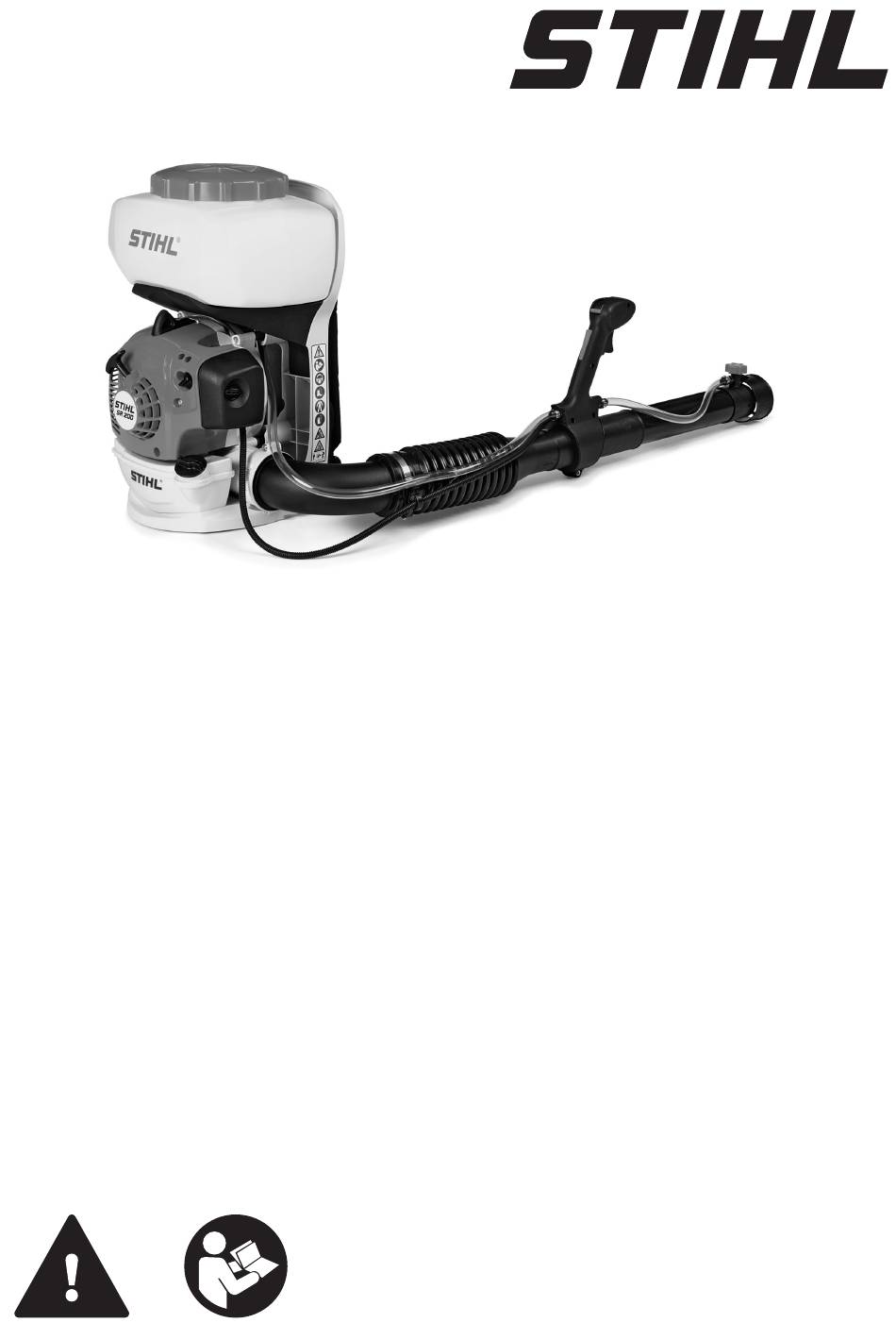

  • Page 1 SR 200 2 - 26 Instruction Manual...

  • Page 2: Table Of Contents

    Minimize Wear and Avoid Damage...22 Main Parts..........23 Engineering improvements Specifications..........24 STIHL's philosophy is to continually improve all Maintenance and Repairs......25 of its products. For this reason we may modify Disposal............ 25 the design, engineering and appearance of our EC Declaration of Conformity....
  • Page 3 Only use parts and accessories that are explicitly Do not pass on or lend the machine to persons approved for this power tool by STIHL or are who are not familiar with this model and its han‐ technically identical. If you have any questions in dling –...
  • Page 4 English 2 Safety Precautions and Working Techniques 2.5.1 Mixing the Spray Solution Wear impermeable safety boots with a non-slip sole which are resistant to Mix the plant protection product strictly in accord‐ plant protection products. ance with the manufacturer's instructions – incor‐ rect mixtures may produce toxic fumes or explo‐...
  • Page 5 2 Safety Precautions and Working Techniques English In order to reduce the risk of damage to the envi‐ Do not fuel a hot engine – fuel may spill and ronment and plants, do not operate the sprayer: cause a fire. –...
  • Page 6 Wear of the blower housing (cracks, nicks, chips) may result in an increased risk of injury from thrown foreign objects. If the blower housing is damaged, consult your dealer – STIHL recom‐ mends you contact a STIHL servicing dealer To reduce the risk of accidents and personal injury, do not operate your power tool if it is not properly assembled and in good condition.
  • Page 7 – see also "Before Starting". Check in particular that the fuel STIHL recommends that you have servicing and system has no leaks and the safety equipment is repair work carried out exclusively by an author‐...

  • Page 8: Assembling The Unit

    Check the fuel filler cap for leaks at regular inter‐ vals. Use only a spark plug of the type approved by STIHL and make sure it is in good condition – see "Specifications". Inspect the ignition lead (insulation in good con‐...

  • Page 9: Adjusting The Throttle Cable

    4 Adjusting the Throttle Cable English ► Tighten down the screw (arrow). Mounting the Control Handle ► Slide the control handle (1) along the tube to the most comfortable position – distance between nozzle outlet (2) and the control han‐ ►...

  • Page 10: Harness

    27% (E27). 6.2.2 Engine oil If you mix the fuel yourself, use only STIHL two- stroke engine oil or another high-performance engine oil classified as JASO FB, JASO FC, JASO FD, ISO-L-EGB, ISO-L-EGC or ISO-L- EGD.

  • Page 11: Fueling

    STIHL MotoMix however can be stored for up to 5 years without any problems. ► Shake the canister containing the fuel mixture thoroughly before refueling WARNING ►...

  • Page 12: Information Before You Start

    English 8 Information Before You Start Information Before You Start NOTICE With the engine stopped and before starting, check the air intakes between the backplate and powerhead for blockages and clean if necessary. Control handle a 1/3 throttle b 2/3 throttle To disengage the travel limiter, ►...

  • Page 13: Starting / Stopping The Engine

    9 Starting / Stopping the Engine English Starting / Stopping the Cold Engine (cold start) Engine Before Starting ► Turn the choke knob to g. Warm Engine (warm start) ► Close valve lever (1) for solution feed. Start the engine. ►...

  • Page 14: Operating Instructions

    English 10 Operating Instructions As soon as the engine runs ► Place the unit securely on the ground and make sure that bystanders are well clear of the nozzle outlet. ► Make sure you have a firm footing: Hold the unit with your left hand on the container and put one foot against the base plate to prevent it from slipping.

  • Page 15: Calculating Required Quantity Of Solution

    11 Calculating Required Quantity of Solution English 11.3 Determining quantity of solution components (ignition, carburetor) from thermal overload. The quantity of solution required is calculated as follows: 10.2 After Finishing Work x 100 = T Storing for a short period: Wait for the engine to cool down.

  • Page 16: Metering Unit

    English 12 Metering Unit 12.2 Metering Knob b = Working width A = Area Example: The values determined above and a working width of 4 meters require the following setting on the metering unit: 144 l x 10 (m/min) x 4 m = 1.6 l/min 3600 m Hectares (ha) have to be converted into m...

  • Page 17: Filling The Container

    13 Filling the Container English 12.3.2 Discharge rate (l/min) without pressure In case of deviations: pump, with ULV nozzle ► Check the container, hose system, metering Spray tube angle knob and optional pressure pump for contami‐ nation and clean if necessary. Knob set‐...

  • Page 18: Mistblowing

    English 14 Mistblowing Fan jet baffle screen Do not exceed maximum fluid level of 10 liters (2.6 US.gals). Spray is broadened and softened. – for treating plants at close range (< 1.5 m) – reduces damage to plant, especially in sensi‐ tive phases of plant growth 45°...

  • Page 19: After Finishing Work

    15 After Finishing Work English 15 After Finishing Work ► Close the valve lever. ► Shut off the engine – see "Starting / Stopping the Engine". 15.1 Draining the Solution Container ► Clean the strainer (2) with clear water and a brush.

  • Page 20: Adjusting The Carburetor

    ► Fit a new filter element. As a temporary meas‐ eroded. Install only suppressed spark plugs of ure you can knock it out on the palm of your the type approved by STIHL – see "Specifica‐ hand or blow it out with compressed air. Do tions".

  • Page 21: Engine Running Behavior

    Have the muffler checked for contamination (car‐ bonization) by your servicing dealer. STIHL recommends that you have servicing and repair work carried out exclusively by an author‐ WARNING ized STIHL servicing dealer.

  • Page 22: Minimize Wear And Avoid Damage

    Clean Throttle cable Safety information label replace present only in some countries STIHL recommends STIHL dealers 23 Minimize Wear and Avoid ating and maintenance instructions in this man‐ Damage ual. This includes in particular: – Alterations or modifications to the product not Observing the instructions in this manual helps approved by STIHL.

  • Page 23: Main Parts

    STIHL recommends that you have servicing and repair work carried out exclusively by an author‐ ized STIHL servicing dealer. STIHL dealers are...

  • Page 24: Specifications

    1:6. For discharge rates with and without mounted For further details on compliance with Vibration special accessories see chapter on "Metering Directive 2002/44/EC see www.stihl.com/vib. Unit" 25.9 Sound pressure level L 25.6...

  • Page 25: Maintenance And Repairs

    1.5 m/s replacement parts. The K‑factor in accordance with Directive Original STIHL parts can be identified by the 2006/42/EC is 2.0 dB(A) for the sound pressure STIHL part number, the { logo and the level and sound power level; the K‑factor in...
  • Page 26 English 28 EC Declaration of Conformity ANDREAS STIHL AG & Co. KG Produktzulassung The year of manufacture and serial number are applied to the product. Done at Waiblingen, 03.02.2020 ANDREAS STIHL AG & Co. KG Dr. Jürgen Hoffmann Director Product Certification & Regulatory...
  • Page 27 28 EC Declaration of Conformity English 0458-457-0121-C...
  • Page 28 *04584570121C* 0458-457-0121-C...
