Installing the Device
2.5.2 Connecting Low DC Power
Figure 2.11
2.
Connect the positive wire from the power source to the positive (+) terminal on
the terminal block.
3.
Connect the negative wire from the power source to the negative (-) terminal on
the terminal block.
4.
For screw terminal blocks, install the safety cover.
Figure 2.12
16
All manuals and user guides at all-guides.com
Ground Terminal
6
DC Terminal Block Wiring – Screw Terminal Block for -12P, -24P and -48P Pow-
er Supplies
Screw
1
Safety Cover
2
Screw Terminal Block
3
RUGGEDCOM RX1510 Device
4

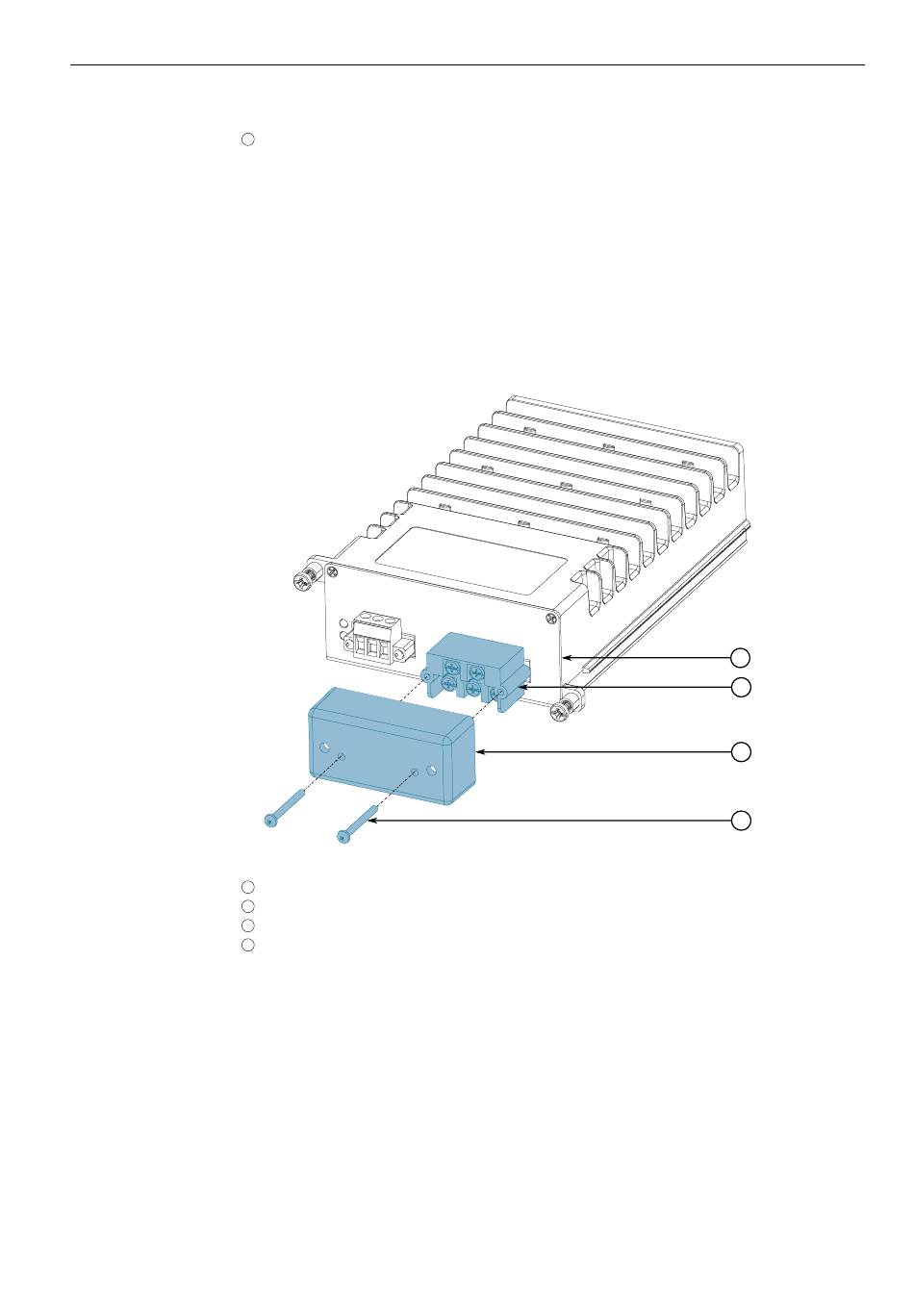

Assembling the Safety Cover
4
3
2
1
RUGGEDCOM RX1510
Installation Manual, 12/2019, C79000-G8976-1055-16
