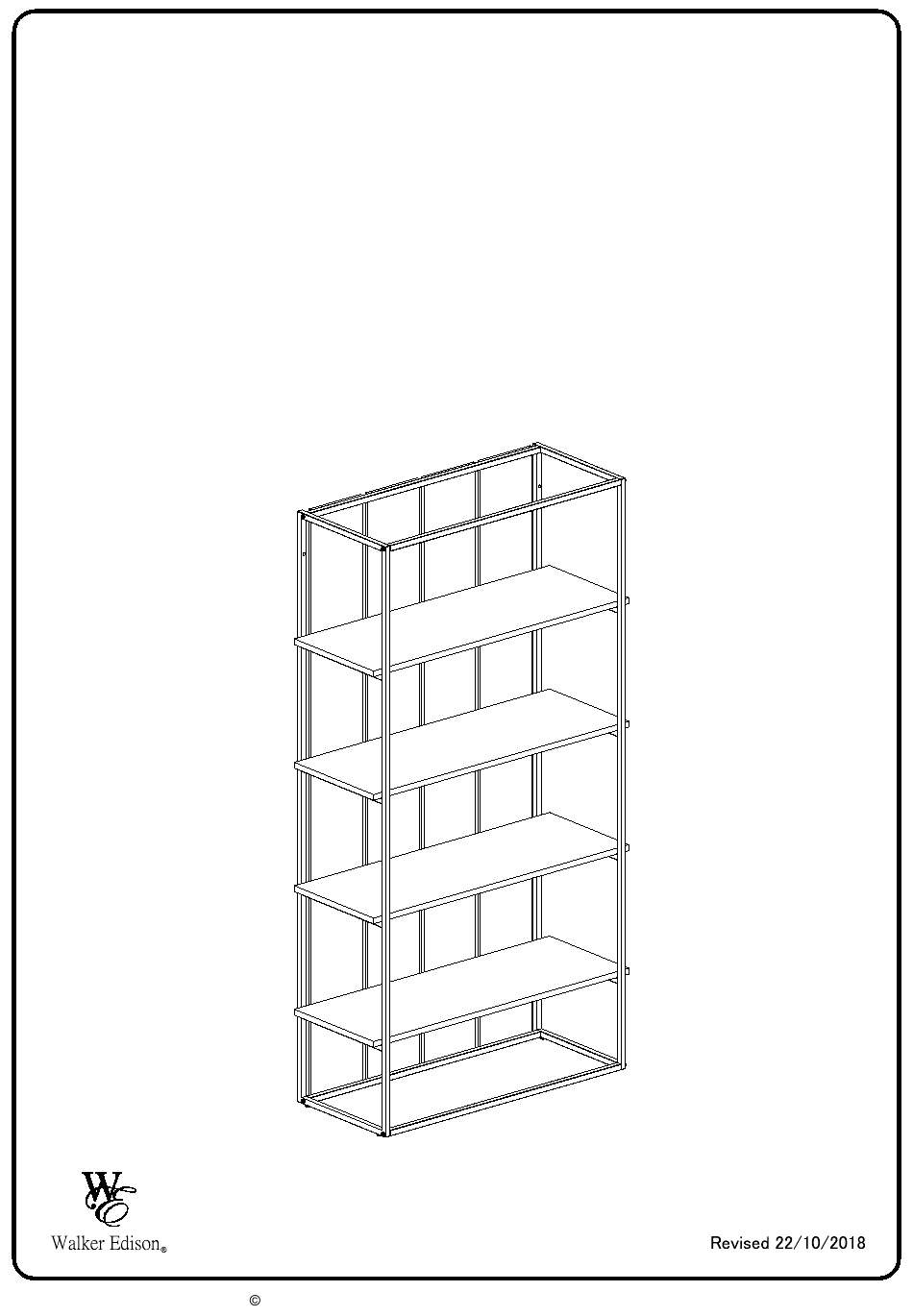

- Page 1 Item # : BS64HPW Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 3: Parts List
Parts List Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Attach part (3, 4) to part (1, 2) using bolt (A) with hex key (D).
- Page 6 Screw adjustable foot (C) to part (2).
- Page 7 Attach part (5, 6) to part (1, 2) using bolt (A) with hex key (D) per diagram.
- Page 8 Step 4 Attach part (7) to part (3, 6) using screw (B) with Philips head screwdriver. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 9 1. Place unit in desired location and mark the wall for anchor location, drill hole using 6mm size bit. 2. Insert anchor (E) into wall at desired location. 3. Secure furniture to wall using washer (G) and screw (F) per diagram. Wall anchor included for drywall mounting.
