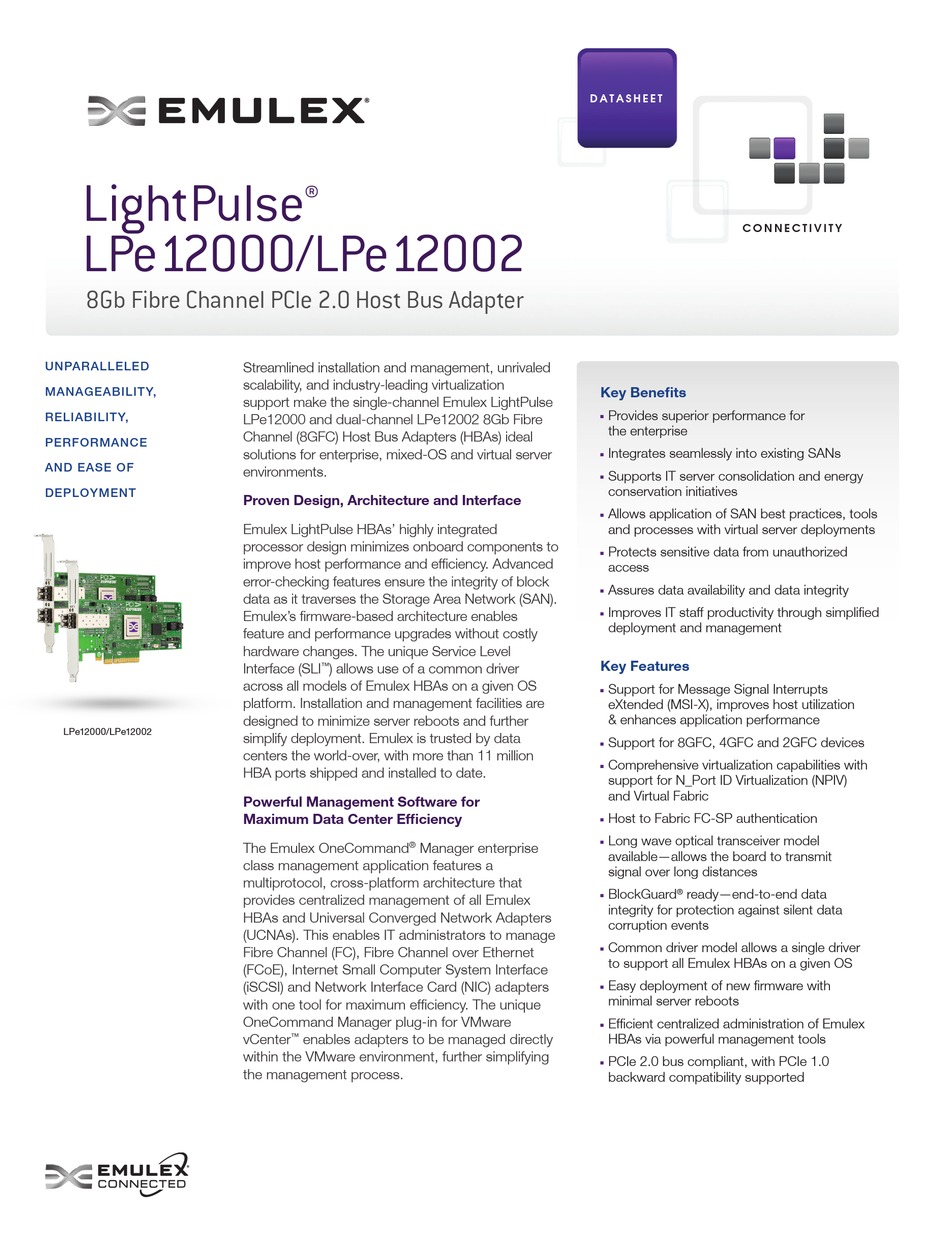

LightPulse
LPe12000/LPe12002
8Gb Fibre Channel PCIe 2.0 Host Bus Adapter
Unparalleled
manageability,
reliability,
performance
and ease of
deployment
LPe12000/LPe12002
®
Streamlined installation and management, unrivaled
scalability, and industry-leading virtualization
support make the single-channel Emulex LightPulse
LPe12000 and dual-channel LPe12002 8Gb Fibre
Channel (8GFC) Host Bus Adapters (HBAs) ideal
solutions for enterprise, mixed-OS and virtual server
environments.
Proven Design, Architecture and Interface
Emulex LightPulse HBAs' highly integrated
processor design minimizes onboard components to
improve host performance and efficiency. Advanced
error-checking features ensure the integrity of block
data as it traverses the Storage Area Network (SAN).
Emulex's firmware-based architecture enables
feature and performance upgrades without costly
hardware changes. The unique Service Level
Interface (SLI ) allows use of a common driver
™
across all models of Emulex HBAs on a given OS
platform. Installation and management facilities are
designed to minimize server reboots and further
simplify deployment. Emulex is trusted by data
centers the world-over, with more than 11 million
HBA ports shipped and installed to date.
Powerful Management Software for
Maximum Data Center Efficiency
The Emulex OneCommand Manager enterprise
®
class management application features a
multiprotocol, cross-platform architecture that
provides centralized management of all Emulex
HBAs and Universal Converged Network Adapters
(UCNAs). This enables IT administrators to manage
Fibre Channel (FC), Fibre Channel over Ethernet
(FCoE), Internet Small Computer System Interface
(iSCSI) and Network Interface Card (NIC) adapters
with one tool for maximum efficiency. The unique
OneCommand Manager plug-in for VMware
vCenter enables adapters to be managed directly
™
within the VMware environment, further simplifying
the management process.
D A t A S H e e t
C o n n e C t i v i t y
Key Benefits
Provides superior performance for
n
the enterprise
Integrates seamlessly into existing SANs
n
Supports IT server consolidation and energy
n
conservation initiatives
Allows application of SAN best practices, tools
n
and processes with virtual server deployments
Protects sensitive data from unauthorized
n
access
Assures data availability and data integrity
n
Improves IT staff productivity through simplified
n
deployment and management
Key Features
Support for Message Signal Interrupts
n
eXtended (MSI-X), improves host utilization
& enhances application performance
Support for 8GFC, 4GFC and 2GFC devices
n
Comprehensive virtualization capabilities with
n
support for N_Port ID Virtualization (NPIV)
and Virtual Fabric
Host to Fabric FC-SP authentication
n
Long wave optical transceiver model
n
available—allows the board to transmit
signal over long distances
BlockGuard ready—end-to-end data
®
n
integrity for protection against silent data
corruption events
Common driver model allows a single driver
n
to support all Emulex HBAs on a given OS
Easy deployment of new firmware with
n
minimal server reboots
Efficient centralized administration of Emulex
n
HBAs via powerful management tools
PCIe 2.0 bus compliant, with PCIe 1.0
n
backward compatibility supported
