Sioux Tools 1DS111 Instructions-Parts List Manual

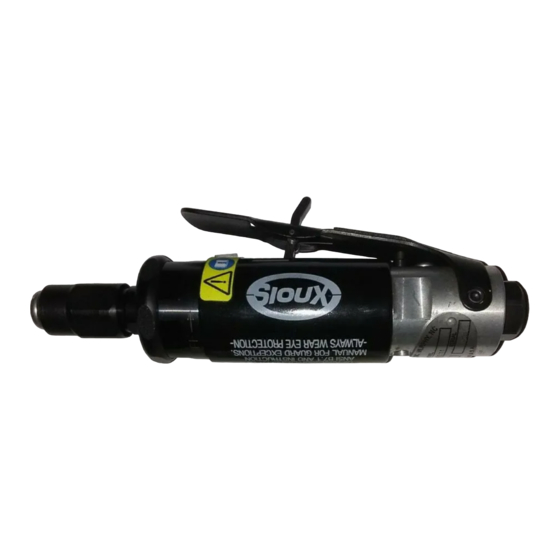

INSTRUCTIONS & PARTS LIST FOR "1DS" SERIES STRAIGHT DIE GRINDERS
Read and understand "Safety Instructions For Air Tools" and these instructions before
Venturi Vacuum tools can cause flying particles when used with out exhaust hoses or dust bags.
Always use exhaust hoses and dust bags with Venturi Vacuum tools.
AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter, pressure
regulator, and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to remove water
and dirt which may have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less than 1/4" (6.35 mm) I.D. Extension hoses should be at least 3/8" (10 mm) I.D. Use couplings and
fittings with at least 1/4" (6.35 mm) I.D.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 1 to 2 drops per minute, is recommended. If a lubricator is not
used, add .06 oz. (1.8 cc, 18 to 25 drops) of oil into the air inlet every 2 to 3 hours.
GENERAL OPERATION
• Speed of the tool may be adjusted by turning the speed control, located at the back of the tool, opposite the valve.
• When using the tool in a vise or toolpost holder, use moderate pressure.
• Refer to "Safety Guide for Sioux Abrasive Wheel" for abrasive wheel selection and safe operation.
We, Sioux Tools Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, declare under our sole responsibility that the products
to which this declaration relates are in conformity with the following standard or standards or other normative document or documents:
1 juni 2003
Murphy, North Carolina, USA
Utfärdningsort och datum
operating this tool.
Flying particles can cause injury.
SOUND AND VIBRATION READINGS
*Sound Pressure *Sound Power
Catalog No. dBA
1DS111 84.13
1DS112 84.13
1DS121 77.50
1DS122 77.50
1DS131 75.60
1DS132 75.60
1DS141 83.37
1DS142 83.37
*per PN8NTC1
DECLARATION OF CONFORMITY
1DS111, 1DS112, 1DS121, 1DS122, 1DS131, 1DS132, 1DS141, 1DS142
EN 792 (draft), EN 292 Parts 1&2, ISO 8662, Pneurop PN8NTC1
following the provisions of
89/392/EEC as amended by 91/368/EEC & 93/44/EC Directives.
Gerald E. Seebeck
Sioux Tools Inc.
Utfärdarens namn och titel
*Vibration
dBA
94.16
94.16
88.32
88.32
87.17
87.17
94.72
94.72
*per PN8NTC1 *per ISO 8662
President
1
Form ZCE450
Date 2003June19/E
Page 1 of 10
2
m/s
2.74
2.74
2.74
2.74
2.74
2.74
2.74
2.74
Utfärdarens underskrift
Printed In U.S.A.
