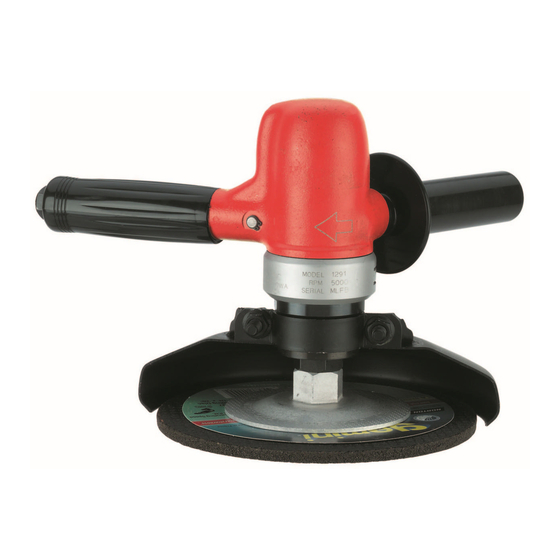

INSTRUCTIONS FOR 1291, 1291LK, 1291L GRINDERS
Read and understand "Safety Instructions For Air Tools" and these instructions before
Grinders without guards do not provide protection from exploding grinding wheels.
AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter, pressure regulator,
and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to remove water and dirt that may
have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less 3/8" (10 mm) I.D. Extension hoses should be at least 1/2" (13 mm) I.D. Use couplings and fittings with at
least 3/8" (10 mm) I.D.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 1 to 2 drops per minute, is recommended. If a lubricator is not used, add
.08 oz. (2.4 cc, 25 to 30 drops) of oil to the air inlet twice daily.
Inject Sioux No. 1232 grease through the grease fittings after every 40 hours of operation.
GENERAL OPERATION
CHECK THE TOOL DAILY WITH A TACHOMETER!
Start the tool by depressing the trigger or lever.
Always remove the tool from the air supply before installing or changing grinding wheels!
MOUNTING WHEELS
Cup grinding wheels and 7" & 9" depressed center grinding wheels must be tightened to 120 in-lb. (1.4KG-M) to keep wheels from spinning
off.
7" & 9" depressed center grinding wheels are mounted to the tool with the No. 510 holder. Screw the 510 holder on to the spindle. If
necessary, place the 25894 washers between the holder and the tool drive flange to adjust for wheel thickness. DO NOT place the
washers directly between the wheel and the holder. Install the wheel and secure with the 512 Holder Nut. Torque the nut to 120 in-
lb.(1.4KG-M).
operating this tool.
Do not operate this grinder without a guard.
Using this grinder without a guard can cause injury.
#510
HOLDER
POWER UNIT
5/8" X 11 THREAD
DRAIN
#25894
FLANGE
WASHERS
WARNING
WARNING
DEPRESSED CENTER
GRINDING WHEEL
#512
HOLDER NUT
1
Form ZCE479
Date 2003June20/C
Page 1 of 16
#30110
WRENCH
Printed In U.S.A.
Advertisement
Table of Contents
Related Manuals for Sioux Tools 1291
Summary of Contents for Sioux Tools 1291
- Page 1 Form ZCE479 Date 2003June20/C Page 1 of 16 INSTRUCTIONS FOR 1291, 1291LK, 1291L GRINDERS Read and understand "Safety Instructions For Air Tools" and these instructions before operating this tool. WARNING Grinders without guards do not provide protection from exploding grinding wheels.
-
Page 2: Declaration Of Conformity
*per ISO 8662-4 DECLARATION OF CONFORMITY We, Sioux Tools Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, declare under our sole responsibility that the products 1291, 1291LK, 1291X, 1291L to which this declaration relates are in conformity with the following standard or standards or other normative document or documents: EN 792 (draft), EN 292 Parts 1&2, ISO 8662, Pneurop PN8NTC1... - Page 3 ANWEISUNGEN FÜR SCHLEIFER 1291, 1291LK, 1291L Vor dem Betrieb dieses Werkzeugs lesen Sie bitte diese Anweisungen und die “Sicherheitsanweisungen für Druckluftwerkzeuge”. WARNUNG Ohne Schutzvorrichtung eingesetzte Schleifer bieten keinen Schutz vor berstenden Schleifscheiben. Diesen Schleifer nicht ohne Schutzvorrichtung einsetzen. Der Einsatz dieses Schleifers ohne Schutzvorrichtung kann zu Verletzungen führen.
- Page 4 *per ISO 8662-4 KONFORMITÄTSERKLÄRUNG Wir, Sioux Tools, Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, erklären hiermit alleinverantwortlich, daß die Produkte 1291, 1291LK, 1291X, 1291L, auf die sich diese Erklärung bezieht, mit den Anforderungen der folgenden Standards oder Normen oder Dokumenten übereinstimmen: EN 792 (Entwurf) EN 292 Teile 1&2, ISO 8662, Pneurop PN8NTC1...
-
Page 5: Montaje De Las Ruedas
INSTRUCCIONES ESMERILADORAS 1291, 1291LK Y 1291L Lea y entienda las “Instrucciones de seguridad para herramientas neumáticas” y estas instrucciones antes de operar esta herramienta. ADVERTENCIA Esmeriladoras sin cárteres no ofrecen protección de las partículas que pueden expeler las ruedas rectificadoras. -
Page 6: Declaracion De Conformidad
*según PN8NTC1 *según ISO 8662-4 DECLARACION DE CONFORMIDAD Nosotros, Sioux Tools, Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, declaramos bajo nuestra única responsabilidad que los productos 1291, 1291LK, 1291X, 1291L con los cuales se relaciona esta declaración están en conformidad con las siguiente(s) norma(s) u otro(s) documento(s) normativo(s): EN 792 (anteproyecto) EN 292 Partes 1&2, ISO 8662, Pneurop PN8NTC1... - Page 7 ISTRUZIONI PER LE RETTIFICATRICI 1291, 1291LK, 1291L Leggere attentamente le “Istruzioni per l’uso sicuro di apparecchiature pneumatiche” e le seguenti avvertenze prima di utilizzare il presente apparecchio ATTENZIONE Le rettificatrici sprovviste di ripari non proteggono da mole che esplodono. Non usare questa rettificatrice senza un riparo.
- Page 8 *secondo PN8NTC1 *secondo ISO 8662-4 CERTIFICAZIONE DI CONFORMITA La Sioux Tools, Inc, con sede al 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, solennemente dichiara sotto la propria e sola responsabilità che i prodotti 1291, 1291LK, 1291X, 1291L...
- Page 9 INSTRUCTIONS POUR MEULEUSES 1291, 1291LK, 1291L Lisez avec attention les “Instructions de mise en garde lors de l’utilisation d’outils pneumatiques” avant de vous en servir. AVERTISSEMENT Les meuleuses qui ne disposent pas de rabat protecteur ne protègent pas en cas d’éclatement de la meule.
-
Page 10: Declaration De Conformite
ISO 8662-4 DECLARATION DE CONFORMITE La société Sioux Tools, Inc., située à : 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, affirme que les produits 1291, 1291LK, 1291X, 1291L dont cette fiche fait l’objet, sont conformes aux normes, documents normatifs et autres références : EN 792 (ébauche) Parties 1 et 2 de la norme EN 292, ISO 8662, Pneurop PN8NTC1... - Page 11 INSTRUCTIES VOOR SLIJPMACHINES 1291, 1291LK, 1291L Voordat u met de machine aan de slag gaat, moet u deze instructies en de “Veiligheidsvoorschriften voor persluchtmachines” gelezen en begrepen hebben. OPGEPAST Slijpmachines zonder beschermkap beschermen niet tegen barstende slijpschijven. Deze slijpmachine niet gebruiken zonder beschermkap.
- Page 12 PN8NTC1 ISO 8662-4 CONFORMITEITSVERKLARING Ondergetekende, Sioux Tools, Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, verklaart met inachtneming van de eigen aansprakelijkheid desbetreffend, dat de produkten 1291, 1291LK, 1291X, 1291L waarop deze verklaring van toepassing is, conform zijn met de hierna genoemde norm, normen en/of andere regels en voorschriften:...
- Page 13 ANVISNINGAR FÖR 1291, 1291LK, 1291L SLIPARE Läs och sätt dig in “Säkerhetsföreskrifter för tryckluftsverktyg” samt dessa anvisningar innan du använder detta verktyg VARNING Slipare utan skydd ger inte skydd mot exploderande slipskivor. Kör inte den här sliparen utan skydd. Användning av den här sliparen utan skydd kan vålla personskada.
-
Page 14: Försäkran Om Överensstämmelse
*enligt PN8NTC1 *enligt ISO 8662-4 FÖRSÄKRAN OM ÖVERENSSTÄMMELSE Vi, Sioux Tools, Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, förklarar under eget ansvar att produkterna 1291, 1291LK, 1291X, 1291L som denna försäkran gäller uppfyller följande standard eller standarder eller andra normgivande dokument:... - Page 15 MEMO...
- Page 16 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Der durch Elektrosanden, -sägen, -schleifen und -bohren sowie durch andere Bauarbeiten anfallende Staub enthält Chemikalien, die nachweislich Krebs sowie Geburts- bzw. andere Fortpflanzungsschäden hervorrufen.
