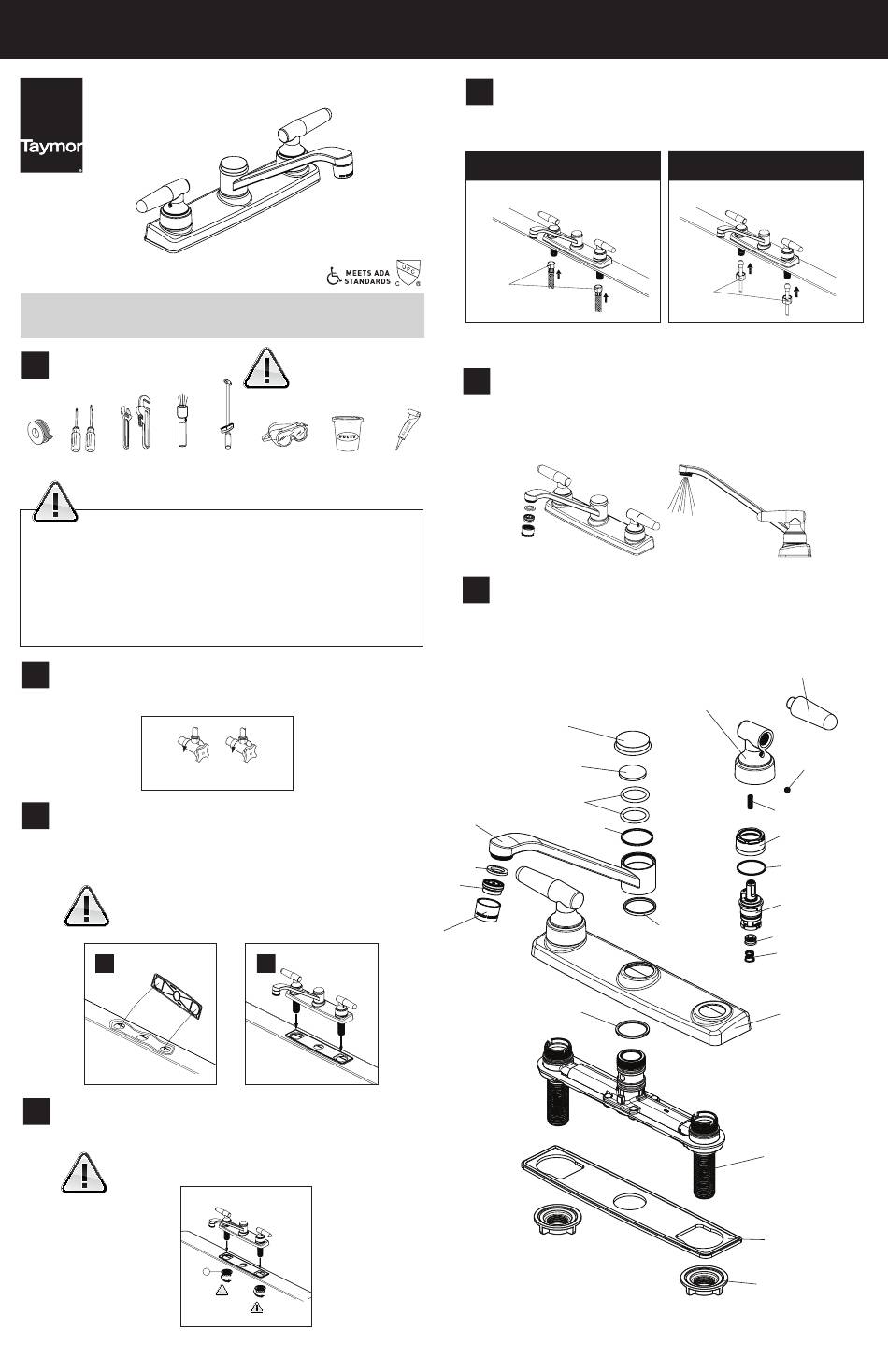

Taymor 06-8867LH Installation Instructions

INSTALLATION INSTRUCTIONS
06-8867LH
TWO HANDLE KITCHEN FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
ASME A112.18.1/CSA B125.1 and NSF-61
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.

HAVE BASIC TOOLS READY

1

RECOMMENDED TOOLS:

Teflon tape Screwdrivers Adjustable and
Flashlight
Pipe wrench
WARNING: READ ALL the instructions completely before beginning.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST ) 1-800-387-7064 for additional assistance or service.

TURN OFF THE MAIN WATER SUPPLY

2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF
GASKET & FAUCET INSTALLATION
3
A) Apply a bead of plumber's putty or silicone caulk around the sink openings. Install the gasket over
the three holes in your sink.
B) Install faucet shanks through the holes of the sink. Centre the faucet body on the sink.
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
A

HAND TIGHTEN THE WING NUTS

4
From underneath the sink, hand tighten the wing nuts. Tighten gently until snug and alternate from side
to side to seat the faucet body evenly.
Don't over tighten
Your installation may require new supply
lines. (Supply lines are not included.)
Torque wrench Safety goggles Plumber's putty
TURN OFF
B
1

ATTACH THE HOT AND COLD SUPPLY LINES

5
Apply teflon tape onto threaded ends of faucet inlets.
Connect water supply lines to faucet inlets. Hot water supply lines go into left inlet. Cold water supply
lines go into right inlet. (Supply lines and fittings are not included)
FOR BRAIDED PLASTIC AND BRAIDED
STAINLESS STEEL SUPPLY TUBES
THESE SUPPLY TUBES HAVE INTEGRAL NUTS, SO JUST
SCREW THE NUT ONTO THE FAUCET INLET.
TORQUE
22 – 30 FT/LBS.
FLUSHING & AERATOR CLEANING
6
Remove the aerator by turning it counterclockwise. Remove the internal parts of the aerator by push-
ing them out with your fingers. Remove any debris. Turn on hot and cold water supplies. Turn faucet
handles all the way on and run water through the spout for about a minute to remove debris. While
water is running check all connections for leaks. Reassemble the aerator and screw it back into the
spout hand tight.
Silicone caulk

EXPLODED DIAGRAM FOR REFERENCE

7
MAINTENANCE Your new faucet is designed for years of trouble-free performance. Keep it looking
new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh
chemicals as these will dull the finish and void your warranty.
14 - CAP
15 - WASHER
16 - O-RING
19 - SPOUT
17 - WEARABLE RING
20 - AERATOR WASHER
21 - AERATOR
22 - AERATOR SHELL
23 - WASHER
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
FOR 3/8" O.D. BALL-NOSE SUPPLY TUBES
IF THE SUPPLY TUBE END HAS A BULBOUS SHAPE, USE
COUPLING NUTS.
TORQUE
22 – 30 FT/LBS.
1 - HANDLE
2 - HANDLE SEAT
3 - SET SCREW
4 - SCREW
5 - BONNET
6 - WASHER
7 - CARTRIDGE
18 - WEARABLE RING
8 - SEAT
9 - SPRING
10 - ESCUTCHEON
11 - BODY
12 - BASE PLATE
13 - MOUNTING NUT
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
