Taymor INFINITY 06-8830 Installation Instructions

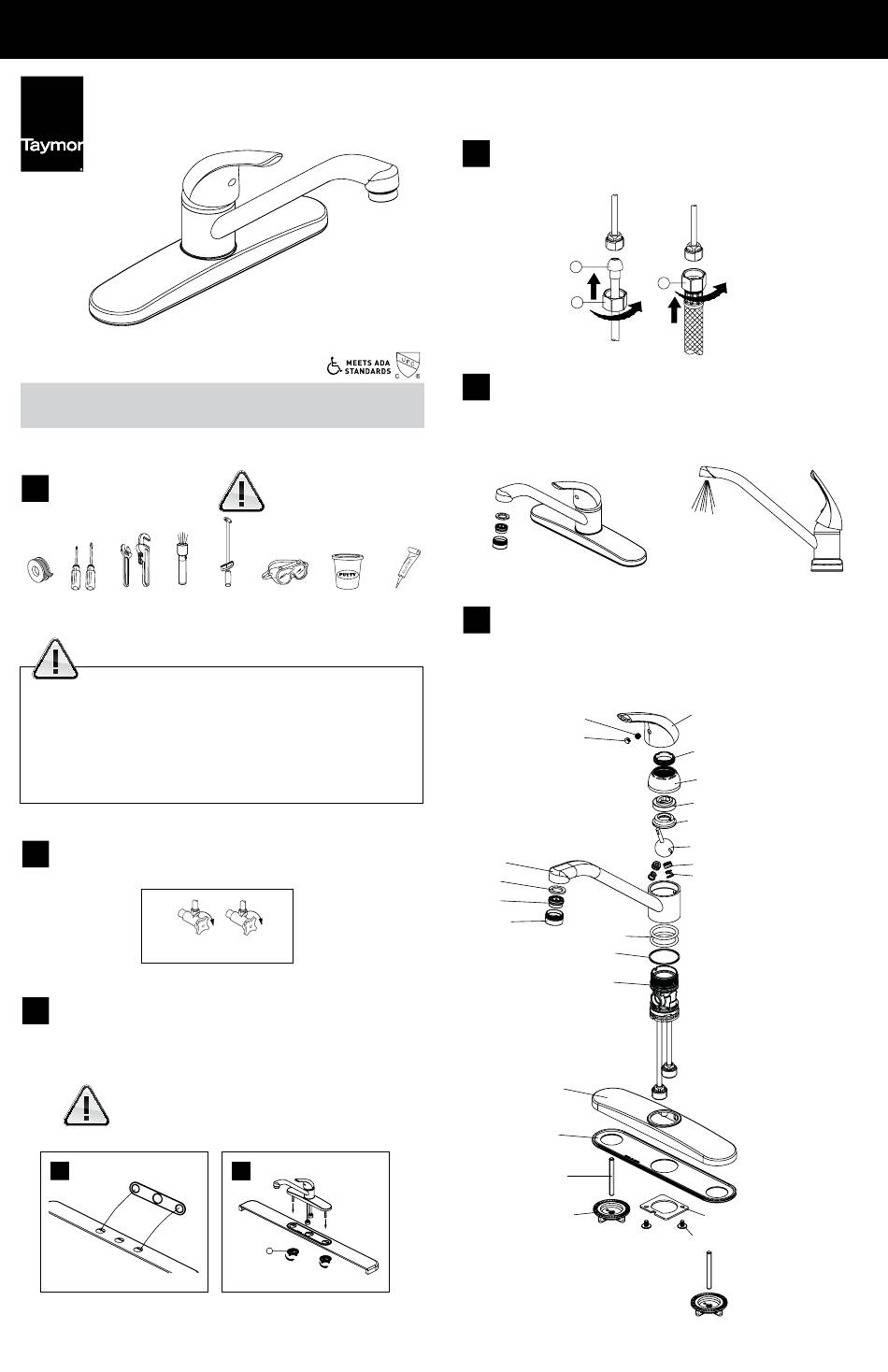

INSTALLATION INSTRUCTIONS
INFINITY 06-8830

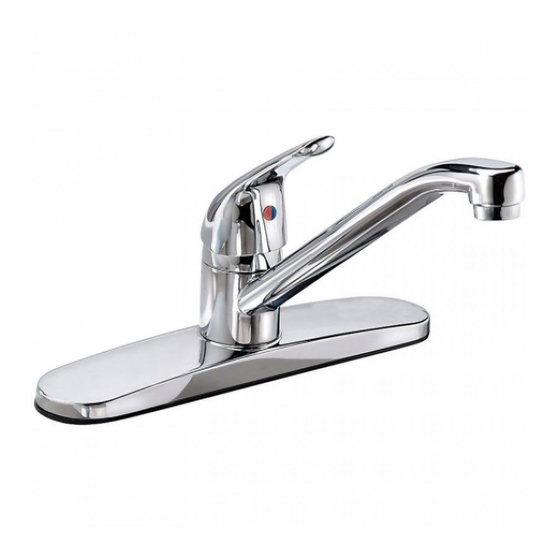

SINGLE HANDLE KITCHEN FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
cUPC, ASME A112.18.1, NSF-61 AND LOW LEAD COMPLIANT
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.

HAVE BASIC TOOLS READY

1

RECOMMENDED TOOLS:

Teflon tape Screwdrivers Adjustable Flashlight
wrench and
pipe wrench
WARNING: READ ALL the instructions completely before beginning installation.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST ) 1-800-387-7064 for additional assistance or service.

TURN OFF THE MAIN WATER SUPPLY

2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF

FAUCET INSTALLATION

3
A) Remove old faucet. Clean sink surface in preparation for new faucet. Apply a bead of plumber's
putty or silicone caulk around the faucet openings. Install the gasket over the three holes in your
sink.
B) Place faucet in position on sink. From underside. Secure faucet with nut (1).
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
A
Your installation may require new supply
lines. (Supply lines are not included.)
Torque wrench Safety goggles
Plumber's putty
TURN OFF
B
1

ATTACH THE HOT AND COLD SUPPLY LINES

4
Make connections to water lines. Use 1/2" I.P.S. faucet connections (2) or coupling nuts (3) (not includ-
ed) with 3/8" O.D. ball-nose riser (1). Use two wrenches when tightening. Do not over tighten.
FLUSHING & AERATOR CLEANING
5
Remove the aerator by turning it counterclockwise. Remove the internal parts of the aerator by push-
ing them out with your fingers. Remove any debris. Turn on hot and cold water supplies. Turn faucet
handle all the way on and run water through the spout for about a minute to remove debris. While
water is running check all connections for leaks. Reassemble the aerator and screw it back into the
spout hand tight.
Silicone caulk
EXPLODED DIAGRAM FOR
6
REFERENCE

MAINTENANCE

Your new faucet is designed for years of trouble-free performance. Keep it looking new by cleaning it
periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh chemicals as these will
dull the finish and void your warranty.
23 - SCREW
22 - INDEX
21 - SPOUT
20 - WASHER
19 - AERATOR
18 - AERATOR SHELL
17 - ESCUTCHEON
16 - BASE PLATE
15 - BOLT
14 - MOUNTING NUT
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
1
2
3
1 - HANDLE
2 - ADJUSTABLE RING
3 - CAP
4 - CAM
5 - CAM PACKING
6 - CARTRIDGE
7 - DISC
8 - SPRING
9 - O-RING
10 - WASHER
11 - BODY
12 - WASHER
13 - SCREW
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
