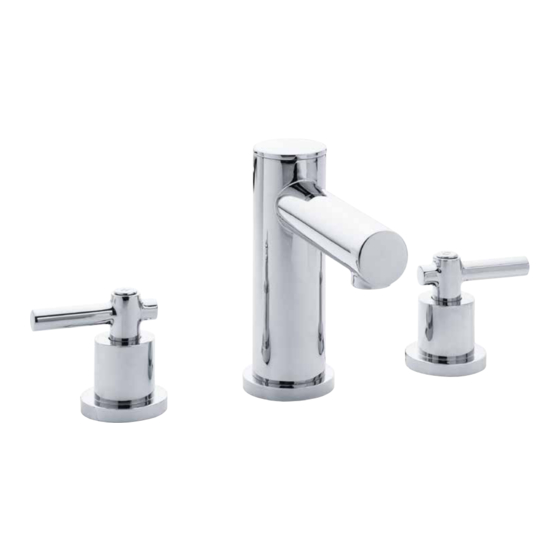

Two handle lavatory faucet

Advertisement

Available languages

Available languages

Quick Links

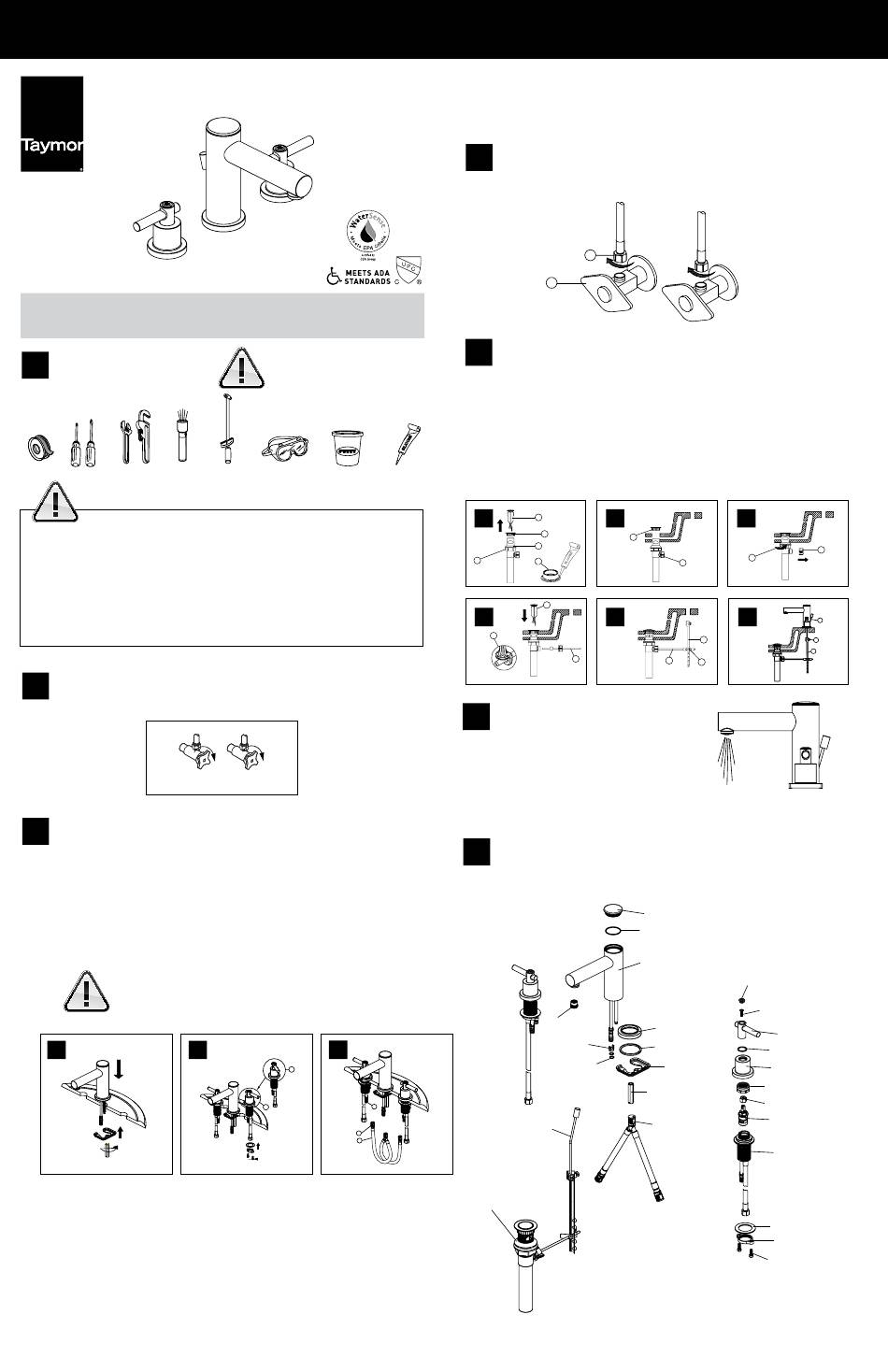

INSTALLATION INSTRUCTIONS
ASTRAL 06-4029P
TWO HANDLE LAVATORY FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
ASME A112.18.1/CSA B125.1 and NSF-61
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.
HAVE BASIC TOOLS READY
1
RECOMMENDED TOOLS:
Teflon tape Screwdrivers
Adjustable and
Flashlight
Pipe wrench
WARNING: READ ALL the instructions completely before beginning.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774
(EAST ) 1-800-387-7064 for additional assistance or service.
TURN OFF THE MAIN WATER SUPPLY
2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF
FAUCET INSTALLATION
3
A) Install spout on seat and through the center mounting hole of the sink or countertop. From
underneath the sink secure the spout with rubber washer, metal washer and nut.
B) Ensure the handle seats and the handles are aligned as in diagram (2) by turning the handle seat if
necessary (1), the open-close turn of the handle cannot exceed 90°. Slide hot and cold end valves
through sink mounting holes. Make sure the valve for "Hot" is placed on the left hand side and long
inlet tubes are installed away from spout. Note: Hot side end valve is labeled. Secure end valves
with washers and nuts. Hand tighten nuts onto shank. Lock nuts into position by tightening screws.
C) Align tabs (1) and (2) on quick connects (3). Push quick connect housing firmly upward and snap onto
receiving tube tab. Pull down moderately to ensure connection has been made. If it is necessary to
remove quick connect, squeeze tabs on hose between index finger and thumb, then pull down to
disconnect.
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
A
Your installation may require new supply
lines. (Supply lines are not included.)
Safety goggles
Torque wrench
Plumber's putty
TURN OFF
B
C
1
2
2
3
ATTACH THE HOT AND COLD SUPPLY LINES
4
Thread the nut (1) on supply line onto outlet of water supply valve (2) and tighten with
wrench. Do not overtighten.
INSTALLING POP-UP DRAIN
5
A) Remove pop-up plunger (A) and flange (B). Screw locknut (C) all the way down. Push
gasket (D) down. Apply silicone to underside of flange (B).
B) Insert body into sink (from underneath). Screw flange onto body. Pivot hole (E) must face
the back of the sink.
C) Tighten locknut (C) and gasket but do not overtighten. Remove pivot ball retaining nut (E).
D) Slide pivot rod (F) into the eye of the pop-up plunger (A). Hand tighten retaining nut.
E) Slide pivot rod (F) through hole in spring clip (G), then through lever strap (H) and back
through spring clip.
Silicone caulk
F) Insert lift rod (I) down through faucet body and then into lever strap (H). Tighten screw (J).
Connect assembly to drain.
A
A
D
C
B
D
A
FLUSHING
6
Turn on hot and cold water supplies. Turn faucet handles
all the way on and run water through the spout for about
a minute to remove debris. While water is running check
all connections for leaks. Reassemble the aerator and
screw it back into the spout hand tight.
EXPLODED DIAGRAM FOR REFERENCE
7
MAINTENANCE Your new faucet is designed for years of trouble-free performance. Keep it
looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel
wool and harsh chemicals as these will dull the finish and void your warranty.
1
23 - LIFT ROD
24 - POP-UP DRAIN ASSEMBLY
CUSTOMER SERVICE
WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
1
2
B
B
B
E
A
E
H
F
F
G
1 - CAP
2 - O-RING
3 - SPOUT
4 - AERATOR
7 - FLANGE
5 - BLOCK
8 - WASHER
6 - O-RING
9 - WASHER
10 - NUT
11 - HOSE
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
C
E
C
F
1
3
2
12 - INDEX
13 - SCREW
14 - HANDLE
15 - O-RING
16 - HANDLE SEAT
17 - BONNET
18 - INVERTER
19 - CARTRIDGE
20 - VALVE SEAT
21 - WASHER
22 - BRACKET
23 - LOCKING SCREW
