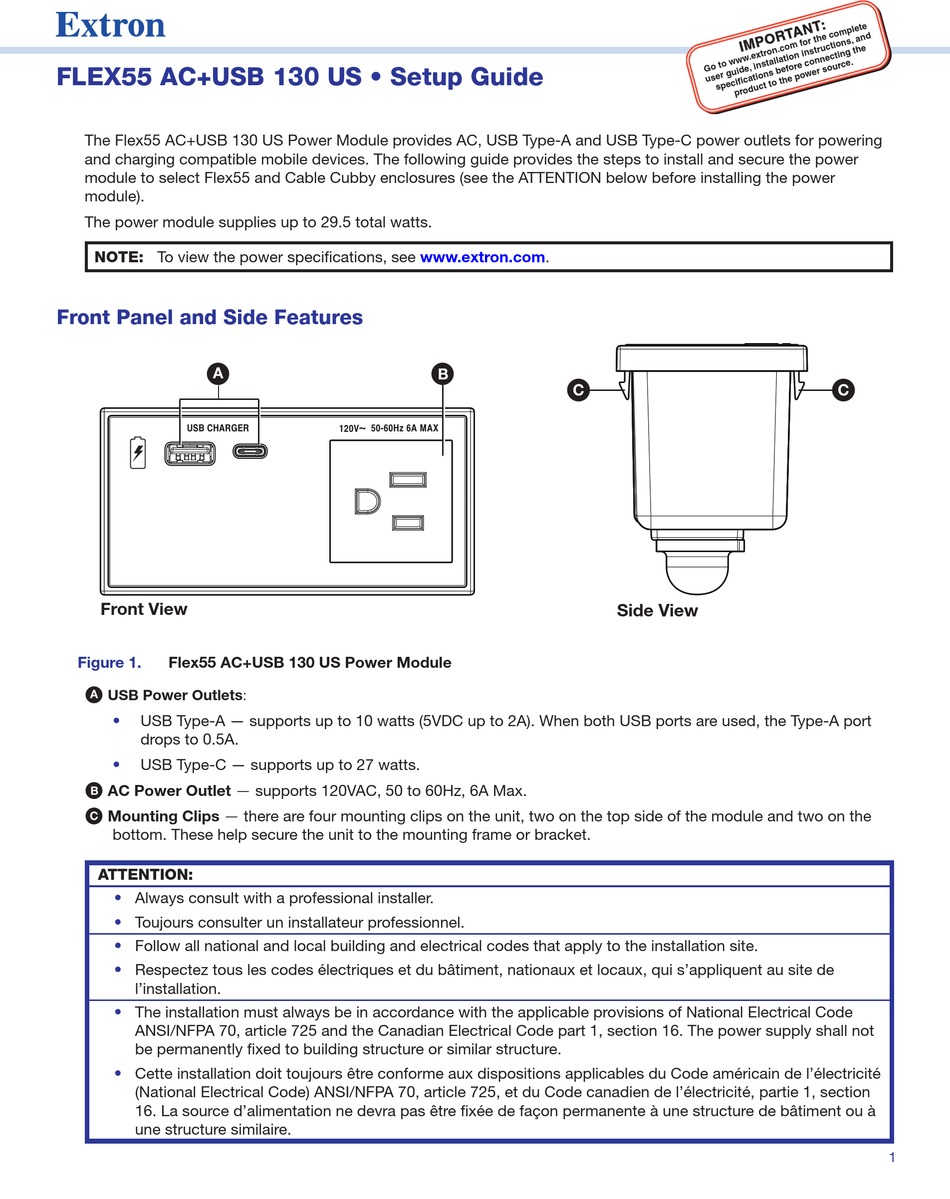

FLEX55 AC+USB 130 US • Setup Guide
The Flex55 AC+USB 130 US Power Module provides AC, USB Type-A and USB Type-C power outlets for powering
and charging compatible mobile devices. The following guide provides the steps to install and secure the power
module to select Flex55 and Cable Cubby enclosures (see the ATTENTION below before installing the power
module).
The power module supplies up to 29.5 total watts.
NOTE: To view the power specifications, see www.extron.com.
Front Panel and Side Features
A
USB CHARGER
Front View

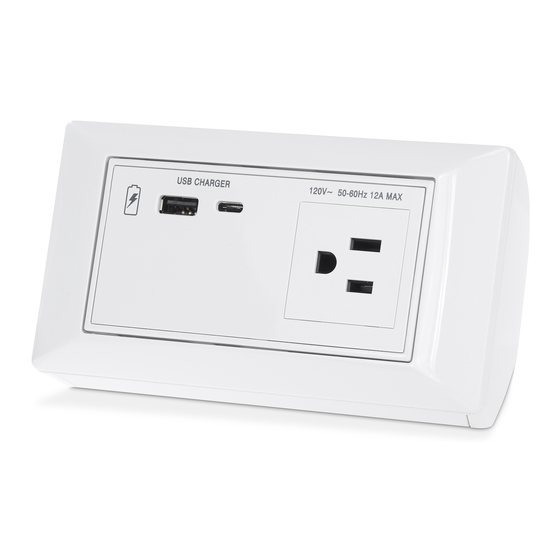

Figure 1. Flex55 AC+USB 130 US Power Module
USB Power Outlets:
A
• USB Type-A — supports up to 10 watts (5VDC up to 2A). When both USB ports are used, the Type-A port
drops to 0.5A.
• USB Type-C — supports up to 27 watts.
C
AC Power Outlet — supports 120VAC, 50 to 60Hz, 6A Max.
B
Mounting Clips — there are four mounting clips on the unit, two on the top side of the module and two on the
C
bottom. These help secure the unit to the mounting frame or bracket.
ATTENTION:
• Always consult with a professional installer.
• Toujours consulter un installateur professionnel.
• Follow all national and local building and electrical codes that apply to the installation site.
• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de
l'installation.
Side View
• The installation must always be in accordance with the applicable provisions of National Electrical Code
ANSI/NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not
be permanently fixed to building structure or similar structure.
• Cette installation doit toujours être conforme aux dispositions applicables du Code américain de l'électricité
(National Electrical Code) ANSI/NFPA 70, article 725, et du Code canadien de l'électricité, partie 1, section
16. La source d'alimentation ne devra pas être fixée de façon permanente à une structure de bâtiment ou à
une structure similaire.
B
~
120V 50-60Hz 6A MAX
C
A
USB CHARGER
Front View
C
Side View
~
120V 50-60Hz 6A M
C
