AEMC instruments MD305 User Manual

AC Current Probe
Model MD305
User Manual
DESCRIPTION

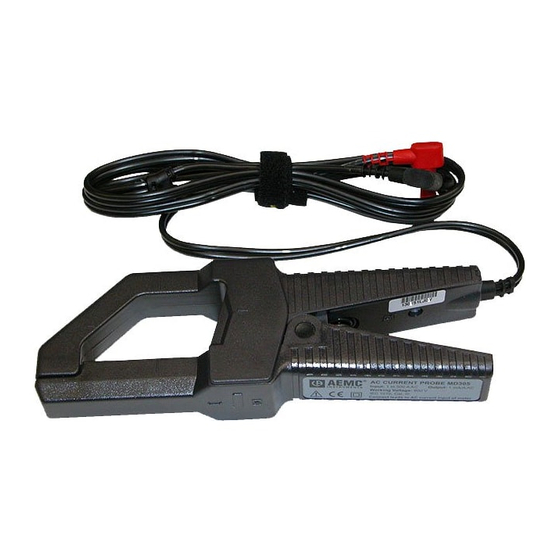

The MD305 (Catalog #1201.36) is designed for use in industrial environments. The hook
shaped jaws enable the user to "pry" into or "hook" onto cables (will accept 2 x 500 MCM) or
smaller bus bars. This device is compatible with any AC Ammeter, multimeter, or other current
measurement instruments with an input impedence lower than 5Ω. To achieve this stated
accuracy, use the MD305 with an ammeter with an accuracy of 0.75% or better.
WARNING
These safety warnings are provided to ensure the safety of personnel and proper operation of the instrument.
• Read the instruction manual completely and follow all the safety information before attempting to use or
service this instrument.
• Use caution on any circuit; high voltages and currents may be present and may pose a shock hazard.
• Read the Safety Specifications section prior to using the current probe. Never exceed the maximum
voltage ratings given.
• Safety is the respondibility of the operator.
• ALWAYS connect the current probe to the display device before clamping the probe onto the sample
being tested.
• ALWAYS inspect the instrument, probe, probe cable, and output terminals prior to use. Replace any
defective parts immediately.
• NEVER use the current probe on electrical conductors rated above 600V in overvoltage category III
(CAT III). Use extreme caution when clamping around bare conductors or bus bars.
INTERNATIONAL ELECTRICAL SYMBOLS
This symbol signifies that the current probe is protected by double or reinforced
insulation. Use only factory-specified replacement parts when servicing the instrument.
This symbol signifies CAUTION! and requests that the user refer to the user manual
before using the instrument.
This symbol signifies that this is a type A current sensor and that application near and
removal from HAZARDOUS LIVE conductors is permitted.
DEFINITION OF MEASUREMENT CATEGORIES
CAT IV: For measurements performed at the primary electrical supply (<1000V), such as
primary overcurrent protection devices, ripple control units, or meters.
CAT III: For measurements performed in the building installation at the distribution level, such
as hardwired equipment in fixed installation or circuit breakers.
CAT II: For measurements performed on circuits directly connected to the electrical
distribution system, such as measurements on household appliances or portable
tools.
RECEIVING YOUR SHIPMENT
Upon receiving your shipment, make sure that the contents are consistent with the packing
list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a
claim immediately with the carrier, and notify your distributor with a detailed description of any
damage immediately.
