C-LITE C-WP-C-TR Series Quick Start Manual page 3

INSTALLATION INSTRUCTIONS
C-WP-C-TR Series

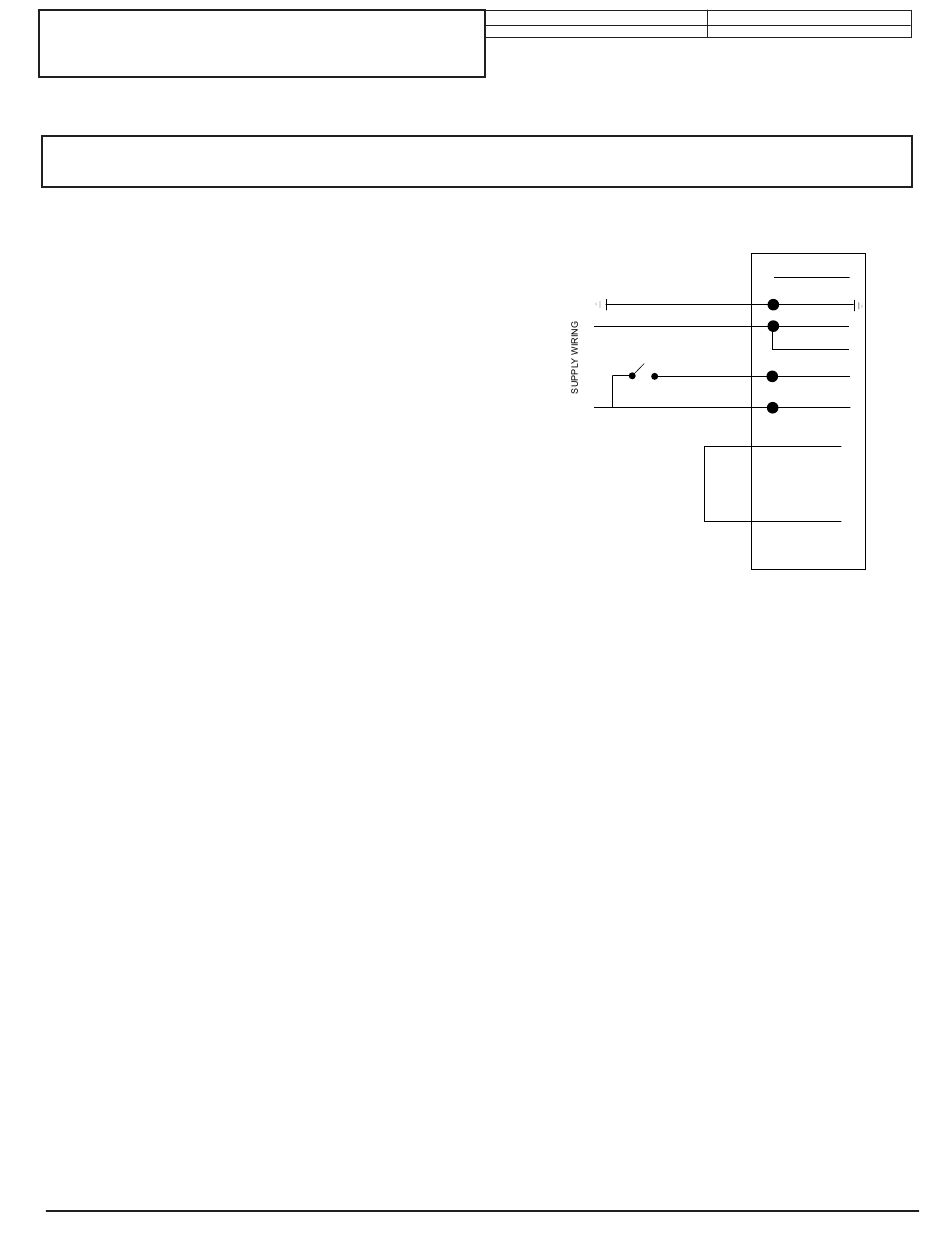

ELECTRICAL CONNECTIONS- LUMINIARE WITH EMERGENCY DRIVER
STEP 1:
Make the following electrical connections:
a. Connect the black luminaire lead labeled unswitched
hot to the unswitched voltage supply lead.
b. Connect the black luminaire lead labeled
switched hot to the switched supply lead.
c. Connect white luminaire lead to the neutral
supply lead (Hot 2 for 208/240V wiring).
d. Connect ground bare or green wire lead
to the supply ground lead.
STEP 2:
Turn on unswitched voltage supply to luminaire. Keep the switched
voltage supply to luminaire off.
STEP 3:
Connect the battery female connector to the male connector on the
emergency driver.
http://lighting.cree.com/warranty
LPN00855X0001A0_A
Document:
Created By:
TMT
UNSWITCHED HOT
*** NOTE: Do NOT mate male connector from the
emergency driver to the female connector from
the battery until AC power is supplied to unswitched
hot lead to luminaire
| 1-800-236-6800
04-21-2021
Date
LUMINAIRE
BARE OR
GREEN
GROUND
NEUTRAL
WHITE
OR HOT 2
WHITE
SWITCHED HOT
BLACK SWITCHED
BLACK
UNSWITCHED
*** MALE CONNECTOR
EB DRIVER
*** FEMALE CONNECTOR
EB BATTERY
