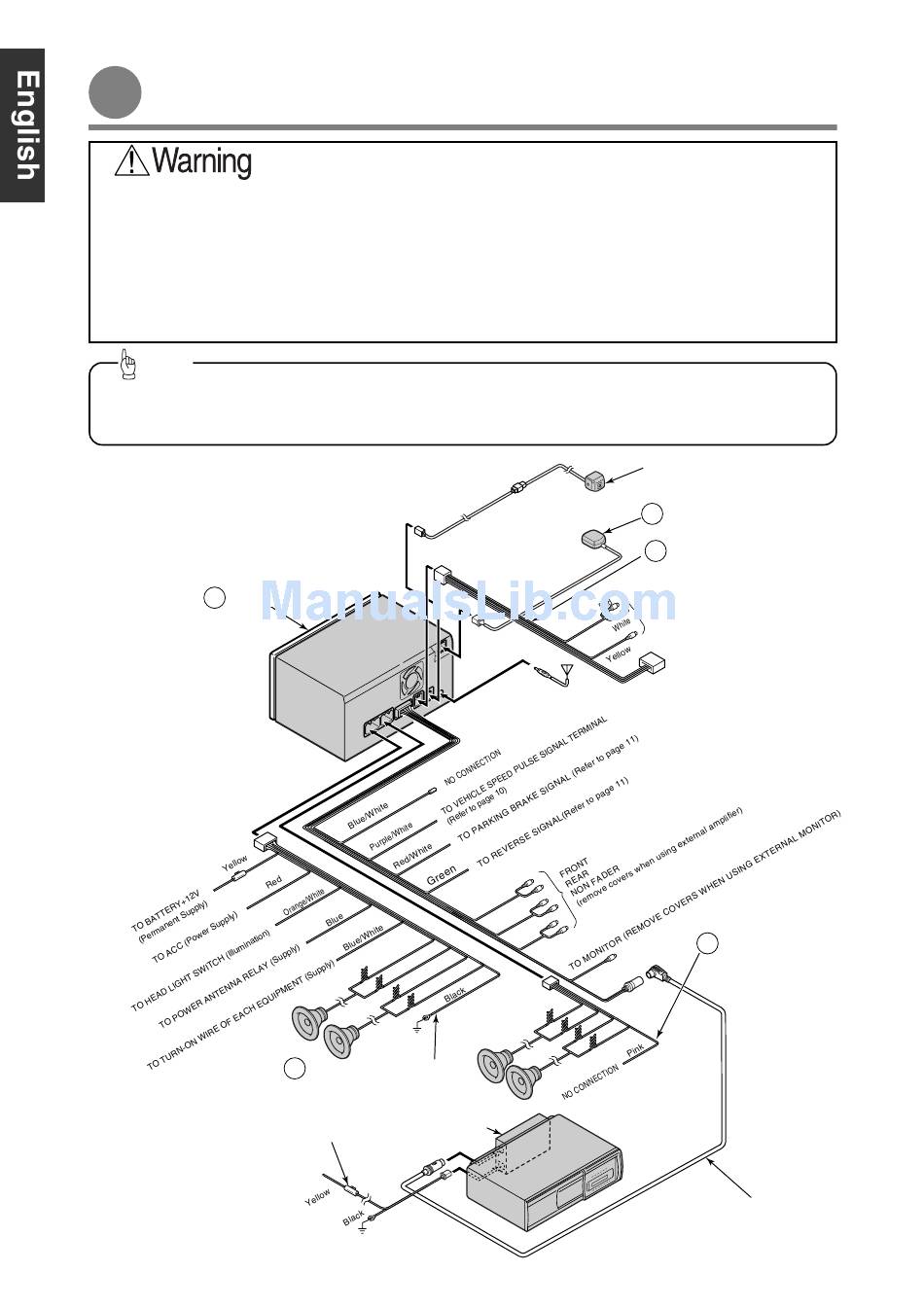

System connection e
System connection e
• • Never cut the insulation on the power wire or use it to power any other main unit. If the rated current
capacity of the power wire is exceeded, fire and electric shocks may result.
• • The wires should be secured with tape or a similar securing method to prevent any obstructions while
driving. If they get wound or entangled around components such as the steering wheel, shifting lever,
or brake pedal, accidents may result.
• • If removing the end of the wire to connect to another wire, be sure to wrap PVC tape or a similar wire
insulating method around the connection to insulate it. If the connection is not insulated, fire or
accidents may result.
Tip
• • Install and connect all of the peripheral units before connecting them to the main unit.
• • Do not remove any of the protective caps (RCA, etc.) unless in use.
• • Be sure to wrap the connection wires with tape (PVC tape) to insulate them.
1
MAIN UNIT
10P
FRONT
SPEAKERS
POWER CONNECTOR WIRE
(Supplied with CD changer)
TO BATTERY+12V(Permanent Supply)
4P
8P
TO GROUND
2
INTERCONNECTING WIRES
(Power and front speaker connector)
REAR
SPEAKERS
CH3083(sold separately)
13P
2P
TO GROUND
- 12 -
xample
xample
10
1P
ANTENNA PLUG
6P
BEC105
(sold separately)
GPS ANTENNA
4
INTERCONNECTING WIRES
(Video input Video input and steering
remote control connectorconnector)
FROM EXTERNAL
VIDEO MAIN UNIT
TO STEERING REMOTE CONTROL
3
INTERCONNECTING WIRES
(Rear speaker connector)
13P
DIN WIRE
(Supplied with CD changer)
