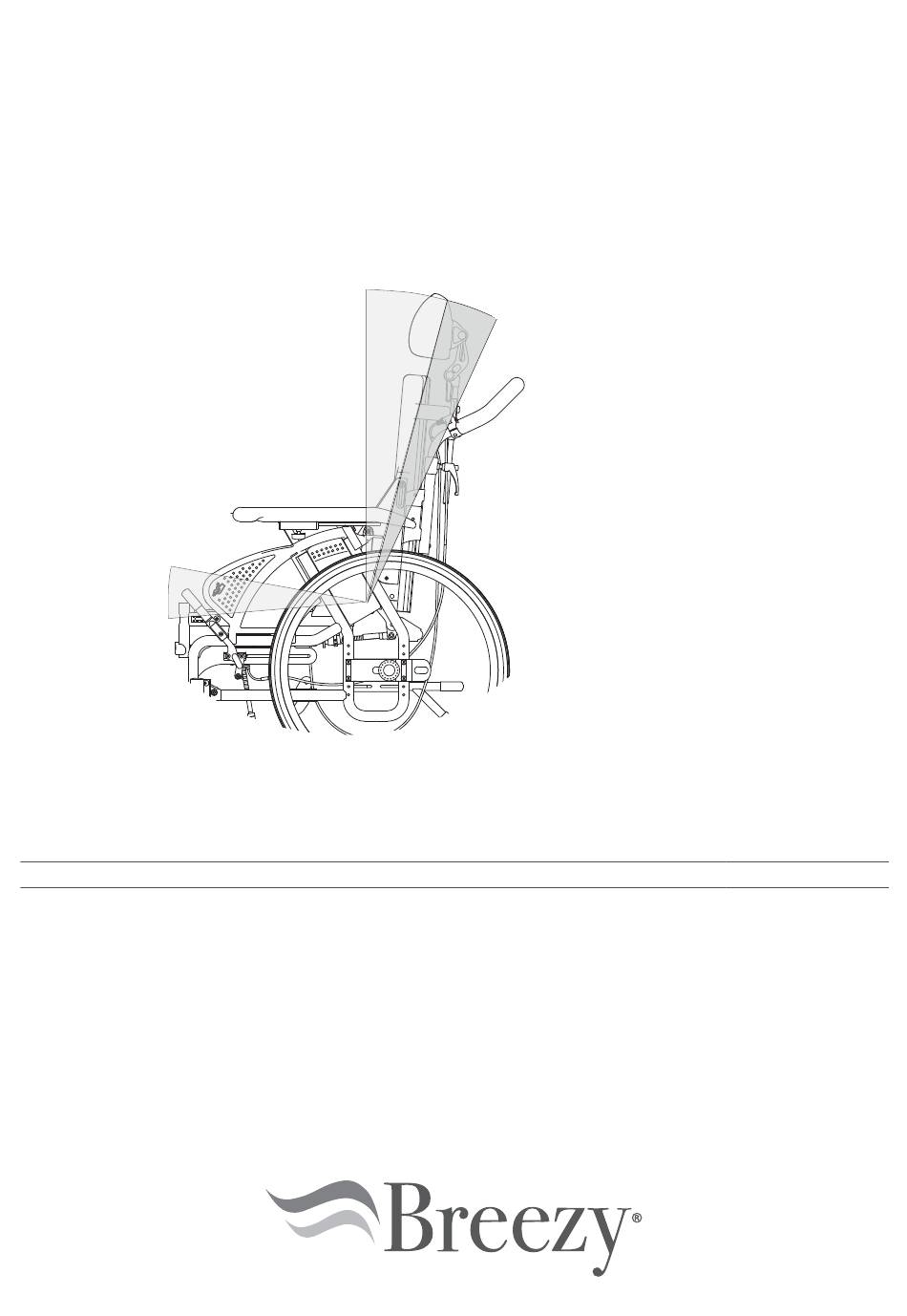

- Page 1 ASSEMBLY INSTRUCTION Electric back and seat tilt Elektrisk rygg og setetilt Description Article number Electric back and seat tilt Emineo / Elektrisk rygg- og setetilt Emineo 3019505 MD_MONT-083-EM-El-rygg-tilt_EU_EN_Rev. B_2016_05_15...
- Page 2 10 x 10 x Preparations – disassembling of adjustment Forberedelser - demontering av reguleringsmekanisme mechanism for seat tilt and back for rygg og tilt 1 Disassemble the seat plate by unscrewing the four 1 Demonter seteplata ved å skru ut de fire skruene screws (keep the screws).
- Page 5 5 Monter aktuator for sete 5 Assemble seat actuator 6 Monter aktuator for rygg 6 Assemble back actuator 7 Skru sammen festeplate og kontrollboks 7 Screw together fixation plate and control unit Plasser festeplate med kontrollboks på seterammen som vist i figuren (Kontrollboksen Place the jointed fixation plate and control festes til rammen når du skrur fast seteplata).
- Page 6 Charging procedure Ladeprosedyre Insert the charger plug in the hand control. Connect Sett ladepluggen i håndkontrollen. the charger to the power supply (230 V). The indicator Laderen kobles til strømnettet (230 V). Det lyser en on the charger shines green when the battery is fully grønn lampe på...
- Page 8 Sunrise Medical HCM B.V. Vossenbeemd 104 5705 CL Helmond The Netherlands T: +31 (0)492 593 888 customerservice@sunrisemedical.nl www.SunriseMedical.eu...
