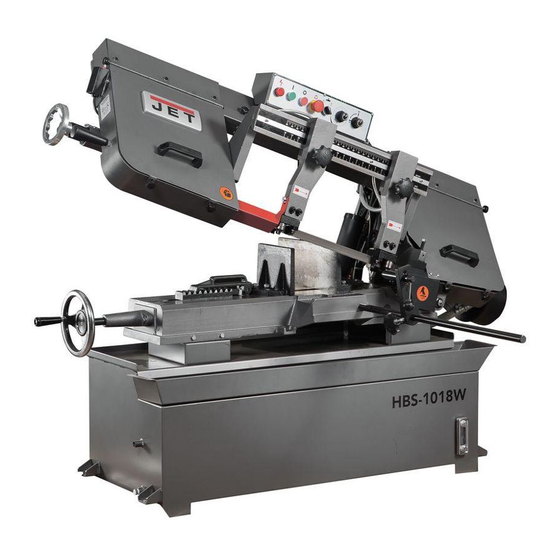

Jet Horizontal Bandsaw
BMW-1018w
Machine Purpose: Cut Metal and Plastics
Must wear safety glasses while operating machine.

Safety:

Keep. Beware of objects that dangle
and could get caught in cutting tool. Beware of flying metal chips. This machine has no built-in safety
system. Machine auto turns off at lowest height.
Materials: Metals, Plastics, Synthetic
Machine Specs: 10"x18" cutting capacity, 45 deg cut,
Limitations: NO WOOD,
NO SHEET
METAL,
NO MATERIAL UNDER
.5", no pipe
Accessories: Adjustable Depth Stop, Flood Coolant
Blade Dimensions: 1"x130"
Instruction Required: Cold Metals Basic Training
Cold Metals Lab
V1.0 11/7/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMW-1018w and is the answer not in the manual?

Questions and answers

Summary of Contents for Jet BMW-1018w

  • Page 1 Jet Horizontal Bandsaw BMW-1018w Machine Purpose: Cut Metal and Plastics Must wear safety glasses while operating machine. Safety: Keep. Beware of objects that dangle and could get caught in cutting tool. Beware of flying metal chips. This machine has no built-in safety system.
  • Page 2 Notes • Never hold a piece smaller then half the vice width in the jaws • If blade is skipping turn down the cutting pressure • Always adjust the blade speed relative to the material being cut • If blade tracking, tension, roller guides or changes are necessary please see shop tech for assistance Prechecks •...
  • Page 3 To adjust the vise for angle cutting: • Loosen bolts and move vise jaw ( C ) to desired location. • Set the vise to desired angle, re-install nuts and tighten the nut and bolt assemblies. • Adjust the movable vise parallel to the fixed vise by loosening bolt (D) adjusting to parallel, and re-tightening bolt.
