MODEL : FBKHFK-108A+FBKSRR-108A
+FBKDWR-108A
REVISION : A

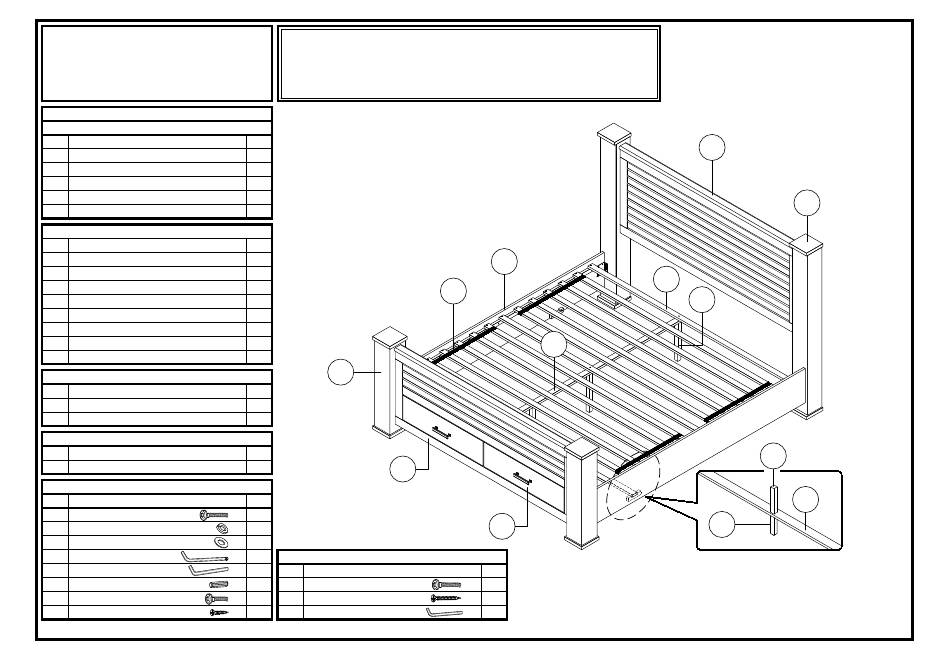

Component List
Headboard & Footboard
No
Descriptions
A
Headboard Panel
B
Footboard Panel
C
Headboard Back Cover
D
Footboard Back Cover
E
Slat Cover
Side Rail
No
Descriptions
F
Bed Rail
G
Drawer Slat
H
Drawer Slat Support
I
Drawer Slat Support Stopper
J
Bed Slat 3 Holes
K
Bed Slat 2 Holes
L
Bed Slat Support
M
Center Slat With 3 Holes
Leg
No
Descriptions
N
Headboard Leg Left and Right
P
Footboard Leg Left and Right
Drawer
No
Descriptions
Q
Drawer
Hardware List In Headboard & Footboard
No
Descriptions
1
JCBC Screw M6 x 35mm
2
Spring Washer Ø1/4"
3
Flat Washer Ø1/4" x 20mm
4
L Key M4 x 100mm
5
L Key M5
6
Wood Dowel 10mm x 30mm
7
JCBC Screw M6 x 16mm
8
CSK M4 x 16mm
A
SSEMBLY INSTRUCTION
ASSEMBLY TIPS :
1.
Remove hardware from box and sort by size.
2.
Please check to see that all hardware and parts are present prior to start of assembly.
3.
Please follow attached instructions in the same sequence as numbered to assure fast and
easy assembly.
Qty
1
1
1
1
1
Qty
2
1
1
1
3
10
3
1
P
Qty
2
2
Qty
B
2
Qty
12
12
28
1
Hardware List In Side Rail
1
No
Descriptions
8
9
JCBC Screw M6 x 50mm
16
10
CSK M4 x 32mm
6
11
L Key M4 x 65mm
S
F
K
M
Q
Qty
3
30
1
Page 1 of 6
A
N
J
L
I
G
H
Advertisement
Related Manuals for Acme Furniture FBKHFK-108A
Summary of Contents for Acme Furniture FBKHFK-108A
- Page 1 SSEMBLY INSTRUCTION ASSEMBLY TIPS : MODEL : FBKHFK-108A+FBKSRR-108A +FBKDWR-108A Remove hardware from box and sort by size. Please check to see that all hardware and parts are present prior to start of assembly. Please follow attached instructions in the same sequence as numbered to assure fast and REVISION : A easy assembly.
- Page 2 SSEMBLY INSTRUCTION STEP 1.1: Insert wood dowel (6) to the pre-drilled hole of headboard panel (A) / footboard panel (B). STEP 1.2: Push the headboard leg (N) / footboard leg (P) to fit with the wood dowel (6) at the headboard panel (A) / footboard panel (B). STEP 1.3: Attach the headboard leg (N) / footboard leg (P) by using JCBC Screw M6 x 35mm (1), springwasher (2) and flat washer (3) through the pre-drilled hole of headboard leg (N) / footboard leg (P) and tighten by using Allen key (4).
- Page 3 SSEMBLY INSTRUCTION STEP 2.1: Attach the bed rail (F) to headboard leg (N). STEP 2.2: Tighten screw on headboard leg (N) by using L key M5 (5) & repeat the same step on footboard leg (P). STEP 2.3: Attach the drawer slat (G) each to a drawer slat support (H) & fix with drawer slat support stopper (I). STEP 2.4: Fix the drawer slat (G) to bed rail (F) with CSK M4 x 32mm (10).
- Page 4 SSEMBLY INSTRUCTION STEP 3.1: Insert drawer (Q) to footboard (B) until completely closed. STEP 3.2: Tighten 'T' runner at footboard (B) to drawer slat (G) with CSK M4 x 16mm (8). STEP 3.3: If drawer (Q) does not close properly, adjust the adjuster at the bottom of drawer slat support (H) up or down until the drawer (Q) closes tightly. STEP 3.1 STEP 3.3 STEP 3.2...
- Page 5 SSEMBLY INSTRUCTION STEP 4.1: Attach the center slat (M), bed slat (J) to bed slat support (L).Tighten with JCBC M6 x 50mm (9) by using L key M4 (11). STEP 4.2: Attach bed slat (J) & bed slat (K) and tighten to bed rail (F) with CSK M4 x 32mm (10). STEP 4.2 Adjuster STEP 4.1...
- Page 6 SSEMBLY INSTRUCTION STEP 5.1: Insert the tip of slat cover (E) on the back of the footboard (B) until closely. STEP 5.2: Use CSK M4 x 16mm (8) to fasten the slat cover (E) on the bed slat (K). STEP 5.1 STEP 5.2 Page 6 of 6...
