ENFORCER Wave-to-Open Sensors FAQ
For CS-PD115-PAQ, CS-PD419-PQ, CS-PD422-PQ, and CS-PD438-PQ
Edited September 8, 2021

Pre-Sale Questions

What is the maximum amperage for a connected device?
Do not connect any device that will exceed 1A@30VDC.
The standby LED indicator default colors are red, changing to green when triggered. Can I change the
standby color to green, with red indicating triggered?

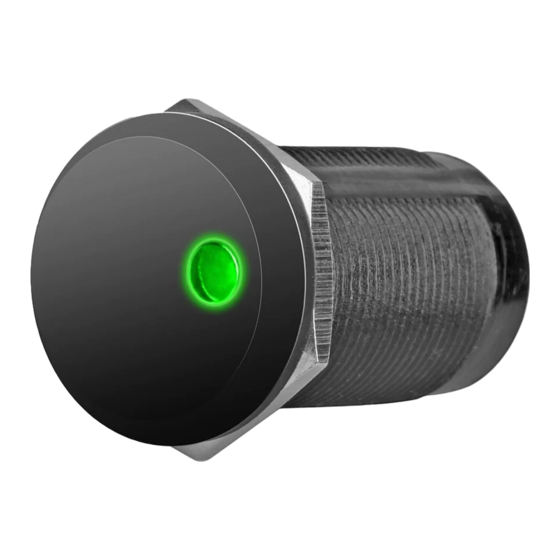

You cannot reverse the standby/triggered LED colors on the 19mm sensors (CS-PD115-PAQ, CS-PD419-PQ), but you
can on the larger sensors (CS-PD422-PQ, and CS-PD438-PQ).
To reverse the standby color on those models, move the jumper below the Output Duration and IR Range Trimpots. Place
the jumper on the right two pins to set the standby color to red and the triggered color to green (default). Place the jumper
on the left two pins to set the standby color to green and the triggered color to red.
Can I adjust the sensor's triggering range?
The default range is set to the maximum distance of 7" (18cm). To decrease the range, turn the IR Range Trimpot
counterclockwise until the desired range is attained. The minimum allowable range is 2" (5cm).
The trimpots are arranged horizontally below the terminal plug on the 19mm sensors (CS-PD115-PAQ, CS-PD419-PQ)
and the IR Range Trimpot is on the left.
The trimpots are arranged vertically above the terminal plug on the larger sensors (CS-PD422-PQ, and CS-PD438-PQ)
and the IR Range Trimpot is on the top.
NOTE: Do not force the trimpots. Only minimal force is needed to turn them.
Can I adjust the trigger duration?
The default trigger duration is set to the minimum of 0.8 seconds from the factory. To increase the duration, turn the
Output Duration Trimpot clockwise until the desired time is attained (up to 30 seconds). However, note that turning the
Output Duration to its maximum position will set the trigger to Toggle Mode (toggling between ON and OFF).
The trimpots are arranged horizontally below the terminal plug on the 19mm sensors (CS-PD115-PAQ, CS-PD419-PQ)
and the Output Duration Trimpot is on the right.
The trimpots are arranged vertically above the terminal plug on the larger sensors (CS-PD422-PQ, and CS-PD438-PQ)
and the Output Duration Trimpot is on the bottom.
NOTE: Do not force the trimpots. Only minimal force is needed to turn them.
Can I set the trigger to toggle ON/OFF?
Yes. To do so, simply adjust the output duration to the maximum setting using the Output Duration Trimpot.
The trimpots are arranged horizontally below the terminal plug on the 19mm sensors (CS-PD115-PAQ, CS-PD419-PQ)
and the Output Duration Trimpot is on the right.
The trimpots are arranged vertically above the terminal plug on the larger sensors (CS-PD422-PQ, and CS-PD438-PQ)
and the Output Duration Trimpot is on the bottom.
NOTE: Do not force the trimpots. Only minimal force is needed to turn them.
