Outdoor Wave-to-Open Sensors
Installation Manual
SD-9263-KSVQ
shown
Language
Slimline
English
SD-9163-KSQ
Spanish
SD-9163-KS1Q
French
SD-9163-KS2Q
English
SD-9163-KSVQ
w/ mechanical
override button
*
European plate versions are not ETL certified.

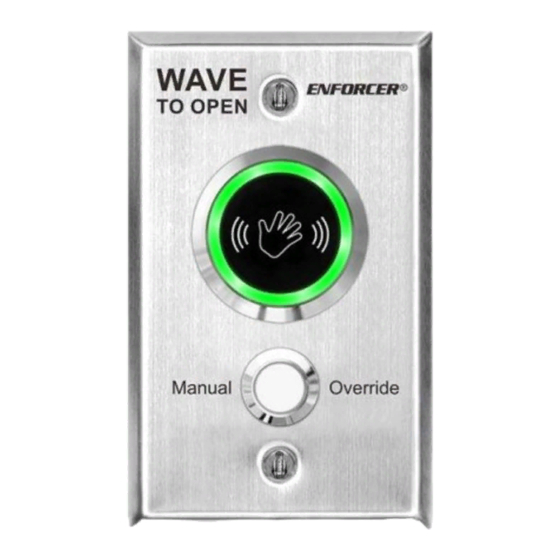

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate using IR technology to
allow egress from a protected area or activate a device with the simple wave of a hand. Since no
touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce
the risk of contamination), schools, factories, or offices.
Adjustable sensor range up to 7" (18cm)
1.2A relay, adjustable trigger duration 0.5~30 seconds or toggle
LED illuminated sensor are for easy identification
Selectable LED colors turns from red to green (or green to red) when the sensor is activated
Stainless steel plate
IP65 Weather-resistant for outdoor use
Power must be provided by low-voltage power-limited/Class 2 power supply
Use only low-voltage field wiring and do not exceed 98.5 ft (30m)
SD-9163-KSVQ
shown
Single-Gang
SD-9263-KSQ
SD-9263-KS1Q
SD-9263-KS2Q
SD-9263-KSVQ
†
Spanish and French faceplates also available for these models by special order.
SD-9463-KSVQ
shown
European Plate*
SD-9363-KSQ
SD-9363-KS1Q
SD-9363-KS2Q
SD-9363-KSVQ
†
*
5024193
Conforms to
UL294
Double-Gang
SD-9463-KSVQ
†
