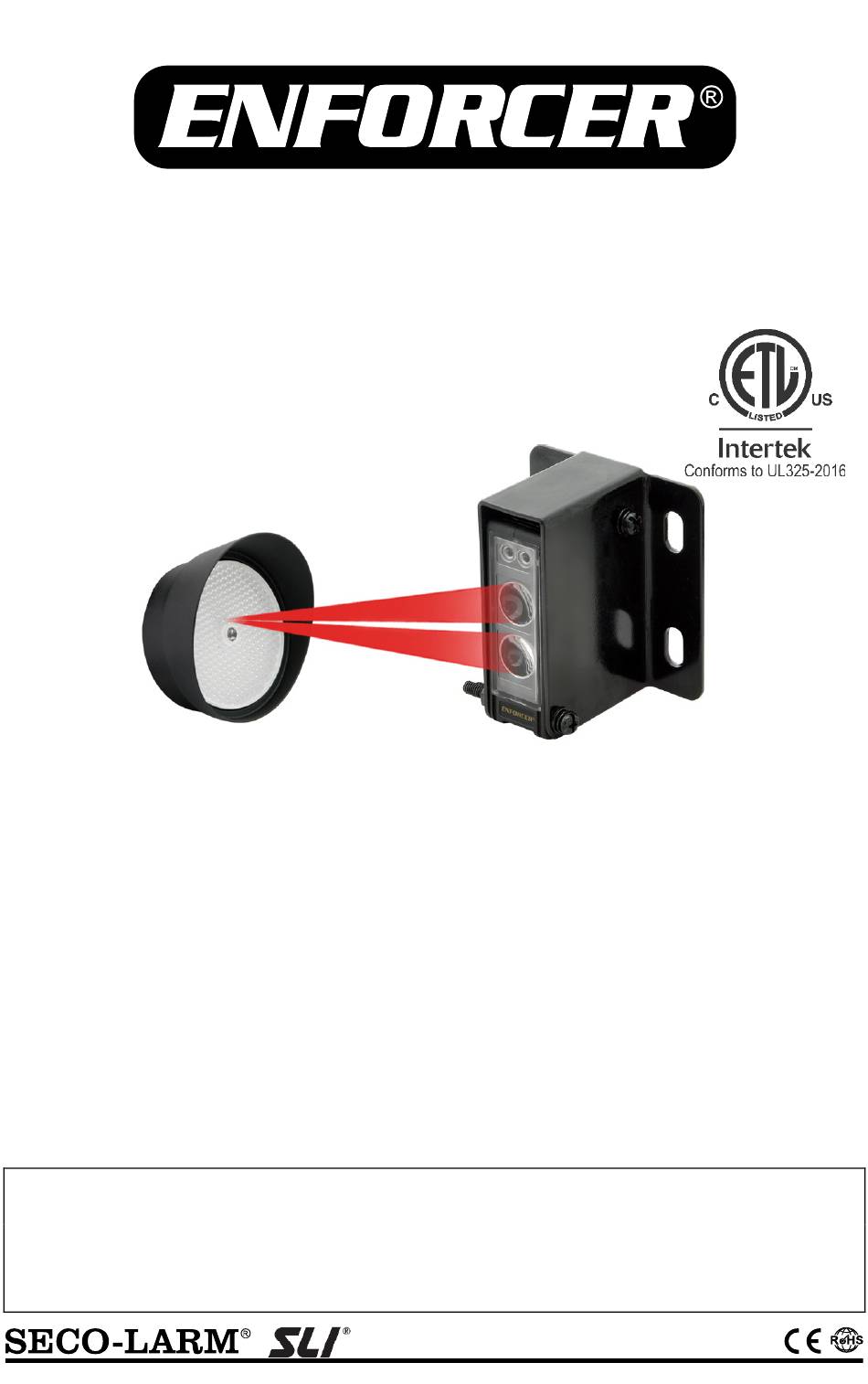

SECO-LARM SLI ENFORCER E-936-S45RRGQ Manual

Retro-reflective photoelectric beam sensor

Table of Contents

Download this manual

Retro-Reflective Photoelectric Beam Sensor

Features:

• Range 45 ft (14m)

• Weatherproof (IP66) construction for

indoor/outdoor usage

• Pre-wired 6-foot cord

• Bracket and mounting hardware included

for both sensor and reflector

• Adjustable sensing range

• Compact size

Caution:

• This sensor was not designed to prevent bodily injury or loss of life.

• This sensor was not designed for use in environments where explosive gasses may be present.

• Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM

is not responsible for compliance with such laws or codes.

E-936-S45RRGQ

Manual

• Sensor for garage doors or outdoor gates

• Entry detection for store fronts

• Assist in measuring parking distance

• Light on type

IMPORTANT: The E-936-S45RRGQ

conforms to UL325-2016 for gate operators

that use the N.C. or 10kΩ resistor for

monitoring.

Table of Contents

Do you have a question about the SLI ENFORCER E-936-S45RRGQ and is the answer not in the manual?

Page 1 • This sensor was not designed for use in environments where explosive gasses may be present. • Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not responsible for compliance with such laws or codes.
Page 2 Main Entrance Door Store Entrance Entry Gate Dimensions: Transmitter/Receiver Reflector ″ ″ (20.5mm) (39mm) ″ 2″ ″ (63mm) (51mm) (82mm) ENFORCER ® ″ ″ ″ (4.5mm) thru holes (29mm) (5mm) ″ (9mm) ″ (6mm) diameter ′ (2m) cable SECO-LARM U.S.A., Inc.
Page 3 The E-936-S45RRGQ will not work with gate for the sensing range. Open the top cover of the sensor as operators that monitor using the “heartbeat” shown in Fig. 2. method. SECO-LARM U.S.A., Inc.
Page 4 LARM product is warranted against defects in material and workmanship while used in normal service for 1 (one) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
