Wave-to-Open Sensors
Installation Manual
5024193
Conforms to
UL294
Model
SD-927PKC-NEQ
SD-927PKC-NEVQ
*Spanish and French faceplates also available.

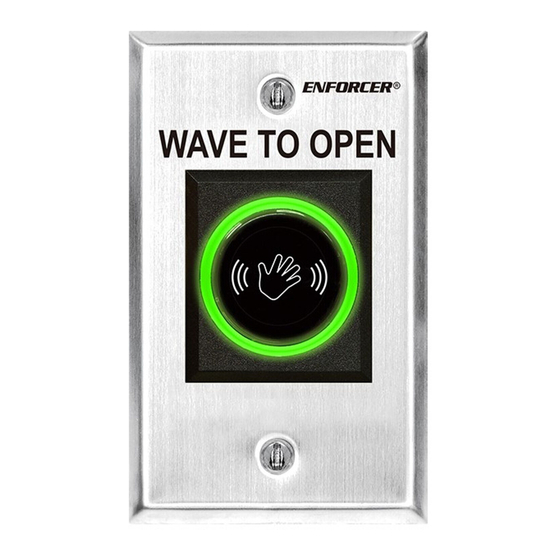

The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected
area or activate a device with the simple wave of a hand. Since no touch is required, they are
suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination),
schools, factories, or offices. The SD-927PKC-NEVQ adds a manual override button as a backup
to the sensor. Also available with Spanish (SD-927PKC-NSQ, SD-927PKC-NSVQ) or French
(SD-927PKC-NFQ, SD-927PKC-NFVQ) faceplates.
Operating voltage, 12~24 VAC/VDC
Range adjustable from 2
Stainless steel single-gang plate
3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
LED illuminated sensor area for easy identification
Selectable LED colors (turns from red to green or green to red) when activated
Quick connect screw-less terminal block
Power must be provided by low-voltage power-limited/Class 2 power supply
Use only low-voltage field wiring and do not exceed 98.5ft (30m)
Size
Single-gang
Single-gang
/
"~8" (6~20 cm)
3
8
SD-927PKC-NEQ
Operating Voltage
12~24 VAC/VDC
12~24 VAC/VDC
SD-927PKC-NEVQ
Override Button
No
Yes
Advertisement
Table of Contents
Related Manuals for SECO-LARM ENFORCER SD-927PKC-NEQ
Summary of Contents for SECO-LARM ENFORCER SD-927PKC-NEQ

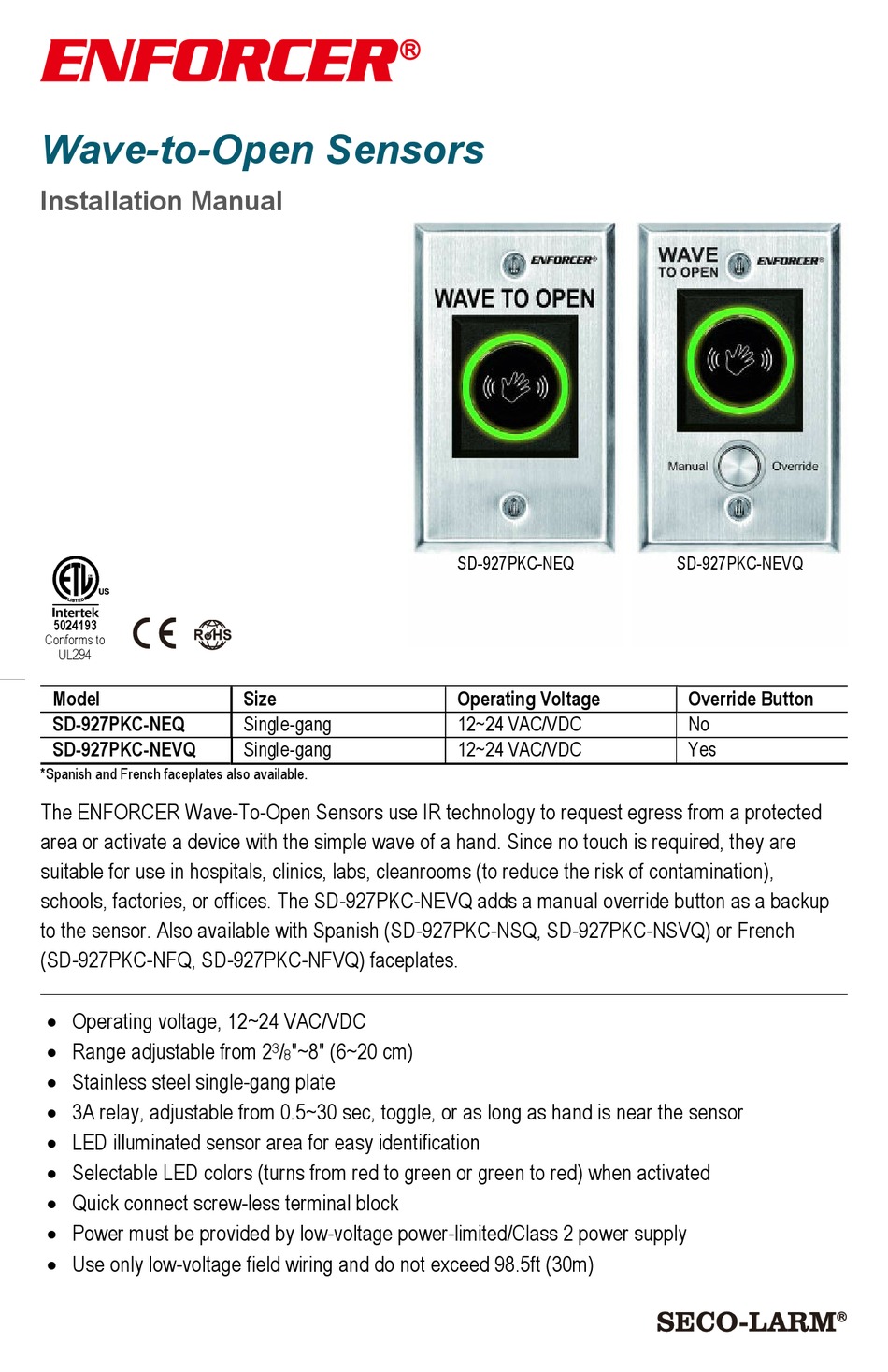

- Page 1 Wave-to-Open Sensors Installation Manual SD-927PKC-NEQ SD-927PKC-NEVQ 5024193 Conforms to UL294 Model Size Operating Voltage Override Button SD-927PKC-NEQ Single-gang 12~24 VAC/VDC SD-927PKC-NEVQ Single-gang 12~24 VAC/VDC *Spanish and French faceplates also available. The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand.
