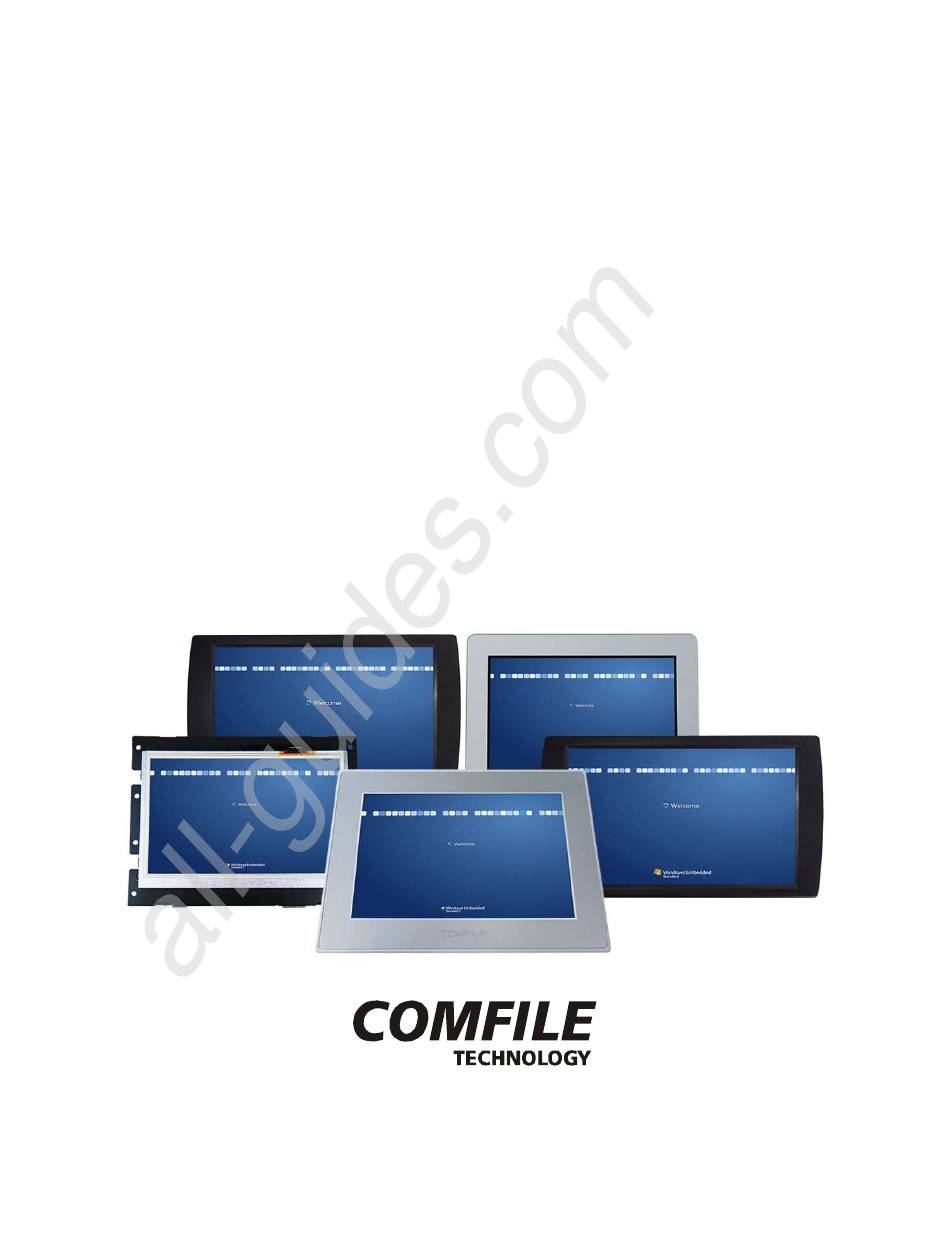

- Page 1 All manuals and user guides at all-guides.com CPCV5 Series Hardware Manual CPCV5-070WR/CPCV5-102BR/ CPCV5-102WR/CPCV5-101BR [ENGLISH] [Version 1.9] COMFILE Technology, Inc.
-
Page 2: Hardware Specification
25msec Brightness 400cd/m 350cd/m 250cd/m Viewing Angle 80/80/80/80 65/65/45/65 70/70/70/50 (R/L/T/B) Lifespan of Backlight >20,000hrs Touchscreen Type 4-Wire Resistive Touch Power Input Power DC+12V ~ DC+24V (Note 1) Power Consumption <15W(1.2A@DC12V) <17W(1.4A@DC12V) COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page... - Page 3 KC, CE, FCC Class A Note 1 : It is recommended to use the power adaptor(or SMPS) of the following specifications. Input : 100V~240V, 50Hz/60Hz, 1.5A Output : DC12V, 3A / DC24V, 1.5A COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
-
Page 4: External Parts
COM2 (RS232C, D-SUB 9Pin Male Type) The connector which can be linked to external switch. Ext. Power S/W Same function with ATX Power S/W. ATX Power S/W ATX mode power switch. Boot or exit the system. COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page... - Page 5 DVI output for external monitor. LAN2 Port Support Gigabit LAN, with RJ-45 type connector. LAN1 Port Support Gigabit LAN, with RJ-45 type connector. USB Port USB1/USB2 (USB2.0). DC INPUT ø2.5 Adaptor Input Connector COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
- Page 6 All manuals and user guides at all-guides.com CPCV5 Hardware Manual CPCV5 Manual 3. Dimensions [CPCV5-070WR] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
- Page 7 All manuals and user guides at all-guides.com CPCV5 Hardware Manual CPCV5 Manual [CPCV5-102BR] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
- Page 8 All manuals and user guides at all-guides.com CPCV5 Hardware Manual CPCV5 Manual [CPCV5-102WR] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
- Page 9 All manuals and user guides at all-guides.com CPCV5 Hardware Manual CPCV5 Manual [CPCV5-101BR] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
-
Page 10: Panel Cutout
Unit: mm[in.] Model Name 1.6 to 5.0 CPCV5-070WR [7.36] [4.88] [0.06 to 0.20] 1.6 to 5.0 CPCV5-102BR/ CPCV5-101BR [10.43] [5.98] [0.06 to 0.20] 1.6 to 5.0 CPCV5-102WR [10.71] [7.20] [0.06 to 0.20] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page... - Page 11 All manuals and user guides at all-guides.com CPCV5 Hardware Manual CPCV5 Manual Bezel Size & Installation ▌ [CPCV5-070WR] [CPCV5-102BR/CPCV5-101BR] [CPCV5-102WR] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
-
Page 12: Bracket Installation
4. Tighten the bolt against the panel to secure the CPCV5 to the panel. (Be careful not to tighten the bolts too tightly, or the CPCV5 could be damaged.) 5. Repeat steps 3 and 4 for each mounting bracket. [CPCV5-102BR/CPCV5-101BR] [CPCV5-070WR] COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page... -
Page 13: Input/Output Connectors
Name Name Name Name Name Name DATA- DATA+ *Notice : RS422/RS485 function is supported by COM1 Port only. User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1 COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page... - Page 14 All manuals and user guides at all-guides.com CPCV5 Hardware Manual CPCV5 Manual Power Input Connector ▌ * ø 2.5 Adaptor Jack COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
-
Page 15: Emi/Emc Certifications
► CPCV5-070WR: CPCV5-070WR KCC Registration No. : MSIP-REM-CUL-CPCV5-070WR ► CPCV5-102BR: CPCV5-102BR KCC Registration No. : MSIP-REM-CUL-CPCV5-102BR ► CPCV5-102WR: CPCV5-102WR KCC Registration No. : MSIP-REM-CUL-CPCV5-102WR ► CPCV5-101BR: CPCV5-101BR KCC Registration No. : MSIP-REM-CUL-CPCV5-101BR COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page... -
Page 16: Warranty Policy
14 Pidgeon Hill Drive, Suite 310, Sterling, VA 20165, U.S.A Telephone Toll-Free : (888) 9CUBLOC, (888) 928 2562 Office : (571) 322 5010 Fax : (571) 322 5011 Office Hours: Monday-Friday 9am-5:30pm EST E-mail Sales: sales@comfiletech.com Technical Support: support@comfiletech.com COMFILE Technology, Inc. www.comfiletech.com / www.comfile.co.kr • page...
