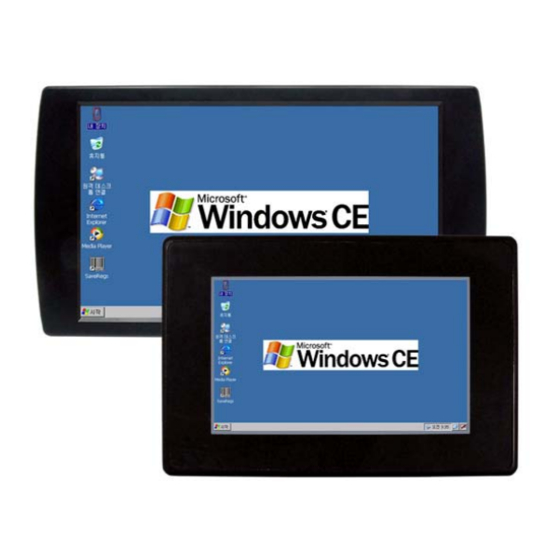

- Page 1 CUWIN V Series Hardware Manual CWV-070BR/CWV-070WR/CWV-102BR [Version 1.0] COMFILE Technology, Inc.
-
Page 2: Hardware Specification
Support external SD CARD (SD/SDHC) Input Power DC12V~DC24V Power <6W (0.5A@12V) <10W (0.8A@12V) Consumption MAX. Current 500mA 800mA Dimension (mm) 216(H)x120(V)x41(D) 222(H)x152(V)x56(D) 284(H)x163(V)x56(D) Weight 450g 650g 1040g Operating 0℃~70℃ Temperature The accuracy of the RTC depends on circumstances. COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 3: External Parts
CVW-070BR/CWV-070WR/CWV-102BR Hardware Manual CUWIN V Series 2. External Parts COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 4: Bracket Installation
Then tighten the screws enough to hold the CUWIN securely against the front panel. Do not over tighten, or you will risk damaging the CUWIN. COMFILE Technology, Inc. www.comfiletech.com • page... - Page 5 CVW-070BR/CWV-070WR/CWV-102BR Hardware Manual CUWIN V Series 4. Dimensions [CWV-070BR] Avoid using long bolts when assembling VESA mounts or add- on board. The inner maximum length is about 7mm. Back cover of product COMFILE Technology, Inc. www.comfiletech.com • page...
- Page 6 CVW-070BR/CWV-070WR/CWV-102BR Hardware Manual CUWIN V Series [CWV-070WR] Back cover of product Avoid using long bolts when assembling VESA mounts or add- on board. The inner maximum length is about 9mm. COMFILE Technology, Inc. www.comfiletech.com • page...
- Page 7 CVW-070BR/CWV-070WR/CWV-102BR Hardware Manual CUWIN V Series [CWV-102BR] Back cover of product Avoid using long bolts when assembling VESA mounts or add- on board. The inner maximum length is about 9mm. COMFILE Technology, Inc. www.comfiletech.com • page...
-
Page 8: Panel Cutout
X: Panel Cutout Width, Y: Panel Cutout Height, T: Panel Thickness Unit: mm[in.] CUWIN 1.6 to 6.0 CWV-070BR [7.88] [4.34] [0.06 to 0.24] 1.6 to 4.5 CWV-070WR [8.19] [5.48] [0.06 to 0.18] 1.6 to 5.0 CWV-102BR [10.44] [5.95] [0.06 to 0.20] COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 9: Input/Output Connectors
Name *D-SUB 9Pin Female ▌ RS485 Input/Output Connector (COM1_RS485) Connector Type Order Name ▌ COM1 Mode S/W RS485 Mode Sel. Order Term Res. N.C. -Bias N.C. +Bias N.C. COM1 Mode Sel. Order RS232C RS485 COMFILE Technology, Inc. www.comfiletech.com • page... - Page 10 NAND Boot Reserved Auto Run Mode Boot Mode Boot Loader Mode Development Mode Reserved Reserved Reserved * Boot Device Selection S/W must be turned OFF for normal booting. ▌ Power Input Connector Power DC_IN(+) COMFILE Technology, Inc. www.comfiletech.com • page...
-
Page 11: Emi/Emc Certifications
CVW-070BR/CWV-070WR/CWV-102BR Hardware Manual CUWIN V Series 7. EMI/EMC Certifications - TBD COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 12: Warranty Policy
Contact Information Should you need any additional information or assistance about CUWIN V Series, please feel free to contact us. Comfile Technology Inc. Telephone...
