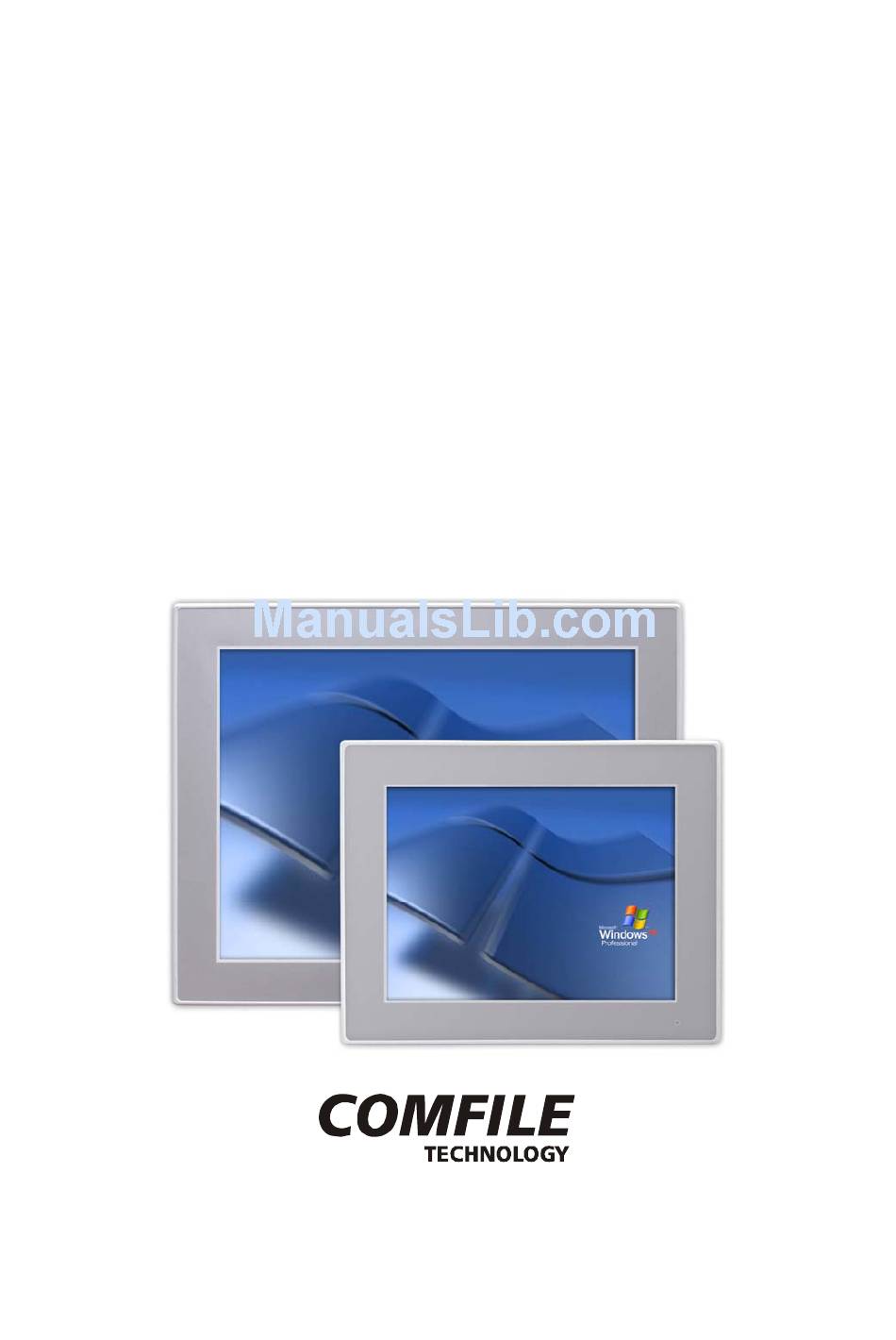

- Page 1 CUPC Hardware Manual (P200, P220) [Version 2.0] COMFILE Technology, Inc.
-
Page 2: Hardware Specification
CUPC-P200/P220 Hardware Manual CUPC manual 1. Hardware Specification Model name Item CUPC-P200 CUPC-P220 Intel ATOM N270 1.6GHz Chipset Intel 945GSE + ICH7M 2GB SODIMM DDR2 SDRAM Memory Intel 945GSE Embedded Graphics Graphic & Display Support VGA CRT output Support Pivot 15inch 10.4inch... -
Page 3: External Parts
CUPC-P200/P220 Hardware Manual CUPC manual 2. External Parts Name Description The green LED is turned on, when the power is supplied. Power/HDD LED The red LED is turned on, when the hard disk is read or written. ATX Power S/W ATX mode power switch. - Page 4 CUPC-P200/P220 Hardware Manual CUPC manual 3. Dimensions [CUPC-P200] Avoid using long bolts when assembling VESA mounts or add-on board. The inner maximum length is about 12mm. Back cover of product • page 4 www.comfiletech.com COMFILE Technology, Inc.
- Page 5 CUPC-P200/P220 Hardware Manual CUPC manual [CUPC-P220] Avoid using long bolts when assembling VESA mounts or add-on board. The inner maximum length is about 10mm. Back cover of product • page 5 www.comfiletech.com COMFILE Technology, Inc.
- Page 6 CUPC-P200/P220 Hardware Manual CUPC manual 4. PANEL CUTOUT Installation Requirements ▌ CUPC-P200/P220 Installation ▌ X: Panel Cutout Width, Y: Panel Cutout Height, T: Panel Thickness Unit: mm[in.] CUPC 1.6 to 12.0 P200 [13.98] [10.99] [0.06 to 0.47] 1.6 to 6.0 P220 [10.36]...
-
Page 7: Bracket Installation
CUPC manual 5. Bracket Installation CUPC-P200 ▌ To fasten CUPC-P200 to an upright panel, the brackets (left, right) are supplied when you purchase P200. * Procedure * 1) Push and install the CUPC-P200 into your panel. 2) Press the bracket as the following directions in two steps. - Page 8 CUPC-P200/P220 Hardware Manual CUPC manual CUPC-P220 ▌ To fasten CUPC-P220 to an upright panel, the brackets (left 2ea, right 2ea) are supplied when you purchase P220. * Procedure * 1) Push and install the CUPC-P220 into your panel. 2) Press the bracket as the following directions in two steps.
-
Page 9: Input/Output Connectors
CUPC-P200/P220 Hardware Manual CUPC manual 6. Input/Output Connectors VGA Output Connector ▌ Connector Type * D-SUB 15Pin Female Pin Assignment Order Name Order Name GREEN BLUE DDC VCC (+5V) DDC DATA HSYNC VSYNC DDC CLK RS232C Input/Output Connector (COM1, COM2) ▌... - Page 10 CUPC-P200/P220 Hardware Manual CUPC manual Power Input Connector ▌ * ø 2.5 Adaptor Jack • page 10 www.comfiletech.com COMFILE Technology, Inc.
-
Page 11: Warranty Policy
CUPC-P200/P220 Hardware Manual CUPC manual 7. Warranty Policy ▌ Warranty Period The products are warranted to be free of defects in materials and workmanship for 1 year from the date of purchase. ▌ Warranty Exclusions The warranty does not cover abrasion and is considered void if the product is opened by unauthorized person, damaged by abnormal use, heat or humidity, or used against user manual. - Page 12 CUPC Hardware Manual (P200, P220) Contact Information Should you need any additional information or assistance about CUPC, please feel free to contact us. Comfile Technology Inc. 1175 Chess Dr., Suite F, FOSTER CITY, CA 94404, U.S.A Telephone Toll-Free : (888) 9CUBLOC, (888) 928 2562...
