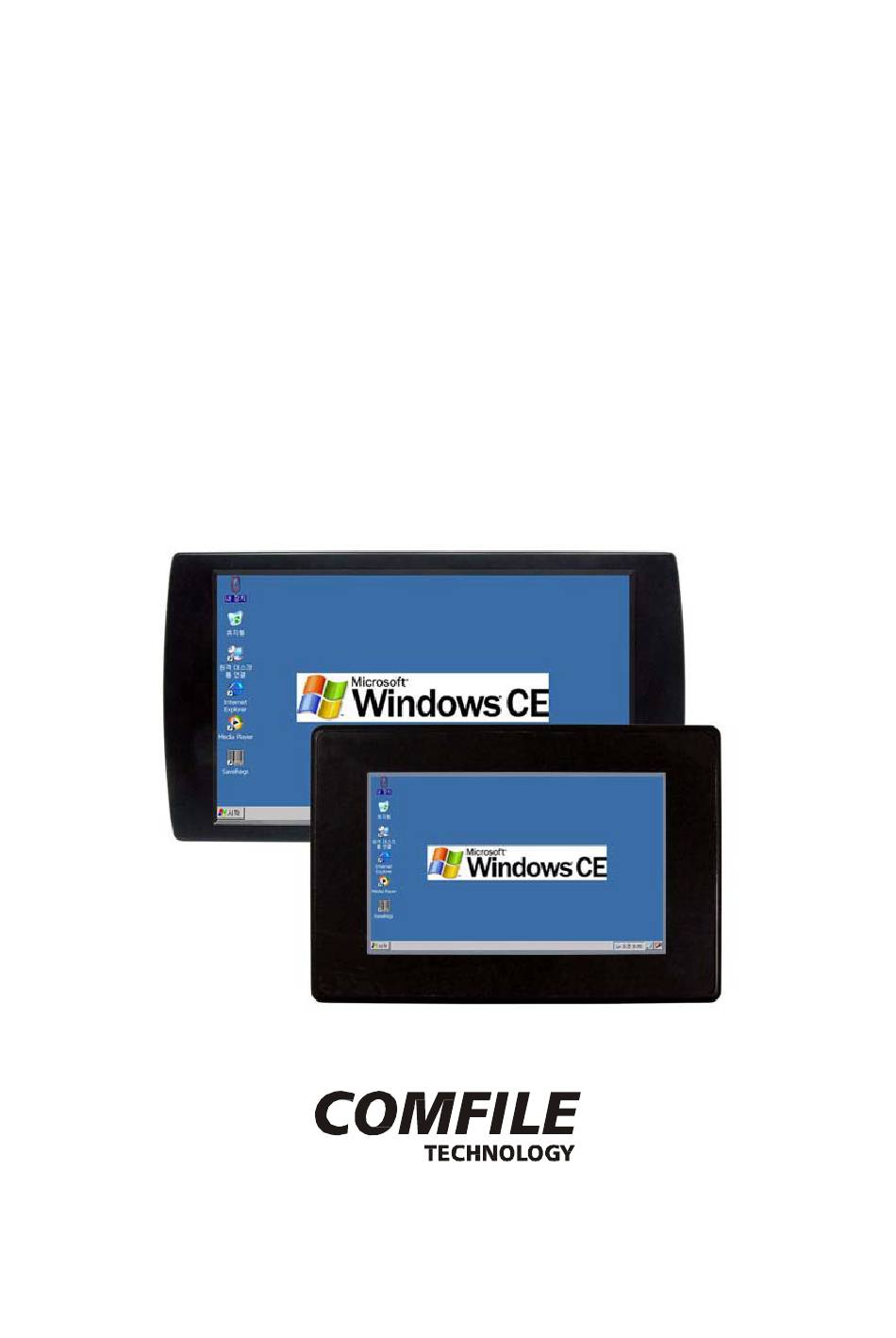

- Page 1 CUWIN V2 Series Hardware Manual CWV2-070BR/CWV2-070WR/CWV2-102BR [Version 1.1] COMFILE Technology, Inc.
-
Page 2: Hardware Specification
DC12V~DC24V Power <6W (0.5A@12V) <10W (0.8A@12V) Consumption MAX. Current 500mA 800mA Dimension (mm) 216(H)x120(V)x41(D) 222(H)x152(V)x56(D) 284(H)x163(V)x56(D) Weight 450g 650g 1040g Operating 0℃~70℃ Temperature Storage -30℃~80℃ Temperature The accuracy of the RTC depends on circumstances. COMFILE Technology, Inc. www.comfiletech.com • page... - Page 3 CVW2-070BR/CWV2-070WR/CWV2-102BR Hardware Manual COMFILE CUWIN V2 Series TECHNOLOGY 2. External Parts mmmmmmm mmr flo1 G--. A---- '----c COMFILE Technology, Inc. www.comfiletech.com • page...
- Page 4 USB Host Port (USB A Type Connector) USB_DEVICE USB OTG Port (USB mini AB Type Connector) SD Card Connector SD Card slot Stereo Audio Output Port (φ3.5) Audio Out Boot Mode S/W DIP Switch for selecting Boot mode COMFILE Technology, Inc. www.comfiletech.com • page...
- Page 5 <D ..28.9 31.2 155.4 31.2 40.4 Unit: "'<D <» -'--++Htt-HJ-ffi Avoid using long bolts when assembling VESA mounts or add- board. The inner maximum length is about 7mm. Back cover of product COMFILE Technology, Inc. www.comfiletech.com • page...
- Page 6 CVW2-070BR/CWV2-070WR/CWV2-102BR Hardware Manual CUWIN V2 Series [CWV2-070WR] Back cover of product Avoid using long bolts when assembling VESA mounts or add- on board. The inner maximum length is about 9mm. COMFILE Technology, Inc. www.comfiletech.com • page...
- Page 7 CVW2-070BR/CWV2-070WR/CWV2-102BR Hardware Manual CUWIN V2 Series [CWV2-102BR] Back cover of product Avoid using long bolts when assembling VESA mounts or add- on board. The inner maximum length is about 9mm. COMFILE Technology, Inc. www.comfiletech.com • page...
-
Page 8: Panel Cutout
X: Panel Cutout Width, Y: Panel Cutout Height, T: Panel Thickness Unit: mm[in.] CUWIN 1.6 to 6.0 CWV2-070BR [7.88] [4.34] [0.06 to 0.24] 1.6 to 4.5 CWV2-070WR [8.19] [5.48] [0.06 to 0.18] 1.6 to 5.0 CWV2-102BR [10.44] [5.95] [0.06 to 0.20] COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 9: Bracket Installation
4. Tighten the bolt against the panel to secure the CWV2-070BR/CWV2-070WR/CWV2- 102BR to the panel.(Be careful not to tighten the bolts too tightly, or the CWV2- 070BR/CWV2-070WR/CWV2-102BR could be damaged.) [CWV2-070BR] [CWV2-070WR, CWV2-102BR] 5. Repeat steps 3 and 4 for each mounting bracket. COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 10: Input/Output Connectors
Name *D-SUB 9Pin Female ▌ RS485 Input/Output Connector (COM1_RS485) Connector Type Order Name ▌ COM1 Mode S/W RS485 Mode Sel. Order Term Res. N.C. -Bias N.C. +Bias N.C. COM1 Mode Sel. Order RS232C RS485 COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 11: Power Input Connector
Boot Reserved Auto Run Mode Boot Mode Boot Loader Mode Development Mode Reserved Reserved Reserved * Boot Device Selection S/W must be turned OFF for normal booting. ▌ Power Input Connector Power DC_IN(+) COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 12: Emi/Emc Certifications
CVW2-070BR/CWV2-070WR/CWV2-102BR Hardware Manual CUWIN V2 Series 7. EMI/EMC Certifications ► CWV2-070BR: KCC Registration No. : MSIP-REM-CUL-CWV2-070BR ► CWV2-070WR: KCC Registration No. : MSIP-REM-CUL-CWV2-070WR ► CWV2-102BR: COMFILE Technology, Inc. www.comfiletech.com • page... -
Page 13: Warranty Policy
Saelig Company, Inc. 71 Perinton Parkway, Fairport, NY, 14450, U.S.A Telephone Toll-Free : (888) 7SAELIG, (888) 772-3544 Office : (585) 385-1750 Fax : (585) 385-1768 Office Hours: Monday-Friday 9am-5:30pm EST E-mail Sales: sales@saelig.com Technical Support: support@saelig.com COMFILE Technology, Inc. www.comfiletech.com • page...
