W3DZZ+5 Drahtantenne 10-80m, 1000 Watt
Amateur Antenna W3DZZ+5 for short-wave bands 10, 15, 20, 40, 80 m
Antenna wire
Trap
Balun
Brass wire
PL-259 connector (better suited for soldering)
Block
Package
Instruction manual
Operating frequencies (for SWR), less than 2
10 m
15 m
20 m
40 m
80 m
Impedance
Connector type
Max. power input
Antenna length
Antenna weight
Polarization
The attempts to introduce the three-band dipole W3DZZ+3 into the European market led to an interesting
acquaintance with a new design of an old antenna which additionally had 21 and 28 MHz. That design was
suggested by a well-known Finnish radio amateur Jukka Heikinheimo OH2BR who further got to know about the
modification from his friend OH2EC.
The new antenna is shown in the figure below. Its differences from the predecessor are as follows:
•
The antenna is powered through a 1/4 wave transformer with the resistance of 75 Ohm, which improves
matching at 14 MHz without considerable decreases in other bands;
•
Two hanging whiskers at last made it possible to "start" the antenna in the band of 21 MHz with an
excellent standing wave ratio;
•
The selection of LC elements in the antenna traps are optimized for a successful compromise of
WiMo Antennen und Elektronik GmbH
Am Gäxwald 14, D-76863 Herxheim Tel. (07276) 96680 FAX 9668-11
http://www.wimo.com
11376
Best. Nr:

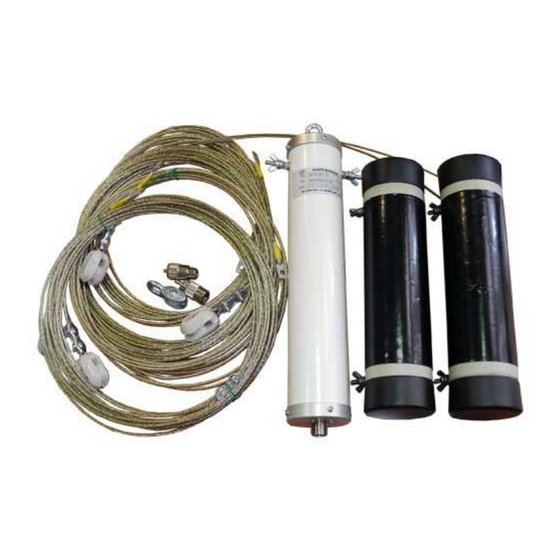

1. Antenna delivery package.
2. Antenna specifications.
28–29.5 MHz
21.0–21.32 MHz
14.0–14.35 MHz
7.0–7.2 MHz
3.5–3.8 MHz
50 Ohm
SO-239
1000 W (SSB, CW)
36 m
2.35 kg
horizontal
3. W3DZZ+5 antenna description.
resonances 80 m and 20 m band.
4 pcs.
2 pcs.
1 pcs.
2 pcs.
2 pcs.
1 pcs.
1 pcs.
1 pcs.
e-mail: info@wimo.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WiMo W3DZZ+5
Summary of Contents for WiMo W3DZZ+5

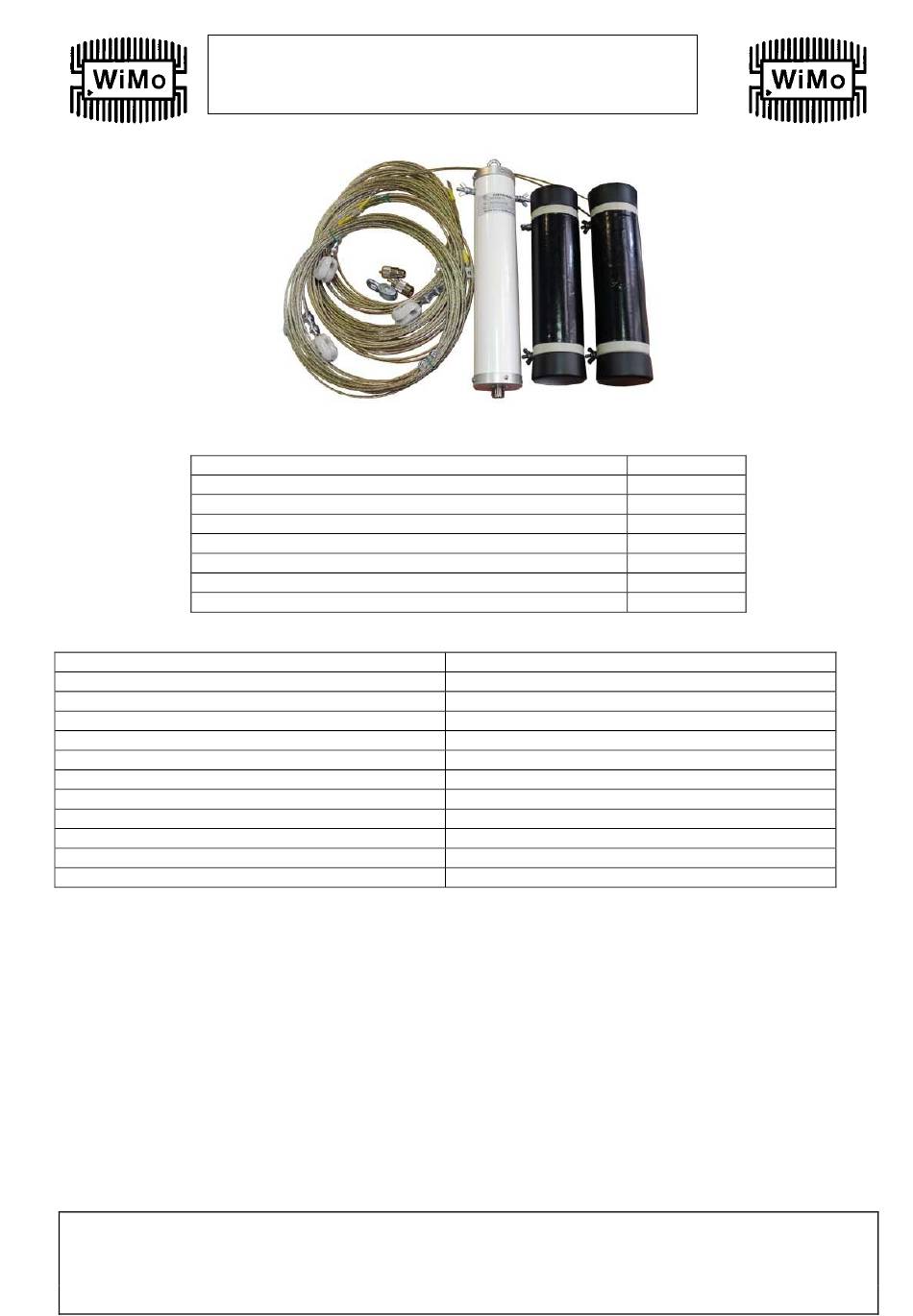

- Page 1 W3DZZ+5 Drahtantenne 10-80m, 1000 Watt 11376 Best. Nr: Amateur Antenna W3DZZ+5 for short-wave bands 10, 15, 20, 40, 80 m 1. Antenna delivery package. Antenna wire 4 pcs. Trap 2 pcs. Balun 1 pcs. Brass wire 2 pcs. PL-259 connector (better suited for soldering) 2 pcs.
- Page 2 W3DZZ+5 Drahtantenne 10-80m, 1000 Watt 11376 Best. Nr: 4. Electrical circuit and antenna operation diagrams. balance unit/transformer (balun) block isolator isolator trap trap load antenna wire capacitive loads PL-259 connectors 5. Design. Trap design Trap is made under traditional scheme. It is a parallel circuit which consists of inductance coil on the plastic mandrel with insulated wire and the cable capacitor with the breakdown voltage of 3 kV.
- Page 3 W3DZZ+5 Drahtantenne 10-80m, 1000 Watt 11376 Best. Nr: style; such positioning is beneficial for doing DX long distance QSO. • It is not recommended to strengthen the curtain hard to avoid breaking the antenna during heavy winds or extreme changes in temperature i.e. ice coating. You can prevent this by applying our whirl block and select a suitable load to hang the antenna in a sliding position.
- Page 4 W3DZZ+5 Drahtantenne 10-80m, 1000 Watt 11376 Best. Nr: 11. Claims information. 11.1. In case of failure of parts, components, or the whole equipment during the warranty period, the manufacturer replaces them only on the basis of claim report, prepared in the presence of the manufacturer's representative. A unilateral act is effective only if the manufacturer reported refusal to send a representative.
