Camtree G-51 Assembly Manual

Gripper campod suction car mount

Hide thumbs Also See for G-51:

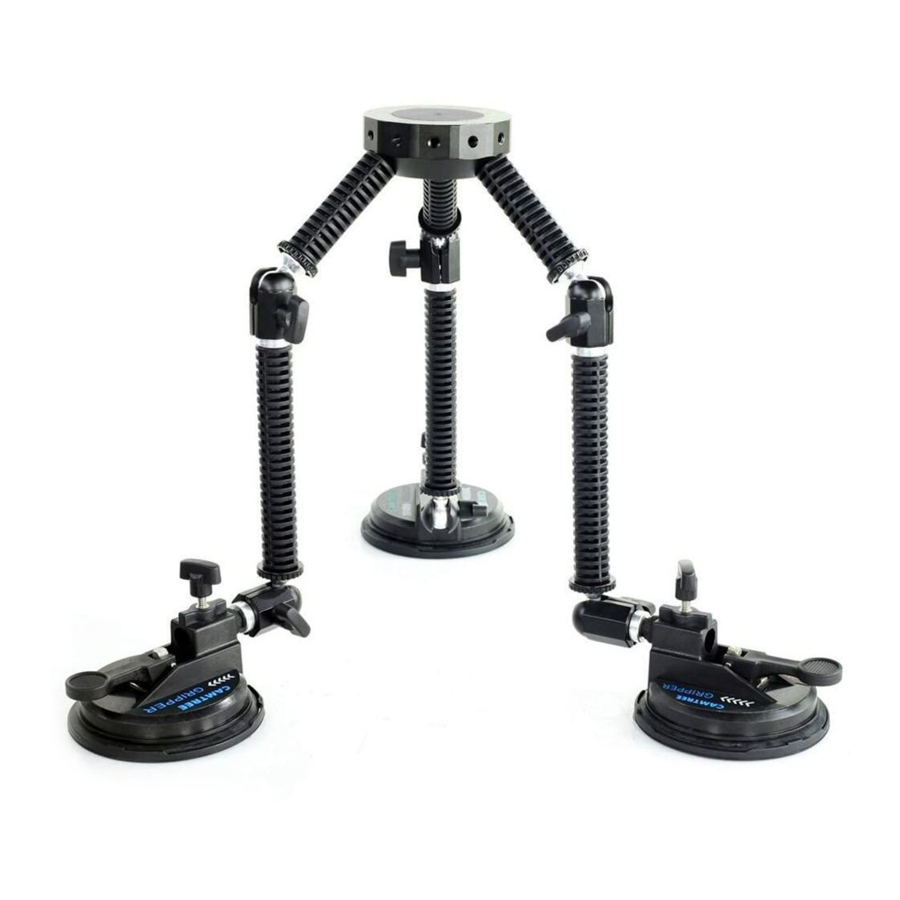

Gripper Campod Suction Car Mount (G-51)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

3 x Shanks for

Camera Mount

3 x 3'' Extension

2 x Ratchet/

Gripper Cups

6 x 6" Extension

Safety Wires

Hub

Rods

6 x Ball Tilt Heads

5 x Knob

3 x Gripper Suction Cups

Complimentary Dust

Cover

2 x C Hooks

2 x Bolts

2 x Round

2 x Allen Key

2 x Washer

Hooks

Bag Packing

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the G-51 and is the answer not in the manual?

Page 1 Gripper Campod Suction Car Mount (G-51) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Note: While ﬁtting your G-51 and choosing which holes to use in the hub, keep in mind the relationship between the surface you are using to mount G-51 and the position of camera. This will help you to choose correct hub holes.
Page 3 Insert one end of both safety wires into round hooks. NOTE: Although G-51 Gripper’s holding force is adequate for regular driving shots, safety wires must be used for additional security. When mounted on cars, the objects attached to the Gripper (e.g. camera, etc.) have to be secured additionally and also to avoid vibrations, especially on thin metal sheets.
Page 4 YOUR CAMTREE GRIPPER CAMPOD SUCTION CAR MOUNT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
