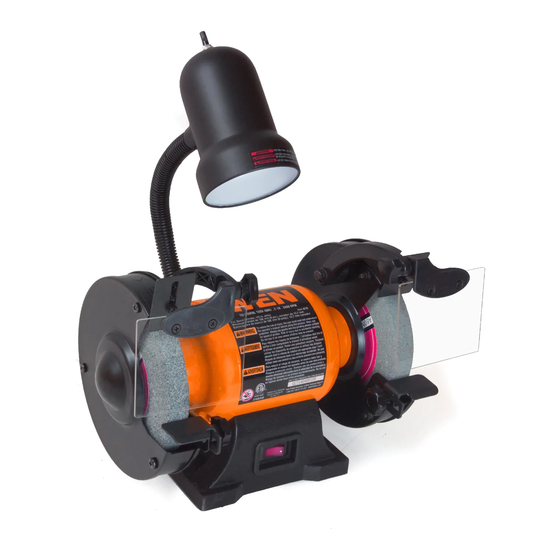

MODEL 4276, BG4276
6-INCH
BENCH GRINDER
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4276 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 4276

Summary of Contents for Wen 4276

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Bench Grinder Safety Warnings ............... 6 Electrical Information ..................8 BEFORE OPERATING Unpacking & Packing List .................9 Know Your Bench Grinder ................10 Assembly & Adjustments ................11 OPERATION &...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Bench Grinder. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Bench Grinder Safety Warnings

    BENCH GRINDER SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. BENCH GRINDER SAFETY 3. DO NOT wear loose clothing or jewelry as they might 1. This bench grinder is designed for sharpening and get drawn in by the tool.
  • Page 7 BENCH GRINDER SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. DURING OPERATION (CONT.) 9. Disconnect the power source and allow the wheels to 4. Keep clear of moving parts. Keep arms, hands and come to a complete stop before making any adjustments other vital appendages away from the grinding and hon- to either the machine or the grinding wheels.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 9: Before Operating

    UNPACKING & PACKING LIST WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury. UNPACKING With the help of a friend or trustworthy foe, carefully remove the Bench Grinder from the packaging. Make sure to take out all contents and accessories.

  • Page 10: Know Your Bench Grinder

    TOOL PURPOSE Sharpen bits, drill bits, chisels, gouges, and other cutting tools all with your WEN Bench Grinder. Refer to the fol- lowing diagrams to become familiarized with all the parts and controls of your bench grinder. The components will be referred to later in the manual for assembly and operation instructions.

  • Page 11: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING! To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a source of power during unpacking and assembly. This cord must remain unplugged whenever you are adjusting/ assembling the grinder. TOOL REST ASSEMBLY Fig.

  • Page 12: Operation & Maintenance

    NOTE: This bench grinder is compatible with the WEN 4288 Cast Iron Bench Grinder Pedestal Stand. 1. Prepare 1/4 in. bolts, flat washers, lock washers and hex nuts (not included). The bolt length should be 1-1/2 in.

  • Page 13: Maintenance

    OPERATION CAUTION! Prolonged grinding will cause most materials to become hot. Use care when handling such ma- terials. SHARPENING SCISSORS If possible, take the scissors apart to make the sharpening operation easier and safer. Remove material only from the outside surface and work from the heavy end of the blade toward the tip. SHARPENING KNIVES Remove metal from both faces of most knives, working from the heavy end of the blade toward the tip.
  • Page 14 MAINTENANCE 5. If you must replace a wheel be sure to obtain one with a safe rated speed at least as high as the “NO LOAD” RPM marked on your grinder’s nameplate. Replacement wheels must have a 6 inch diameter, a matching arbor size and should be a maximum of 3/4 inch wide.
  • Page 15 MAINTENANCE Fig. 15 Fig. 4 Grinding Wheel Wheel Cover Inner Flange Arbor Hex Nut Outer Flange E - Grinding wheel A - Screw B - Wheel guard cover F - Flange nut C - Wheel nut G - Inner flange D - Outer flange H - Spindle shaft...

  • Page 16: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST Part No. Description QTY. Part No. Description QTY. 4276-001 Bolt 4276-026 Switch 4276-002 Spring Washer 4276-027 Switch Plate 4276-003 Flat Washer 4276-028 Fastener Assembly 4276-004 Left Eyeshield Bracket 4276-029 Bottom Plate 4276-005 Left Eyeshield 4276-030...
  • Page 17 EXPLODED VIEW & PARTS LIST...

  • Page 18: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 19 NOTES...
  • Page 20 THANKS FOR REMEMBERING V. 2021.06.15...
