Your new tool has been engineered and manufactured to WEN's highest standards for easy
operation, dependability and maximum user safety. When properly cared for, this product will
supply rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings
and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe,
reliable service.

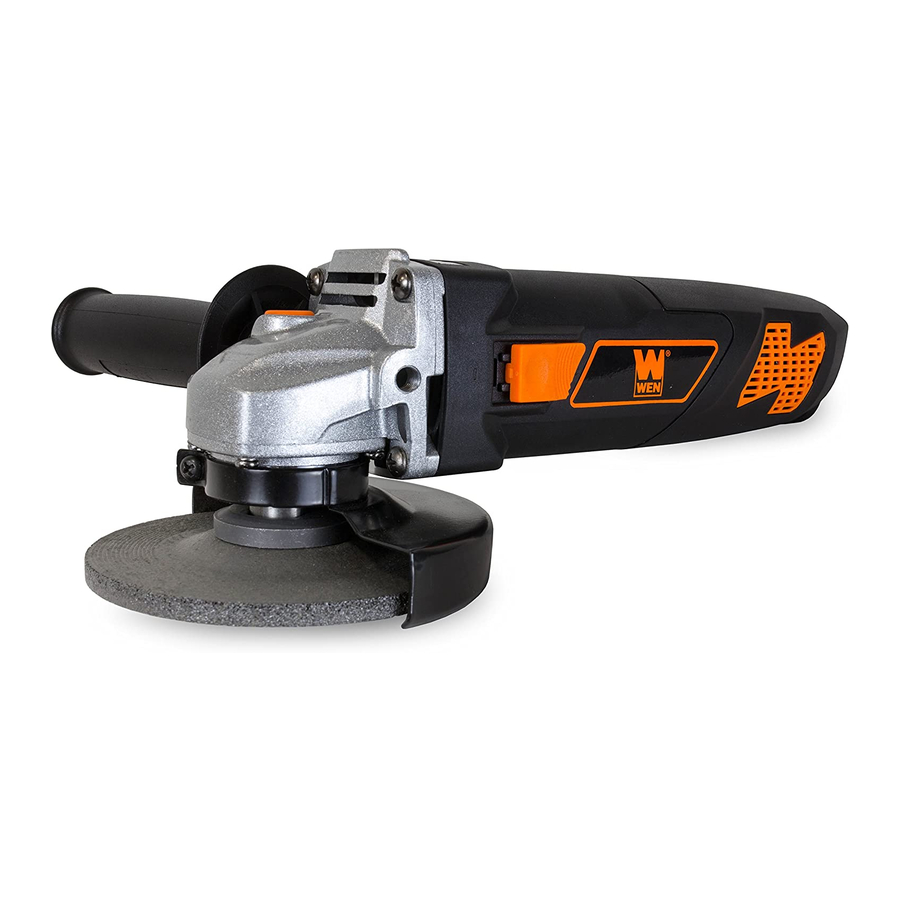

ANGLE GRINDER
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
4-1/2 INCH
(M-F 8AM-5PM CST)
Model # 944
bit.ly/wenvideo

Advertisement

Table of Contents
loading

Related Manuals for Wen 944

Summary of Contents for Wen 944

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for easy operation, dependability and maximum user safety. When properly cared for, this product will supply rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings and cautions.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Technical Data General Safety Rules Specific Safety Rules For Grinding Electrical Information Know Your Grinder Assembly Operation Maintenance Exploded View and Parts List Warranty TECHNICAL DATA Model Number: 120 V, 60 Hz, 7 A Motor: 11,000 RPM Speed: 4.5 inch diameter, 7/8 inch arbor size Disc Size:...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.

  • Page 4: Specific Safety Rules For Grinding

    GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.
  • Page 5 SPECIFIC RULES FOR GRINDING 7. Do not use a grinding wheel that is larger than the maximum recommended size for your tool. Avoid using worn down and damaged wheels from larger grinders. Wheels intended for larger angle grinders are not suitable for the high speed of a small angle grinder, making these wheels burst easily.

  • Page 6: Electrical Information

    ELECTRICAL INFORMATION DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protect- ing insulation.

  • Page 7: Know Your Grinder

    KNOW YOUR GRINDER Side Handle Spindle Lock Vent Gear Motor Housing ON/OFF Switch Handle Thread Holes Wheel Guard Grinding Disc ASSEMBLY WHEEL GUARD INSTALLATION (FIG. A) WARNING: Use the wheel guard with disc grinding wheels. Always close the latch to secure the guard. Keep the guard between you and the wheel.

  • Page 8: Operation

    ASSEMBLY GRINDING DISC ASSEMBLY 1. Disconnect the tool from its power supply. Be sure that the wheel guard has been properly installed before assembling the grinding disc. 2. Place the inner flange (Fig. B - 1) onto the spindle first so that the grooves align with the spindle nut.

  • Page 9: Maintenance

    OPERATION SELECTING THE GRINDING DISC Before using a grinding wheel, make sure that its maximum safe operating speed is more than 11,000 RPM. Do not exceed the recommended wheel diameter. Make sure it has a 7/8 inch arbor size to fit the supplied inner flange. Grinding wheels should be carefully selected in order to maximize efficiency.

  • Page 10: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST...
  • Page 11 944-015 Gear Box 944-040 Pushing Block 944-016 Screw St5X25 944-041 Pushing Rod 944-042 Screws 4*14 944-017 Selflock Pin 944-043 Pressing Line Plate 944-018 Spring 944-019 Selflock Pin Cap 944-044 Rear Cover 944-020 Side Handle 944-045 Screw St4*12 944-046 Cable Protector...
  • Page 12 LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
