Wen 4276 Manual

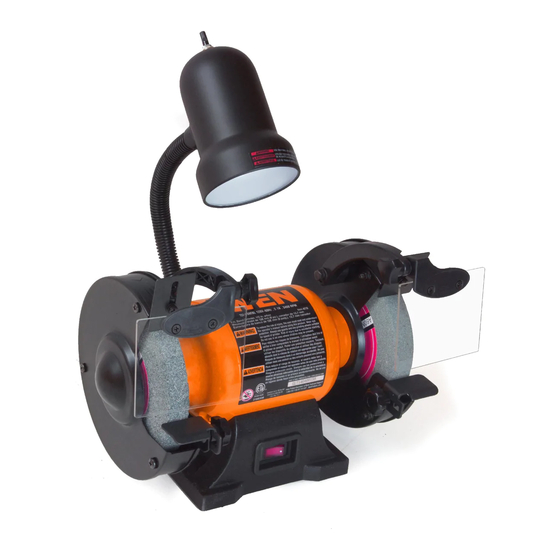

6-inch bench grinder
Hide thumbs Also See for 4276:
Table of Contents

Advertisement

Quick Links

Download this manual
226002
For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
NOTE: Please refer to wenproducts.com for the most up-to-date instruction manual.
6-INCH BENCH
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
GRINDER
Model # 4276

bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

Table of Contents
loading

Related Manuals for Wen 4276

Summary of Contents for Wen 4276

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    3450 RPM (no load) Speed: 6 x 3/4 inch Wheel Size: Arbor Size: 1/2 inch #36 (Coarse)/ #60 (Medium) Wheel Grits: 120V, 40W (Bulb not included) Lamp: 16 lbs. Weight: Compatible with the WEN 4288 Cast Iron Bench Grinder Stand...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instruc- tions may result in electric shock, fire and serious injury. To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.
  • Page 4 GENERAL SAFETY RULES POWER TOOL USE AND CARE 1. Avoid accidental start-ups. Make sure the power switch is in the OFF position before connecting the plug to a power source or carrying the tool. 2. Check power tool for damaged parts. Check for misalignment of moving parts, jamming, breakage, improper mounting, or any other conditions that may affect the tool’s operation.

  • Page 5: Specific Safety Rules For Bench Grinder

    SPECIFIC RULES FOR BENCH GRINDERS WARNING: Do not plug in or operate this tool until the entire manual has been read and understood. Failure to do so may result in personal injury or machine damage. 1. Use only the correct grinding wheels that meet the following requirements: •...
  • Page 6 SPECIFIC RULES FOR THE BENCH GRINDER 16. New wheels may require dressing to make them round. Use a grinding wheel dressing tool (not included) to shape or remove glaze from grinding wheels. 17. Keep the distance between the wheel and tool rest at most a 1/8-inch (3.2 mm) space. Adjust the work rest ac- cordingly as the wheel grinds down to a smaller diameter with use over time.

  • Page 7: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 8: Know Your Bench Grinder

    KNOW YOUR BENCH GRINDER                         1. INNER WHEEL GUARD - Covers the grinding 7. SPARK DEFLECTOR - Prevents hot sparks and wheels and protects against accidental contact debris from contacting the operator 2.

  • Page 9: Assembly

    ASSEMBLY Carefully remove the tool and any accessories from the box. Make sure that all items listed in the packing list are included. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F 8-5 CST. All of the parts for assembly should be accounted for before beginning the assembly.

  • Page 10: Operation

    NOTE: This bench grinder is compatible with the WEN 4288 Cast Iron Bench Grinder Pedestal Stand. 1. Prepare 1/4 in. bolts, flat washers, lock washers and hex nuts (not included). The bolt length should be 1-1/2 in.

  • Page 11: Maintenance

    OPERATION CAUTION: Prolonged grinding will cause most materials to become hot. Use care when handling such materials. SHARPENING SCISSORS If possible, take the scissors apart to make the sharpening operation easier and safer. Remove material only from the outside surface and work from the heavy end of the blade toward the tip. SHARPENING KNIVES Remove metal from both faces of most knives, working from the heavy end of the blade toward the tip.

  • Page 12: Exploded View And Parts List

    Store the bench grinder and the grinding wheels to prevent them from the potential hazards of moisture, contain- ments, and other damage. EXPLODED VIEW AND PARTS LIST Part No. Description Part No. Description 4276-001 Bolt 4276-026 Switch 4276-002 Spring Washer 4276-027...
  • Page 13 EXPLODED VIEW AND PARTS LIST  ...

  • Page 14: Warranty

    LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
