Delta Electronics 0.59V~5.1Vout Specification Sheet page 5

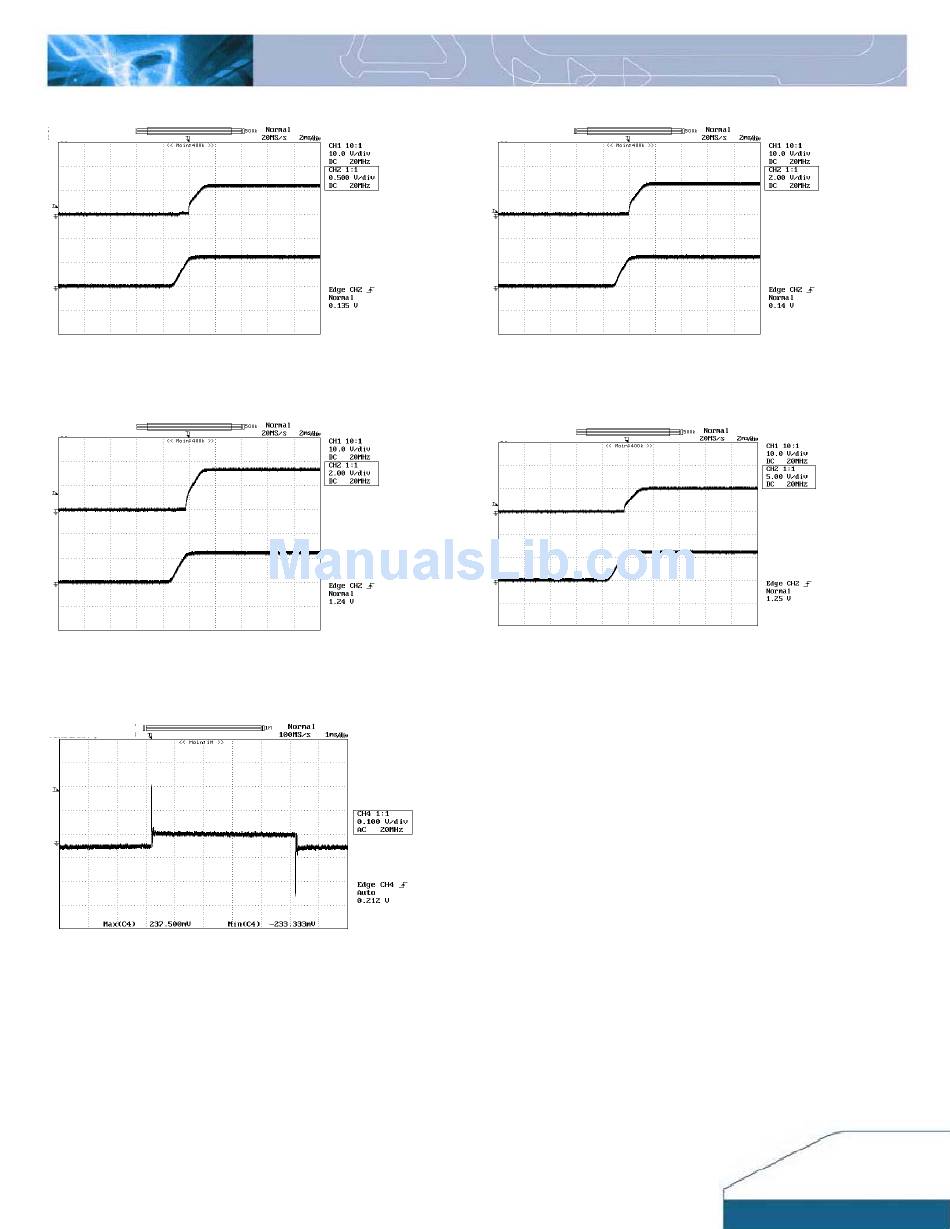

ELECTRICAL CHARACTERISTICS CURVES (CON.)
0
0
Figure 13: Turn on delay time at 12Vin, 0.59V/20A out
Ch1: Vin, Ch4: Vout
0
0
Figure 15: Turn on delay time at 12Vin, 3.3V/20A out
Ch1: Vin, Ch4: Vout
Figure 17: Typical transient response to step load change at 5A/µS
from 75%~100% load, at 12Vin, 2.5V out
Preliminary DS_NE12S20A_07272007
0
0
Figure 14: Turn on delay time Remote On/Off, 2.5V/20A out
Ch1: Enable, Ch4: Vout
0
0
Figure 16: Turn on delay time at Remote On/Off, 5.0V/20A out
Ch1: Enable, Ch4: Vout
5
