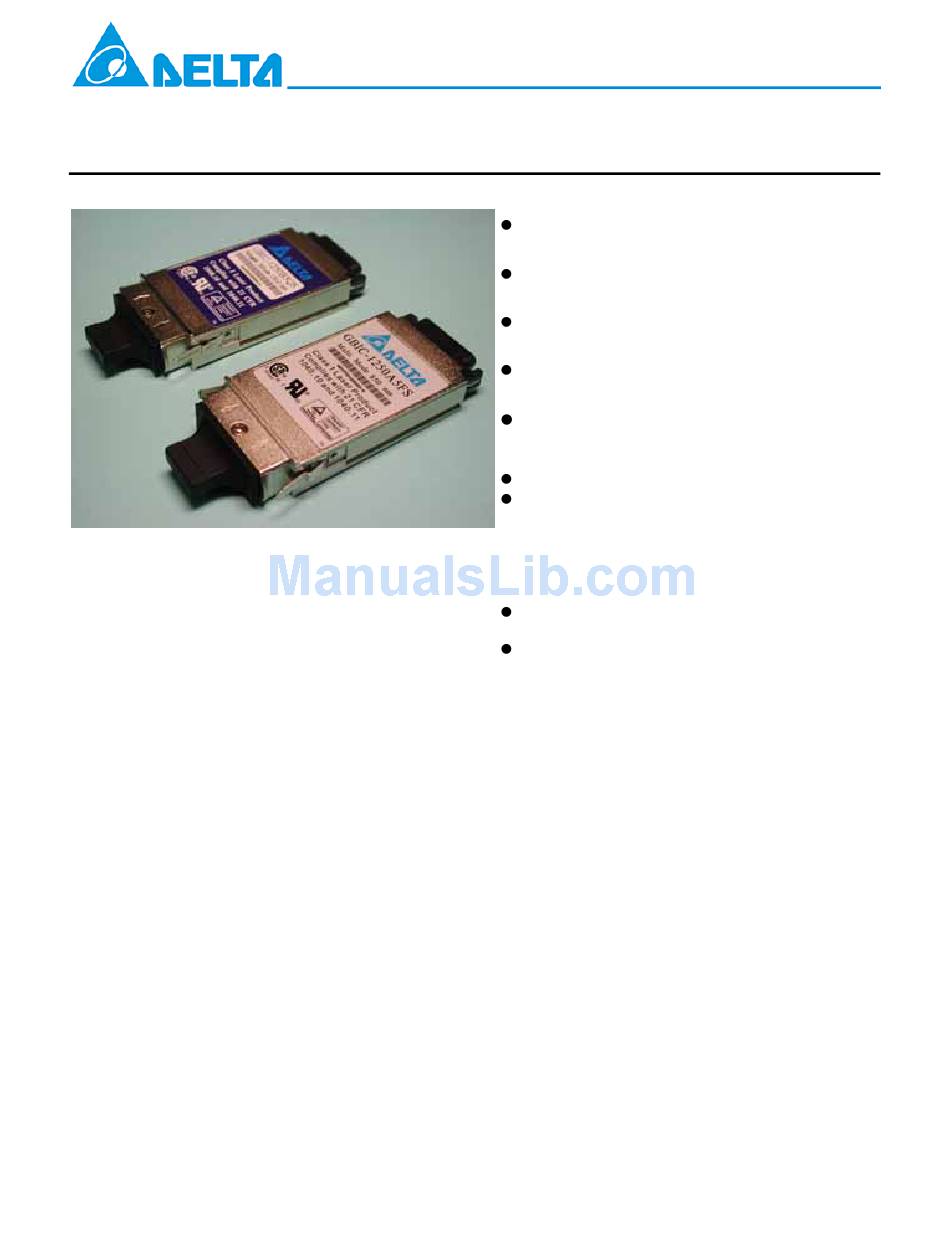

RoHS Compliant 1250Mbps
Transceiver Module for Gigabit Ethernet
Description
The GBIC-1250xxxx families are compliant with GBIC
interface converters specification Rev. 5.4. as well as
Gigabit Ethernet standard as specified in IEEE 802.3.
Delta's GBIC transceiver family uses a 20-pin connector
to allow hot plug capability. The system designer can
make configuration changes or maintenance simply by
plugging in different type of converters without removing
the power supply from the host system.
DELTA ELECTRONICS, INC.
GBIC-1250 Long Distance Series
Gigabit Interface Converters (GBIC)
Features
Compliant with Gigabit Interface
Converter (GBIC) Revision 5.4
Compliant with proposed specifications
for IEEE 802.3z/Gigabit Ethernet.
Dual 5V and 3.3V Power Supply
Operation
TTL Logic TX_DISABLE / TX_FAULT /
RX_LOS functions
Class 1 Laser Product Compliant with
the Requirements of IEC 60825-1 and
IEC 60825-2
Hot-Pluggable
RoHS Compliant per Directive
2002/95/EEC
Applications
1.25 Gigabit Ethernet
Fiber Channel
Performance
GBIC-1250B5LR:
1310nm MQW DFB laser, up to 25km in SMF
GBIC-1250D5MR:
1550nm MQW DFB laser, up to 40km in SMF
GBIC-1250D5WR:
1550nm MQW DFB laser, up to 70km in SMF
GBIC-1250D5RR:
1550nm MQW DFB laser, up to 80km in SMF
GBIC-1250D5VR:
1550nm MQW DFB laser, up to 100km in SMF
1
01/23/2008
Rev. 0F
www.deltaww.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta Electronics GBIC-1250B5LR
Summary of Contents for Delta Electronics GBIC-1250B5LR
- Page 1 The system designer can make configuration changes or maintenance simply by plugging in different type of converters without removing the power supply from the host system. DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series Gigabit Interface Converters (GBIC) Features Compliant with Gigabit Interface Converter (GBIC) Revision 5.4...
-
Page 2: Absolute Maximum Ratings
2. Pull up to V on host Board 3. Internally AC coupled, but requires a 150Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values. DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series Symbol Min. Typ. Max. -
Page 3: Optical Characteristics
LOS - Asserted (avg.) LOS - Hysteresis Note: 1. The sensitivity is provided at a BER of 1×10 -1 PRBS and ER=9dB. 2. These are 20%~80% values DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series =4.75V to 5.25V, Data Rate=1250Mb/sec, PRBS=2 Symbol Min. Typ. -
Page 4: Pin Out Table
GBIC module definition and presence, bit 1,4.7 K to 10 K Ohm MOD_DEF(1) pullup to VDDT on host GBIC module definition and presence, bit 2,4.7 K to 10 K Ohm MOD_DEF(2) pullup to VDDT on host DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series Sequence Sequence Pin# Name/Function... - Page 5 GBIC-1250 Long Distance Series Recommend Circuit Schematic 01/23/2008 Rev. 0F www.deltaww.com DELTA ELECTRONICS, INC.
- Page 6 TX_DISABLE time to t_rest start reset RX_LOS assert delay t_loss_on RX_LOS negate delay t_loss_off DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series MOD_DEF(2) Interpretation by host Reference Pin 6 GBIC not present clause Copper Style 1 or Style 2 connector, 1.0625 Gbd,...
- Page 7 GBIC-1250 Long Distance Series GBIC timing parameters: 01/23/2008 Rev. 0F www.deltaww.com DELTA ELECTRONICS, INC.
- Page 8 GBIC-1250B5LR EEPROM Serial ID Memory Contents (2-Wire Address A0h) Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII GBIC-1250D5MR EEPROM Serial ID Memory Contents (2-Wire Address A0h) Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Notes: Byte 63: Check sum of bytes 0-62.
- Page 9 Byte 63: Check sum of bytes 0-62. Byte 68-83 (SN): Serial number. Byte 84-91 (DC): Date code. Byte 95 (CS2): Check sum of bytes 64-94. DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series DC Note 3 F8 Note 1 SN Note 2...
- Page 10 Byte 63: Check sum of bytes 0-62. Byte 68-83 (SN): Serial number. Byte 84-91 (DC): Date code. Byte 95 (CS2): Check sum of bytes 64-94. DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series DC Note 3 15 Note 1 SN Note 2...
- Page 11 GBIC-1250 Long Distance Series Package Outline Drawing GBIC-1250B5LR 、 、 、 GBIC-1250D5 (M V) R 01/23/2008 Rev. 0F www.deltaww.com DELTA ELECTRONICS, INC.
-
Page 12: Regulatory Compliance
5: 3.3 and 5V Available Products GBIC-1250A5FR: Dual supply voltage (3.3/5V), 850nm VCSEL, 50um MMF 500m. GBIC-1250B5QR: Dual supply voltage (3.3/5V), 1310nm MQW FP LD, SMF 10km. DELTA ELECTRONICS, INC. GBIC-1250 Long Distance Series Reference Qty’ (1) Satisfied with electrical characteristics of product spec.
