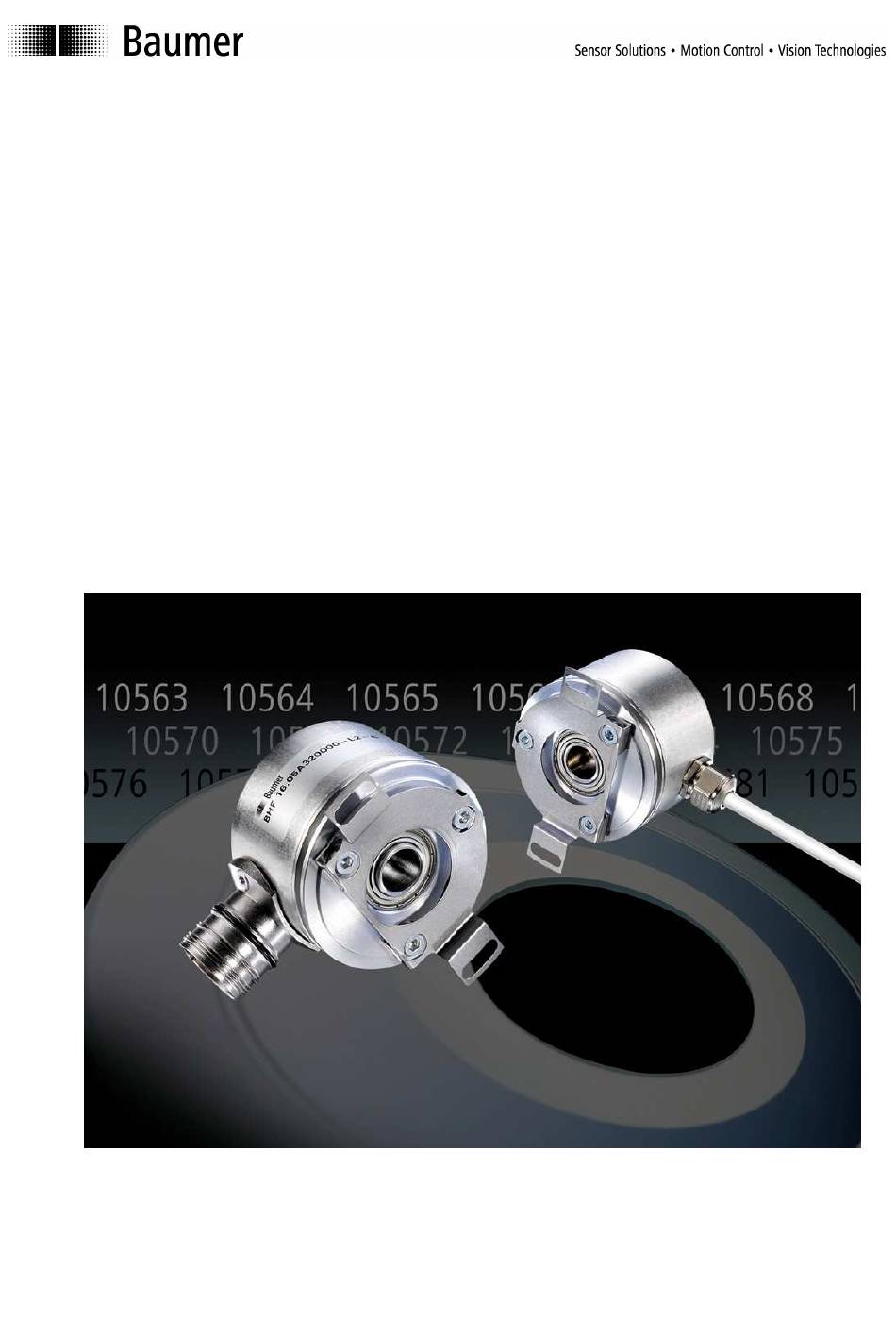

User Manual
Baumer Electric AG
Hummelstrasse 17
8501 Frauenfeld · Switzerland
Telefon +41 (0)52 728 11 22
Telefax +41 (0)52 728 11 44
E-Mail: sales.ch@baumerelectric.com
www.baumerelectric.com
ENCODERmaster
Software version 01.01.06
Subject to technical and design modifications,
errors and omissions excepted
HB EncoderMaster E V1.00.xx rev04.doc
24.07.2008
Advertisement
Table of Contents
Related Manuals for Baumer ENCODERmaster
Summary of Contents for Baumer ENCODERmaster
- Page 1 Baumer Electric AG Hummelstrasse 17 8501 Frauenfeld · Switzerland 24.07.2008 Telefon +41 (0)52 728 11 22 Subject to technical and design modifications, Telefax +41 (0)52 728 11 44 errors and omissions excepted E-Mail: sales.ch@baumerelectric.com www.baumerelectric.com HB EncoderMaster E V1.00.xx rev04.doc...
-
Page 2: Table Of Contents
Software installation under Windows 2000, XP ..............5 Hardware installation........................9 Connection of BiSS Adaptor ......................9 Connection of an encoder to the BiSS Adaptor ................10 User instruction for ENCODERmaster software..............11 Setting of specific parameters ....................12 5.1.1 Number of pulses........................12 5.1.2 Direction of rotation........................12 5.1.3... -
Page 3: Introduction
1 Introduction 1.1 Product assignment The ENCODERmaster software, together with a electronic device (BiSS Adaptor), builds a system to program the following Baumer encoders: Table 1: Product assignment Product family Product Encoder BHF 1P. xxxxxxxxx-xx-x Encoder BHG 1P. xxxxxxxxx-xx-x HB EncoderMaster E V1.00.xx rev04.doc... -
Page 4: Safety And Operating Instructions
The encoder may only be used for this purpose. • The ENCODERmaster software, in combination with a electronic device (BiSS Adaptor), must solely be used to program assigned Baumer encoders listed in table 1. Commissioning •... -
Page 5: Functional Description
Number of pulses, direction of rotation and zero pulse readout can be adjusted with only a few mouse clicks using the ENCODERmaster-software. At any time it is possible to load and save the factory default settings in order to reinstall the status of the delivery. - Page 6 Step 4: Finish the installation by clicking on Finish. The software icon appears on the desktop and in the Start menu under Programs in the program folder Baumer. Figure 2: Final window after successful installation Step 5: First connect the power supply adapter with the BiSS Adaptor. Afterwards connect the BiSS Adaptor with the USB port of your PC by using a USB-AB cable.
- Page 7 Figure 4: Start window of the hardware installation Step 7: Choose the option Install from a list or specific location and click on Next. Figure 5: Choose the driver source HB EncoderMaster E V1.00.xx rev04.doc 7/15 Baumer Electric AG 09.07.08/wer...
- Page 8 Step 9: Close the installation by clicking on Finish. Figure 7: Final window after successful driver installation Important: If the operating system is Windows 2000 step 6 eventually has to be done twice. HB EncoderMaster E V1.00.xx rev04.doc 8/15 Baumer Electric AG 09.07.08/wer...
-
Page 9: Hardware Installation
Connect the BiSS Adaptor to the power supply. After that, connect the BiSS Adaptor to the PC by using a USB-AB cable. Figure 8: Cabling ATTENTION: It is recommended to connect the power supply to the BiSS Adaptor all the time during operation. HB EncoderMaster E V1.00.xx rev04.doc 9/15 Baumer Electric AG 09.07.08/wer Frauenfeld, Switzerland... -
Page 10: Connection Of An Encoder To The Biss Adaptor
ATTENTION: When using an encoders with cable outlet (-5), the loose wires must not build contact to eachother, otherwise no programming can be done! Figure 9: Connection of encoder to BiSS Adaptor HB EncoderMaster E V1.00.xx rev04.doc 10/15 Baumer Electric AG 09.07.08/wer... -
Page 11: User Instruction For Encodermaster Software
After connecting the encoder with the BiSS Adaptor and the PC the ENCODERmaster software can be started. Click on the icon on your desktop or click on Start – Programs – Baumer – EncoderMaster. After a short display of the start window the programming window with the setting options is displayed. During the start the encoder is identified. -
Page 12: Setting Of Specific Parameters
10 seconds. If an encoder is not identified correctly all values are invisible and the red indicator Communication lights up on the left side of the button Factory settings. HB EncoderMaster E V1.00.xx rev04.doc 12/15 Baumer Electric AG 09.07.08/wer... -
Page 13: Diagnostics Messages
4.2. Check if the encoder is an assigned product (see table 1). Also check the power supply. Attention: Incorrect connection of the power supply could result in destruction of the encoder! HB EncoderMaster E V1.00.xx rev04.doc 13/15 Baumer Electric AG 09.07.08/wer... -
Page 14: Appendix
(24K output circuit) (rpm) 250’000 5’000 5’000 3'000 300’000 5’000 10’000 1’800 300’000 5’000 20’000 300’000 5’000 40’000 300’000 5’000 80’000 300’000 5’000 160’000 300’000 5’000 320’000 HB EncoderMaster E V1.00.xx rev04.doc 14/15 Baumer Electric AG 09.07.08/wer Frauenfeld, Switzerland... -
Page 15: Order Designations
Art. Nr. 161910 Consisting of: Biss Adaptor with USB cable and power supply 230 V Art. Nr. 162968 Software CD-ROM with EncoderMaster-software Art. Nr. 147362 Programming cable Art. Nr. 165345 HB EncoderMaster E V1.00.xx rev04.doc 15/15 Baumer Electric AG 09.07.08/wer Frauenfeld, Switzerland...
