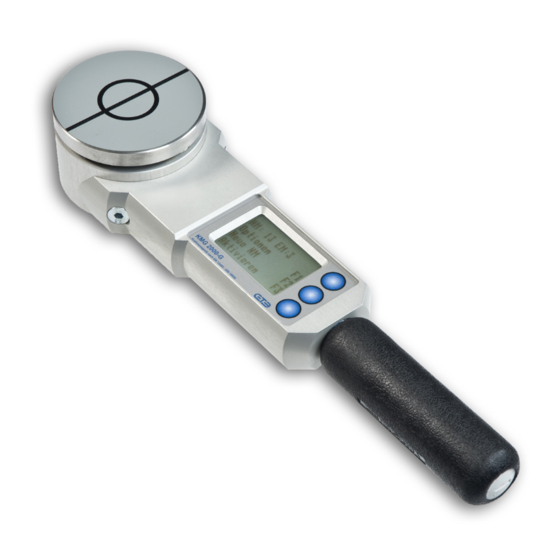

- Page 1 KMG-2000-G Operating manual Force measuring device for doors and gates. Helmholtzstr. 21, 38 – 40 | 41747 Viersen | Deutschland | +49 2162 3703-0 | info@gte.de | www.gte.de...
- Page 2 Helmholtzstr. 21, 38-40 41747 Viersen Germany Support-Hotline: +49 2162 3703-0 E-mail: info@gte.de © 2022 GTE Industrieelektronik GmbH – This document and all figures contained may not be copied, changed, or distributed without explicit approval by the manufacturer! Subject to technical changes!
- Page 3 BRIEF DESCRIPTION Brief Description The force measuring device KMG-2000-G measures dynamic and static forces at door and gate closing edges as well as the duration of force effects. It complies with all requirements of EN 12453, which guarantees the complete testing and documentation of the force limitation capability of a system according to EN 12453, as well as the standard-compliant quality assurance for the production of doors according to EN 13849-1.
-
Page 4: Table Of Contents
Measurement Preparation ........9 Turn on the KMG-2000-G ....... . 9 Performing Measurement . - Page 5 TABLE OF CONTENTS 10 Warnings and Error Massages ........11 10.1 Battery Monitoring .
-
Page 6: About This Manual
ABOUT THIS MANUAL About this Manual This manual describes the correct use of the KMG-2000-G. It is aimed exclusively at knowled- geable specialist personnel. Explanation of Symbols This manual follows a certain structure to make it easy to work with and understand. The follo- wing designations are used throughout. -
Page 7: Storing This Manual
Keep this documentation at hand so that you can look it up if necessary. For your Safety In order to use the KMG-2000-G safely, it is essential to read, understand and follow these instructions and the safety instructions contained therein. -
Page 8: Standards And Regulations
DHF Code of practice for powered gates & barriers Qualification of Personnel All work with the KMG-2000-G may only be performed by qualified personnel. Qualified persons are those who can perform work on electrical systems due to their technical training, their knowledge and experience as well as knowledge of the relevant regulations and who can recognize possible dangers. -
Page 9: Scope Of Delivery
The use of parts other than the original spare parts and the original accessories of the manufacturer can lead to property damage. Only original spare part and original accessories of the − manufacturer may be used! The following accessories are available for the KMG-2000-G: Product Distance Set Software KMG-VD 2005 305-2310-001 EN34... -
Page 10: Transport And Storage Conditions
TRANSPORT AND STORAGE CONDITIONS Transport and Storage Conditions NOTICE Material damage due to incorrect storage conditions Mechanical loads caused by improper transport will result in material damage to the KMG-2000-G. No mechanical stress may occur during transport. − Setup and Function Overview KMG-2000-G... -
Page 11: Function
The required software can be ordered as an accessories. The centerpiece of the KMG-2000-G contains an LCD display, on which all the measured values, the force curves, the measured-value memory management function, and user guidance are displayed. -
Page 12: Option 2: Delete Mode
MENU OPTIONS After every measurement the device is automatically switched to Activation Mode “Auto”: “ready to measure”. As soon as a force > 20N acts on the test surface, a new force/time graph is plotted and then the current graphic is displayed and the measured values stored. This mode is used to record several measurements one after another which should be triggered automatically by hitting the test plate. -
Page 13: Option 4: Lightning Adjustment
Using button “F1” the time is decreased Exit: Different times can be set ranging from 2 - 30 mi- nutes Switch off the KMG-2000-G The device is switched on by pressing any button as desired and automatically switches off after a set time. 305-2310-001 EN34... -
Page 14: Language Selection
With F3 you navigate through the individual pages of the language selection. Measurement Preparation Turn on the KMG-2000-G ► Press any key KMG-2000-G is switched on. KMG-2000-G After switching on, the “start” display appears for Options: 5 seconds: Language:... -
Page 15: Carry Out Measuring Operation
CARRy OUT MEASURING OPERATION Carry out Measuring Operation Hold the test area centrically (inner circle) to the mea- Measurement suring points according to the standards. The measu- ring points are specifically prescribed in relation to Please wait the relevant type of gate construction. Once the trigger threshold of 20 N has been pas- sed, the force is measured over a period of 5 se- conds. -
Page 16: Further Measurements
Storage of the Measurement Data and Graph via PC The KMG-2000-G can be connected to any PC via a data link (USB). To do this, the cable supplied is connected to the USB jack on the KMG-2000 G and to a USB interface on the PC. -
Page 17: Memory Space
WARNINGS AND ERROR MASSAGES If the “batteries low” message appears, the batteries Batteries are depleted and must be charged up. Exit: Changing batteries is not necessary as the device contains 2 rechargeable batteries. Changing batteries is only required if the batteries are damaged. As the batteries are monitored by an integrated charging regulator whilst charging and discharging, exchanging the batteries is only to be expected at the end of their useful life (which is several years). -
Page 18: Memory Space Empty
„Check on Measured Values Held in Memory“, the following message appears: Exit: 10.4 Device Still Loaded If the KMG-2000-G is loaded with a force of more Device still than 50 N when a measurement is started manual- loaded ly, further measurement is possible (F3 key), but the measurement accuracy is no longer guaranteed. -
Page 19: Technical Data
TECHNICAL DATA 13 Technical Data Power supply: 2 x 1,2 V NiMH-battery Power consumption: 20 mA Interface: Memory: 500 Individual measurements, corresponds to 166 Standard measurements with 3 indi- vidual measurements each Temperature range -10 ... +60 °C Relative humidity 20 ...
