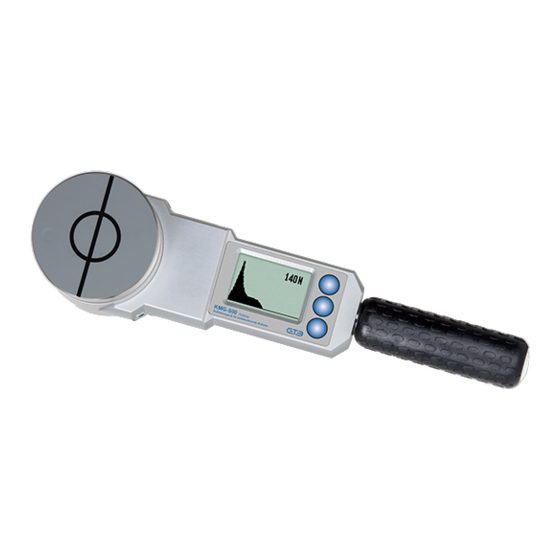

GTE KMG 300 Quick Start Manual

With fuji-prescale films
Hide thumbs

Advertisement

Table of Contents

for KMG 300/500 System with Fuji-Prescale Films
GTE Industrieelektronik GmbH
Helmholtzstr. 38-40
41747 Viersen
Germany
FPM Vision I
Quick Start Guide
325-2810-002 EN02
GTE Industrieelektronik GmbH
Measuring Technology Product Division
Tel. +49-(0)2162-3703-0
Fax +49-(0)2162-3703-25
E-mail:
info@gte.de
Internet: www.gte.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KMG 300 and is the answer not in the manual?

Questions and answers

Related Manuals for GTE KMG 300

Summary of Contents for GTE KMG 300

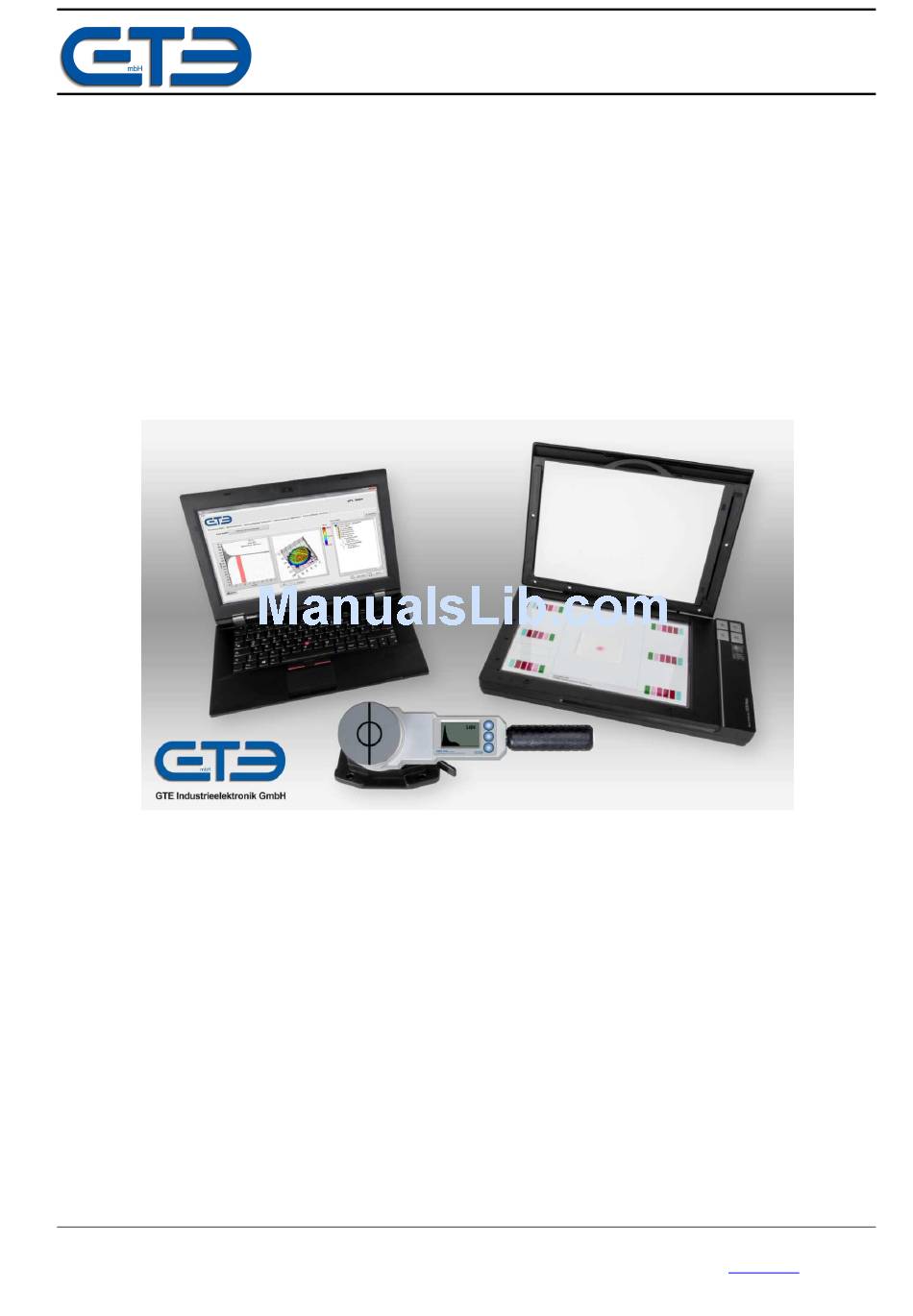

  • Page 1 GTE Industrieelektronik GmbH Measuring Technology Product Division FPM Vision I Quick Start Guide for KMG 300/500 System with Fuji-Prescale Films 325-2810-002 EN02 GTE Industrieelektronik GmbH Tel. +49-(0)2162-3703-0 Helmholtzstr. 38-40 Fax +49-(0)2162-3703-25 41747 Viersen E-mail: info@gte.de Germany Internet: www.gte.de...

  • Page 2: Safety Information

    The software is designed for the visualization, analysis, editing, and archiving of force measurements Recorded using the KMG 300-75 and KMG 500-75 measuring systems and of pressure images generated using Fuji-Prescale films. The measurement method is used for determining impact and clamping forces at collaborative robots based on ISO/TS 15066.

  • Page 3: Software License

    “KMG\License” menu. For this purpose, the measuring device must be connected to the PC. Next, the device can also be used at all other stations. The PC software may be installed on 10 computers/stations. As soon as the KMG 300 or KMG 500 is connected, the enabled functions can be used.
  • Page 4 USB connection of the KMG The force gauge features an USB connection for transferring the measured data of the KMG 300/500. In the case of a complete installation, all necessary drivers are already on the PC. You can find further device information in the respective operating instructions.

  • Page 5: Starting The Software

    Resets the current template to the standard. csv Export: Compilation of several measurement data into a table in csv format. KMG menu: Export measurement data: Exporting the measurements from the KMG 300/500 into a csv file. License: Inputting or changing the license key. Help menu: Manual:...
  • Page 6 For recording the force profile, the KMG 300/500 must be firmly according to the configuration specifications. For recording the force profile, the KMG 300/500 must be firmly according to the configuration specifications.
  • Page 7 Step 1: Configuring the measuring equipment Create a new data report via the File\New menu. Connect the force gauge KMG 300/500 to the PC. Select the force sensor and the pressure sensor in the top right area. The available sensors are displayed for selection depending on the license.
  • Page 8 GTE Industrieelektronik GmbH Step 2: Report data of the measurement Additional fields for report data and parameters of your measurement are available in the top left area of the window. • Use descriptive names for the “Test series” and “Test name” fields. Directories with the same name will be created in the storage path, when the measurement is saved! •...
  • Page 9 GTE Industrieelektronik GmbH Step 3: Importing measurement data The KMG 300 and KMG 500 feature an integrated analysis and memory. After a measurement, the force profile is displayed graphically. Furthermore, the results for static and dynamic/transient force can be read out directly on the device's display.
  • Page 10 GTE Industrieelektronik GmbH Import: Next, the scan is displayed. Press and hold the left mouse button and select the relevant area. Confirm with “OK”. • The pressure image is imported and filtered. The evaluated result is displayed in the right window.
  • Page 11 GTE Industrieelektronik GmbH Step 4: Measurement results and thresholds After completion or after opening an existing measurement file, a separate window opens displaying the stored results. Measurement results Open the destination folder with the generated files. Open the report (Word file).

  • Page 12: Csv Export

    GTE Industrieelektronik GmbH GTE Industrieelektronik GmbH Graph palette Select the cursor function in the graph palette for a selective value determination. In the diagram for force Select the cursor function in the graph palette for a selective value determination. In the diagram for force Select the cursor function in the graph palette for a selective value determination.
  • Page 13 GTE Industrieelektronik GmbH Notes regarding the scanning process: Place the Fuji Prescale pressure sample with the calibration sheet onto the scanner as shown below. Accurate placement of the calibration sheet is important. Sample centered on the scanner, coarse side downward Placement of the calibration sheet –...

  • Page 14: Creating A Report Template

    GTE Industrieelektronik GmbH Creating a report template Open the template via the “Evaluation\Create template” menu. You can control, which measurement data will be displayed, by inserting or deleting bookmarks. Place your logo and address data. Insert text, such as measurement execution instructions, and format the template. An overview of all possible bookmarks and their names can be found below.
  • Page 15 GTE Industrieelektronik GmbH KMG Serial number KMGSerialnumber KMGType KMG Type KMGNumber KMG Measurement number FUJICalSN Calibration element S/N Film FUJIType Specific Body area SpecificBodyArea Specific Body area number SpecificBodyAreaNumber BodyRegionNumber Body Region number AllThresholdForceTransient Threshold force transient AllThresholdPressureTransien Threshold pressure transient...
