Summary of Contents for CPG 351FEC100B

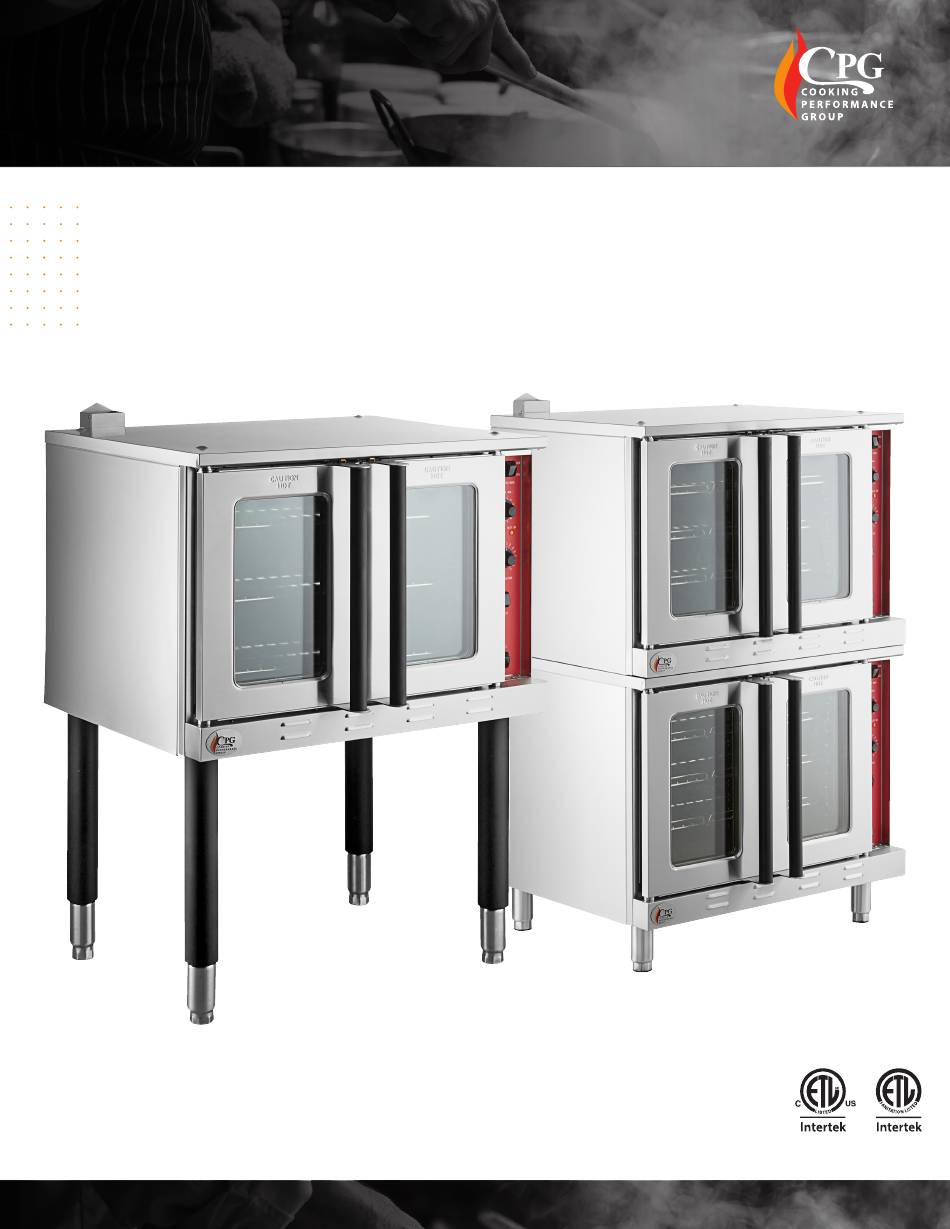

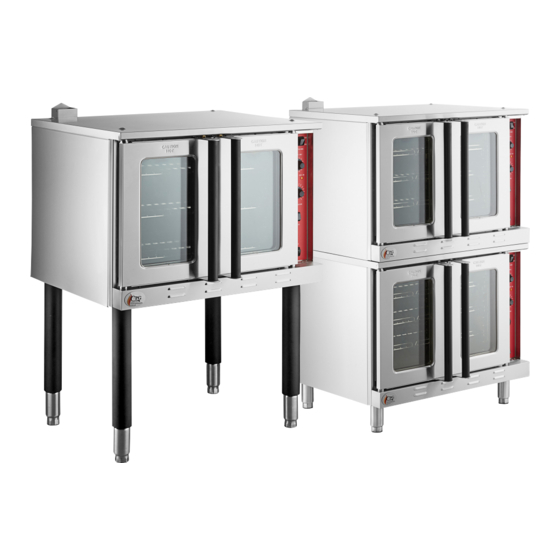

- Page 1 User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Electric Convection Ovens 11/2021 Cooking Performance Group www.cookingperformancegroup.com...
-
Page 2: Table Of Contents
• Improper installation, adjustment, alteration, service or maintenance could lead to property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing CPG equipment. This manual must be retained for future reference. • A factory authorized agent must handle all maintenance and repair. -
Page 3: Stacking Ovens Instructions
User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Stacking Ovens Instructions NOTE: Requires two like ovens and stacking kit (#35117046014). NOTE: We require the stacking to be performed by an authorized service agent or installer and takes two people to lift the ovens Fig. -
Page 4: Specifications
User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Specifications 351FEC100B 351FEC100C 351FEC100D 351FEC100E Total Power 9 kW 9 kW 10.1-11.9 kW 10.1-11.9 kW Voltage 208V 208V 240V 240V Amps Phases Overall Dimensions 38"W × 41½"D × 54"H (Single Oven) Overall Dimensions 38"W x 41½"D x 63½"H... -
Page 5: Startup
The manufacturer requires the installation to be performed Electric Convection Oven according to national and local codes and must be performed by a licensed installer. Item: 351FEC100B Phase: 1PH 7. Checking the functions: Voltage: 208V, 50/60 Hz The serial plate, like the example to the right, is located on the... -
Page 6: Electrical Diagrams
User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Electrical Diagrams 1 PHASE: www.cookingperformancegroup.com... - Page 7 User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Electrical Diagrams 3 PHASE: www.cookingperformancegroup.com...
-
Page 8: Operating Instructions
User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Operating Instructions Control Panel Fan Mode: COOK Mode: The fan runs continuously except when the doors are open. The fan does not cycle with the COOK Power Switch: operation of the heating element. Switch ON to use the oven; switch O FF COOL COOL Mode:... - Page 9 User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Operating Instructions Cooking Instructions 1. Turn the oven ON using the Power Switch at the top of the control panel. 2. Select the desired fan speed using the Fan Speed switch. The appropriate fan speed (HI or LOW) depends on the type of food being cooked.
- Page 10 User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Operating Instructions High Limit Fig. 1 Fig. 2 Temperature Reset WARNING: PLEASE UNPLUG AND DISCONNECT UNIT BEFORE REMOVING THE BOLT AND OPENING THE CONTROL PANEL TO AVOID INJURY. 1. Remove the 7mm bolt that secures the control panel.
-
Page 11: Cleaning & Maintenance
User Manual 351FEC100(B/C/D/E) | 351FEC200(B/C/D/E)K Cleaning & Maintenance 1. Before cleaning, turn off the unit and let it cool down. 2. Carefully clean the equipment daily to promote proper operation and long life. 3. Steel surfaces must be cleaned with with cleaning agents such as Noble Chemical Sunbright, Noble Chemical Knockout, or Noble Chemical Blast, diluted in very hot water using a soft cloth;...
