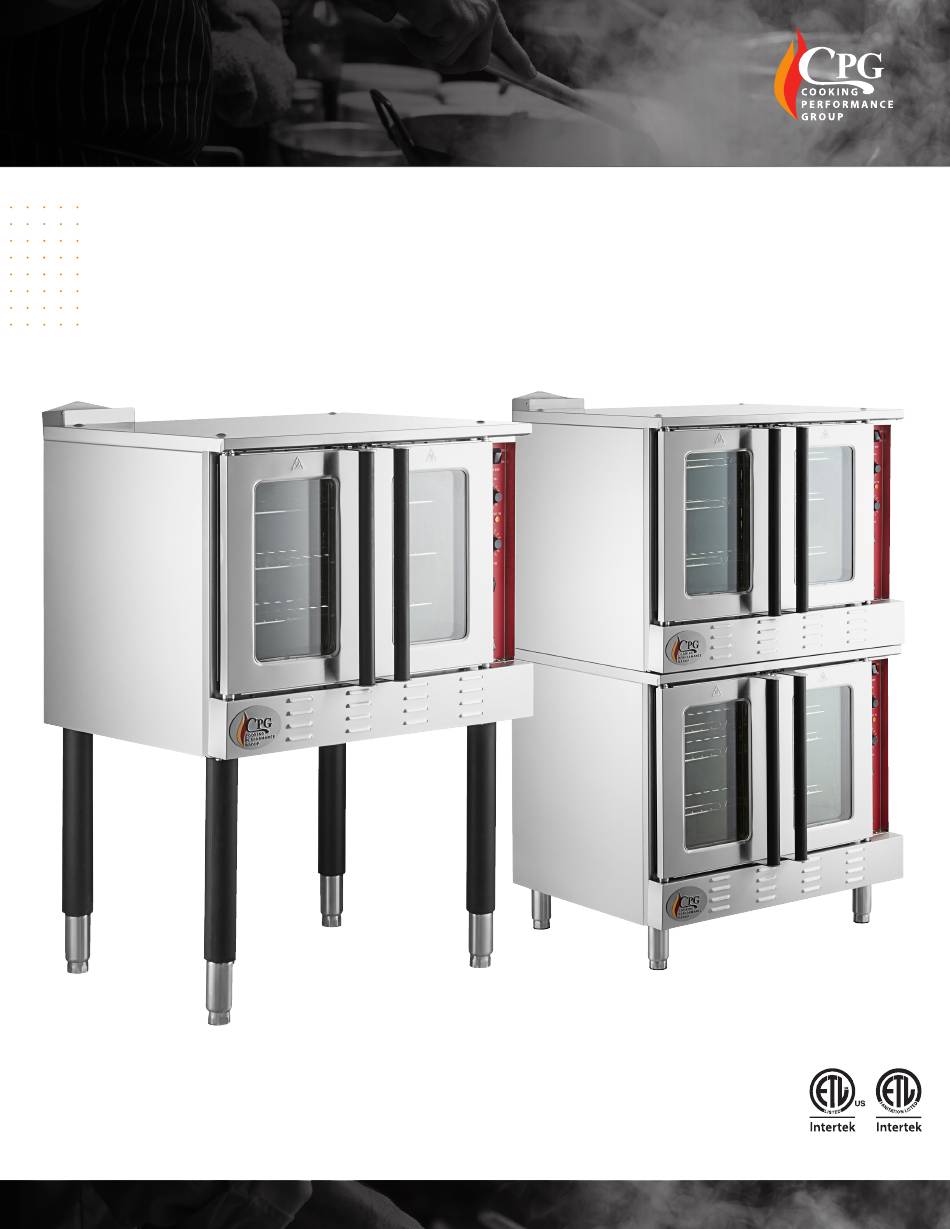

- Page 1 User Manual 351FGC100(L/N) | 351FGC200(L/N)K Gas Powered Convection Ovens 11/2021 Cooking Performance Group www.cookingperformancegroup.com...
-
Page 2: Table Of Contents

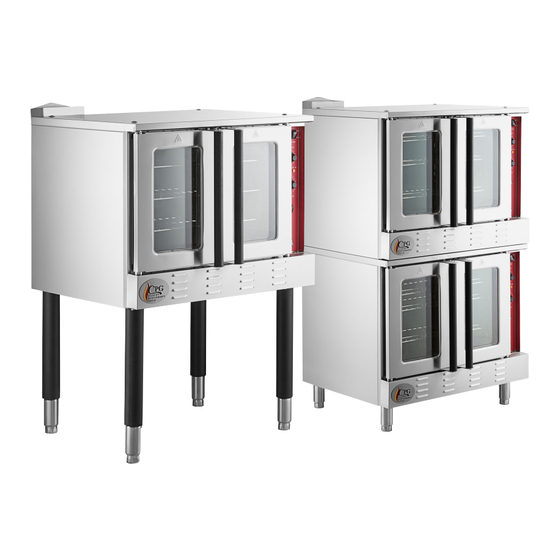

Cleaning & Maintenance ....... . . 12 Product Overview The 351FGC100 features a sturdy steel construction with 4 adjustable legs. It is equipped with one built- in convection fan per oven cavity. The automatic ignition system activates in the event of a flameout, and a shutdown device stops the system from trying to ignite the burner(s) after 3 unsuccessful attempts to ensure safety. -
Page 3: Safety Precautions
• Improper installation, adjustment, alteration, service or maintenance could lead to property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing CPG equipment. This manual must be retained for future reference. • A factory authorized agent must handle all maintenance and repair. -
Page 4: Stacking Ovens Instructions
User Manual 351FGC100(L/N) | 351FGC200(L/N)K Stacking Ovens Instructions NOTE: Requires two like ovens and stacking kit (#35117046014). NOTE: We require the stacking to be performed by an authorized service agent or installer and takes two people to lift the ovens. -
Page 5: Specifications
Weight (Single Oven) 403.45 lb. Clearance 6" Sides, 2" Rear NOTE: 351FGC200 ovens consist of two like 351FGC100 ovens - please see the spec table above for the individual oven/cavity specifications. NOTE: Each oven requires its own electrical connection. NOTE: You cannot convert voltages with these units. If you have the wrong voltage, you will need to purchase a unit with the correct voltage ¾"... -
Page 6: Startup
User Manual 351FGC100(L/N) | 351FGC200(L/N)K Startup Installation 1. Remove packaging before beginning installation. NOTE: Some parts are protected with an adhesive film. Remove any glue residue with approved substances, such as Noble Chemical Strike All Purpose Cleaner (#147STRIKE1G); never use abrasive substances. (See Cleaning &... - Page 7 User Manual 351FGC100(L/N) | 351FGC200(L/N)K Startup Gas Connection 1. The serial plate is located on the side panel. It indicates the type of gas the unit is equipped to use. All equipment is set for use with the specified gas type at the factory.
-
Page 8: Electrical Diagram
User Manual 351FGC100(L/N) | 351FGC200(L/N)K Electrical Diagram www.cookingperformancegroup.com... -
Page 9: Operating Instructions
User Manual 351FGC100(L/N) | 351FGC200(L/N)K Operating Instructions Control Panel Fan Mode: COOK Mode: The fan runs continuously except when the doors are open. COOK The fan does not cycle with the Power Switch: operation of the heating element. Switch ON to use the oven; switch... - Page 10 User Manual 351FGC100(L/N) | 351FGC200(L/N)K Operating Instructions Lighting, Relighting, and Shutdown Instructions 1. To light the oven, flip the power switch at the top left corner of the control panel to the “ON” position. The oven is equipped with a direct hot surface ignition system. There is no pilot to light.
- Page 11 User Manual 351FGC100(L/N) | 351FGC200(L/N)K Operating Instructions Cooking Instructions (Continued) 8. To rapidly cool the oven cavity when finished cooking: Turn thermostat down to lowest level, open the oven door, switch the fan to COOL mode, and fan speed to HI. This will cause the fan to run even with the doors open.
-
Page 12: Cleaning & Maintenance
User Manual 351FGC100(L/N) | 351FGC200(L/N)K Cleaning & Maintenance 1. Before cleaning, turn off the unit and let it cool down. 2. Carefully clean the equipment daily to promote proper operation and long life. 3. Steel surfaces must be cleaned with with cleaning agents such as Noble Chemical Sunbright, Noble Chemical Knockout, or Noble Chemical Blast, diluted in very hot water using a soft cloth;...
