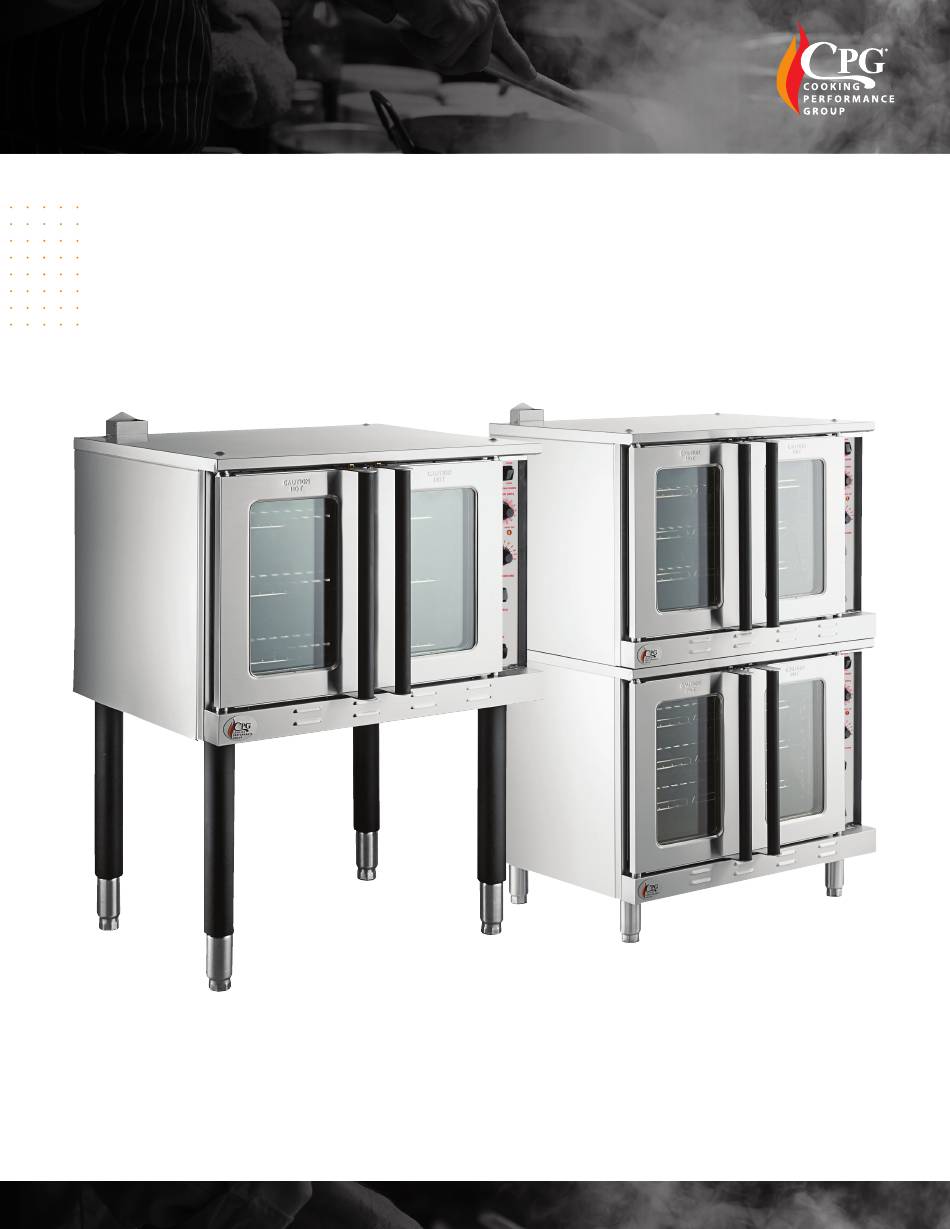

- Page 1 User Manual Electric Deep Depth Convection Ovens 351FEC100DDC, 351FEC100DDD, 351FEC200DDCK, 351FEC200DDDK REVISED 12/2024 www.cookingperformancegroup.com...
- Page 2 Improper installation, adjustment, alteration, service, or maintenance could lead to property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing CPG equipment. This manual must be retained for future reference. • A certified and insured foodservice equipment technician must handle all maintenance and repair.
- Page 3 User Manual Stacking Ovens Instructions NOTE: Requires two like ovens and stacking kit (#35117046014). NOTE: The stacking should be performed by an authorized service agent or installer. It takes two people to lift the ovens. Fig. 1 Fig. 2 1. Install the caster plate. (Fig. 1 A) 3.
- Page 4 User Manual Specifications 351FEC100DDC 351FEC100DDD Total Power 11 kW 11.9 kW Voltage 208V 240V Amps Phases Overall Dimensions 38¹/₈"W × 4513/16"D × 54"H (Single Oven) Overall Dimensions 38¹/₈"W × 4513/16"D × 621/8"H (Stacked Ovens) Oven Chamber 29"W × 277/8"D × 20"H...
- Page 5 User Manual 2. Mount the feet and adjust the height by loosening or tightening each foot to ensure the unit is level. NOTE: If stacking ovens, see above for stacking instructions. If installing casters on a single deck model, see instructions below. 3.
- Page 6 User Manual Phase Conversion Instructions Please follow the below steps to convert the phase of your oven to match your application. NOTE: Only phase can be converted. The voltage of these ovens cannot be converted. Please ensure that your oven is the proper voltage to be used with your electrical connection. Converting 3 Phase to 1 Phase Converting 1 Phase to 3 Phase 1.
- Page 7 User Manual Electrical Diagrams 1 PHASE: FEC100 HL1 ..........Bore Lamp XL.
- Page 8 User Manual Electrical Diagrams 3 PHASE: FEC100 HL1 ..........Bore Lamp XL.
- Page 9 User Manual Operating Instructions Control Panel Fan Mode: COOK Mode: The fan runs continuously except when the doors are open. The fan does not cycle with the COOK Power Switch: operation of the heating element. Switch ON to use the oven; switch O FF COOL COOL Mode:...
- Page 10 User Manual Operating Instructions Cooking Instructions 1. Turn the oven ON using the power switch at the top of the control panel. 2. Select the desired fan speed using the fan speed switch. The appropriate fan speed (HI or LOW) depends on the type of food being cooked.
- Page 11 User Manual Operating Instructions High Limit Fig. 1 Fig. 2 Temperature Reset WARNING: PLEASE UNPLUG AND DISCONNECT UNIT BEFORE REMOVING THE BOLT AND OPENING THE CONTROL PANEL TO AVOID INJURY. 1. Remove the 7 mm bolt that secures the control panel. (Fig. 1 & 2) 2.
- Page 12 User Manual Cleaning & Maintenance 1. Before cleaning, turn off the unit and let it cool down. 2. Carefully clean the equipment daily to promote proper operation and long life. 3. Steel surfaces must be cleaned with cleaning agents such as Noble Chemical Sunbright, Noble Chemical Knockout, or Noble Chemical Blast, diluted in very hot water using a soft cloth;...
