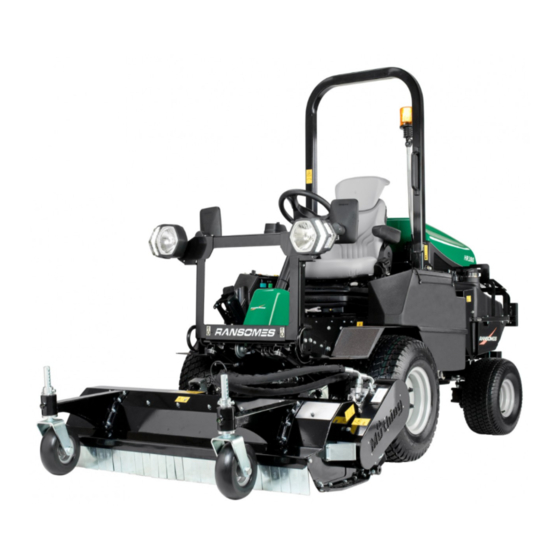

- Page 1 10015824-GB(Rev.A) ® QUICK START GUIDE Ransomes HR380 Ride on Rotary Mower STARTING THE ENGINE SEAT ADJUSTMENT CONTROLS DRIVING MOWING VISUAL DISPLAY Refer To The Safety, Operation And Maintenance Manual For Full Operating Instructions. RJL 100 January 2021 United Kingdom...
- Page 2 QUICK START GUIDE Ransomes Jacobsen Limited reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice. © 2021 Ransomes Jacobsen Limited. All Rights Reserved...
-
Page 3: Starting The Engine
QUICK START GUIDE STARTING THE ENGINE BEFORE YOU OPERATE FOR THE FIRST TIME • Check and adjust tyre pressure, if necessary. • If necessary, add diesel fuel to tank. * Use diesel fuel EN590 or ASTM D975 Ultra Low Sulphur. •... -
Page 4: Seat Adjustment
QUICK START GUIDE SEAT ADJUSTMENT SEAT (Grammer MSG85) C. WEIGHT ADJUSTMENT To adjust Adjustments to the seat can be made for leg The position of the operator weight adjust reach, backrest angle and operator weight to lever (C) is on the front of the seat. To give a good position to operate the machine. -
Page 5: Steering Wheel Adjustment
QUICK START GUIDE STEERING WHEEL ADJUSTMENT STEERING TILT CONTROL When the operators seat is in the correct position to operate the Traction Pedal comfortably, push the small Foot Pedal (A) at the base of the steering column, and tilt the column backward or forward to the correct position. - Page 6 QUICK START GUIDE CONTROLS Starter Key Switch Visual Display Throttle Control Light Switch (optional) Park Brake Switch Cutting Implement Lift/Lower Control Hazard Warning Switch (optional) Weight Transfer Switch Auxiliary Hydraulic Services Kit Deck Position Indicator Lamp (optional) Cutters (PTO) Indicator Lamp Cutter Switch (PTO) Beacon (optional) 4WD Reverse Assist...
- Page 7 QUICK START GUIDE CONTROLS STARTER KEY SWITCH PARK BRAKE SWITCH When the engine is in operation, the Park Turn the starter key to the right to start the Brake is applied by sliding back the orange button on the rocker and depressing the engine.
- Page 8 QUICK START GUIDE CONTROLS CUTTER SWITCH (PTO) LIGHT SWITCH (OPTIONAL) To start to cut make sure the Mow/Transport speed selector is in Mow position and the implement is lowered. Turns the road lights on and off. Push the top of the cutter rocker switch and Position 1.
- Page 9 QUICK START GUIDE DRIVING Release Brake - Make sure the Park Brake is released before you try to go forward or reverse. Forward - Carefully push the top (A) of the Forward / Reverse Foot Pedal to reach correct ground speed. Reverse - Carefully push the bottom (B) of the Forward / Reverse Foot Pedal to reach correct ground speed.
- Page 10 QUICK START GUIDE MOWING Ensure speed limiter (C) is pushed to the left in Mow position. Lower the implement with the Unit Lift/ Lower Control. NOTE: The cutters cannot be started if, the speed limiter (C) is set to Transport position.
-
Page 11: Visual Display
If TST™ is not installed the TST™ icon will be crossed through. Ransomes Jacobsen recommends that the owner/user of the machine completes a site After the start up screen, the warning screen specific risk assessment of the area to be is shown. -
Page 12: Diesel Particulate Filter (Dpf)
QUICK START GUIDE VISUAL DISPLAY ENGINE START When the Ignition Key is turned to the start position this screen is shown. If any of the icons flash: • The Park Brake is not applied. 1234 123.4 Hours • The Cutter Switch (PTO) is not in the OFF position. -
Page 13: Clock & Date Adjust
QUICK START GUIDE VISUAL DISPLAY Regen cycle to start. Do not stop the CLOCK & DATE ADJUST engine, dis-engage the Park Brake or operation of the Traction Pedal until the Parked Regen cycle is completed and the Regen Request light turns off. Clock Adjust 12 : 34 : 65 To inhibit the engine from performing a... -
Page 14: Service Menu
QUICK START GUIDE VISUAL DISPLAY SERVICE MENU When you access the language selection page, the checkmark appears next to the selected language. When the checkmark is moved up and down, Service Menu the language does not change until button Fault Log four is used to select and store the language. - Page 15 QUICK START GUIDE VISUAL DISPLAY WARNING MAXIMUM SLOPE four times at 4 second intervals, and the red ANGLE EXCEEDED LEDs will flash four times at 4 second intervals. This will continue until the machine has been driven to an area of less than 19°. WARNING SLOPE ANGLE - INHIBIT CUT If the slope angle reaches 19°...
- Page 16 If fault persists do not use the machine at all. ENGINE OVERHEAT When this screen is shown, there is an engine fault. Stop the engine as soon as possible and contact your local Ransomes Jacobsen Dealer. When this fault occurs the machine’s engine will automatically reduce the power available.
- Page 17 Replace the filter element at the earliest When this screen is shown, there is a fault opportunity. with the TST™. Stop as soon as possible and contact your local Ransomes Jacobsen Dealer. en-17...
- Page 20 Cert No. EMS609276 Cert No. OHS609277 United Kingdom & Rest of The World Except North & South America & Europe Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, IP3 9TT English Company Registration No. 1070731 www.ransomesjacobsen.com Europe Ransomes Jacobsen France...
