Item #1006 316 038
Model #XD2616-L
USE AND CARE GUIDE

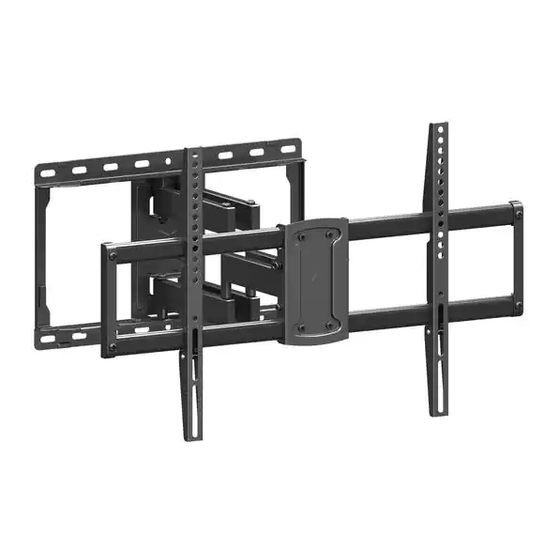

FULL MOTION TV WALL MOUNT FOR FLAT PANEL TVS
(FITS VESA 200/300/400/600)
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
For additional support, call the manufacturer at 1-800-747-6558.
Advertisement
Table of Contents
Related Manuals for Commercial Electric XD2616-L
Summary of Contents for Commercial Electric XD2616-L

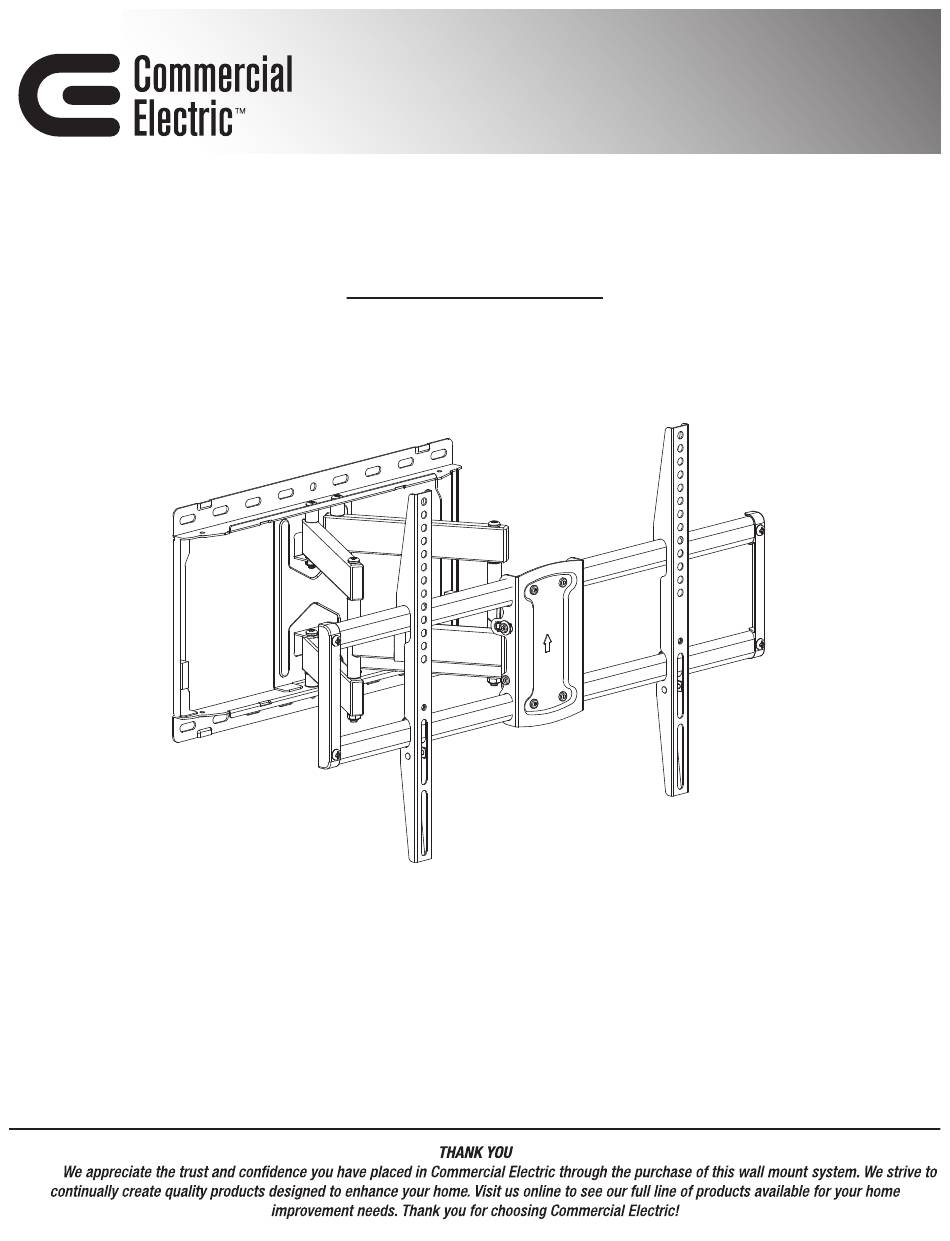

- Page 1 FULL MOTION TV WALL MOUNT FOR FLAT PANEL TVS (FITS VESA 200/300/400/600) Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM...
- Page 2 Table of Contents Safety Information ........2 Pre-Installation .
- Page 3 Pre-Installation ENSURING THIS IS THE CORRECT WALL MOUNT FOR YOU IMPORTANT: Review this section carefully before you proceed with this installation to ensure that this is the correct TV Wall Mount for you. This TV Wall Mount is the correct wall mount for you if: □...
- Page 4 Pre-Installation (continued) ENSURING THE WALL STABILITY Carefully inspect the wall area you have selected. Examine the wall surface before you begin drilling. WARNING: Do not drill near electrical wiring and water pipes. CAUTION: Wood studs must be no smaller than 2 x 4 in. in size. Ensure the surface covering does not exceed 5/8 in. CAUTION: Concrete walls must have a minimum thickness of 5.5 in.
- Page 5 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware is not shown to actual size. NOTE: The hardware included is suitable for mounting to walls made of brick, solid concrete, or wood studs covered with drywall. If your www.HomeDepot.com. For additional support, you can also call the manufacturer at 1-800-747-6558. EE - Part Description...
- Page 6 Pre-Installation (continued) PACKAGE CONTENTS MOUNTING TEMPLATE Part Description Quantity Wall plate unit TV bracket Bubble level Mounting template HDMI Velcro ties...
- Page 7 Installation Identifying the bolt diameter to use Identifying the bolt length to use □ Insert a straw or toothpick (not included) into one of the mounting To ensure proper mounting of the brackets to your TV, this mounting system includes several sizes of bolts (EE – JJ), washers holes on the back of your TV.
- Page 8 Installation (continued) Marking the mounting holes Use the mounting template (D) to mark the mounting hole locations for attaching the wall plate unit (A) to the wall. Use the bubble level (C) to ensure the mount will be level before you drill holes. Drilling the mounting holes in a Drilling the mounting holes in a concrete/brick wall...
- Page 9 Installation (continued) Attaching the mounting arm to the wall Align the wall plate unit holes with the pre-drilled holes in the wall. Use the bubble level (C) to ensure the wall plate is level before securing to the wall. Atta ch the wall plate unit (A) to the wall using lag bolts with washers (AA).
- Page 10 Installation (continued) Adjusting the angle of the TV Adjust the angle of the TV by loosening the screw (1) on various angle adjustments. Secur ely tighten the screw (1) ±45° +5° -15° ±4° Manage TV cables orderly through the velcro ties.
- Page 11 Troubleshooting Problem Solution Solution 1 The cables are blocked by the mount or brackets. Add spacers between the bracket and the TV back. Plug in the cable first and then hang the TV. Spacer Solution 2 If VESA is less than mount's max line, please move bracket away from the cables.
- Page 12 Troubleshooting (continued) Problem Solution Solution 1 The TV is not level or is out of balance. Check if the wall plate is level using the provided bubble level. If the wall plate is not level, adjust it to level. Solution 2 Check if the TV plate is level.
- Page 13 Troubleshooting (continued) Problem Solution The arm moves stiffly. Apply lubricant to the arm's joint. Problem Solution The bolt is difficult to screw into a If the bolt is damaged, please contact customer service for a replacement wood stud. bolt and follow the installation instructions. 1.
- Page 14 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM For additional support, call the manufacturer at 1-800-747-6558. Retain this manual for future use.
