Summary of Contents for Commercial Electric XD2473

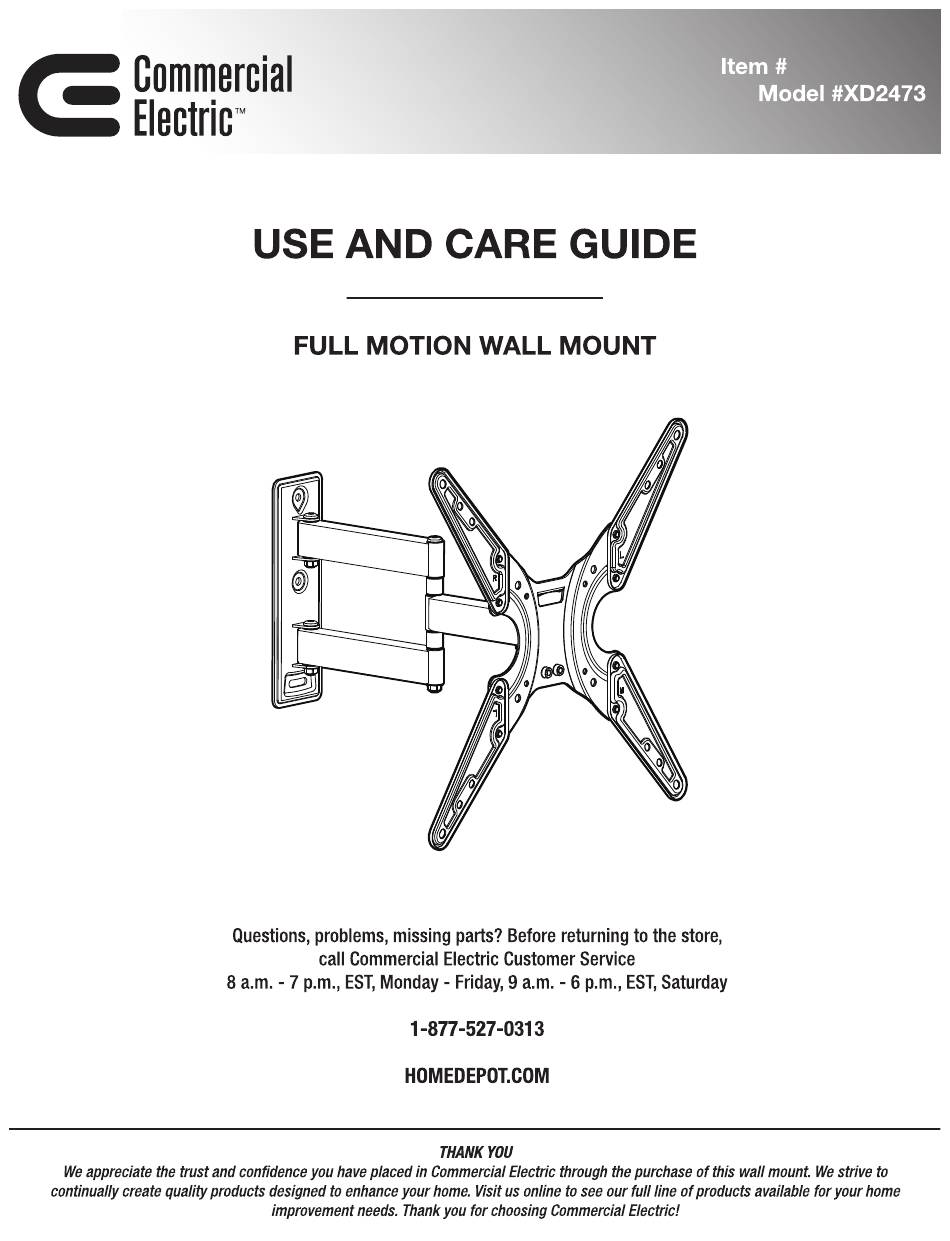

  • Page 1 1002 212 025...
  • Page 2: Safety Information

    Table of Contents Safety Information ........2 Warranty .
  • Page 3: Warranty

    Warranty The manufacturer warrants that it will replace or repair this item, free of charge, at the manufacturer’s sole discretion, should it prove defective in materials or workmanship. This warranty does not apply to: □ Normal wear and tear □ Friction damage □...
  • Page 4 Pre-Installation (continued) ENSURING WALL STABILITY Carefully inspect the wall area you have selected. Examine the wall surface before you begin drilling. WARNING: Do not drill near electrical wiring and water pipes. CAUTION: Wood studs must be no smaller than 2 x 4 in. in size. Ensure the surface covering does not exceed 5/8 in. CAUTION: Concrete walls must have a minimum thickness of 5.5 in.
  • Page 5 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. NOTE: The hardware included is suitable for mounting to walls made of brick, solid concrete, or wood studs covered with drywall. If your mounting situation is different, please consult a qualifi ed installer or contact customer service at 1-877-527-0313 or visit www.HomeDepot.com.
  • Page 6: Installation

    Installation Identifying the bolt diameter to use Identifying the bolt length to use □ Insert a straw or toothpick into one of the mounting holes To ensure proper mounting of the brackets to your TV, this mounting system includes several sizes of bolts (CC and DD), on the back of your TV.
  • Page 7 Installation (continued) Drilling mounting holes in concrete/ Drilling mounting holes in wood studs brick wall CAUTION: Avoid drilling near electrical wiring and water If you are installing the mounting system into wood studs, proceed pipes. The mounting system must be attached to a weight to step 6.
  • Page 8 Installation (continued) Attaching the mounting plate to the TV (VESA 100 and 200) GG/HH NOTE: If the back of the TV is not fl at, or the bolts are too long, or there is interference between the TV bracket and cable inlets, we strongly recommend the use of spacers.
  • Page 9 Installation (continued) Attaching the TV to the wall plate Adjusting the handle unit □ Turn the handle clockwise until it stops (Fig. 1), and pull the handle out from the wall mount (Fig. 2). CAUTION: Use two or more people to complete this step. □...
  • Page 10 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
