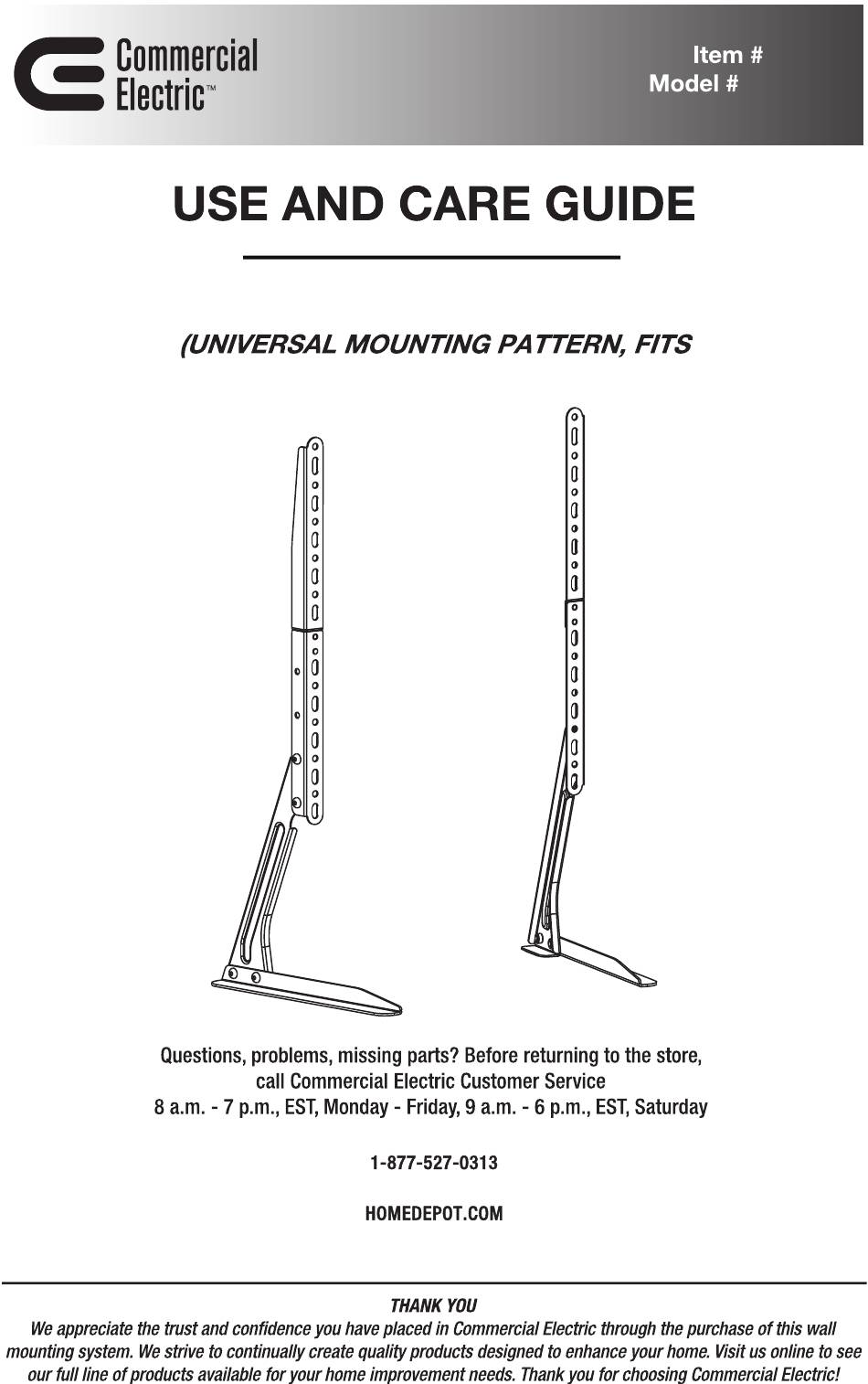

- Page 1 ******** MB-60315 Heavy-Duty Minimalist Design Tabletop TV Stand VESA 75/100/150/200/300/400/600/800)
- Page 2 4-10 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. It is the installer's responsibility to make sure the structure can support the 110 lbs.
- Page 3 Pre-Installation Extension bracket Extension bracket Bracket Bracket Feet Feet Bolt Allen key Wrench 100mm...
- Page 4 Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV.
- Page 5 Installation (continued) Installing the base Connect the legs (E,F) and the foot (G,H) using the bolts (I) and Allen key (K). Installing the extension brackets (This step only for extended VESA demand) Attach the extension adapter arms (A, B) to the brackets (C, D) using the nuts (J) and wrench (L). Installing the brackets Attach the brackets (C, D) to the base using the bolts (I) and Allen key (K).
- Page 6 Installation (continued) Attaching the mounting brackets to the TV Using the washers (BB) and screws (AA)(size M5x14,M6x14) to attach the TV of flat back. Or using the spacers (CC), washers (BB) and screws (DD)(size M6x30, M8x30, M8x50) to attach the TV of curved or recessed back. CAUTION: Tighten the screws so the brackets are firmly attached.
