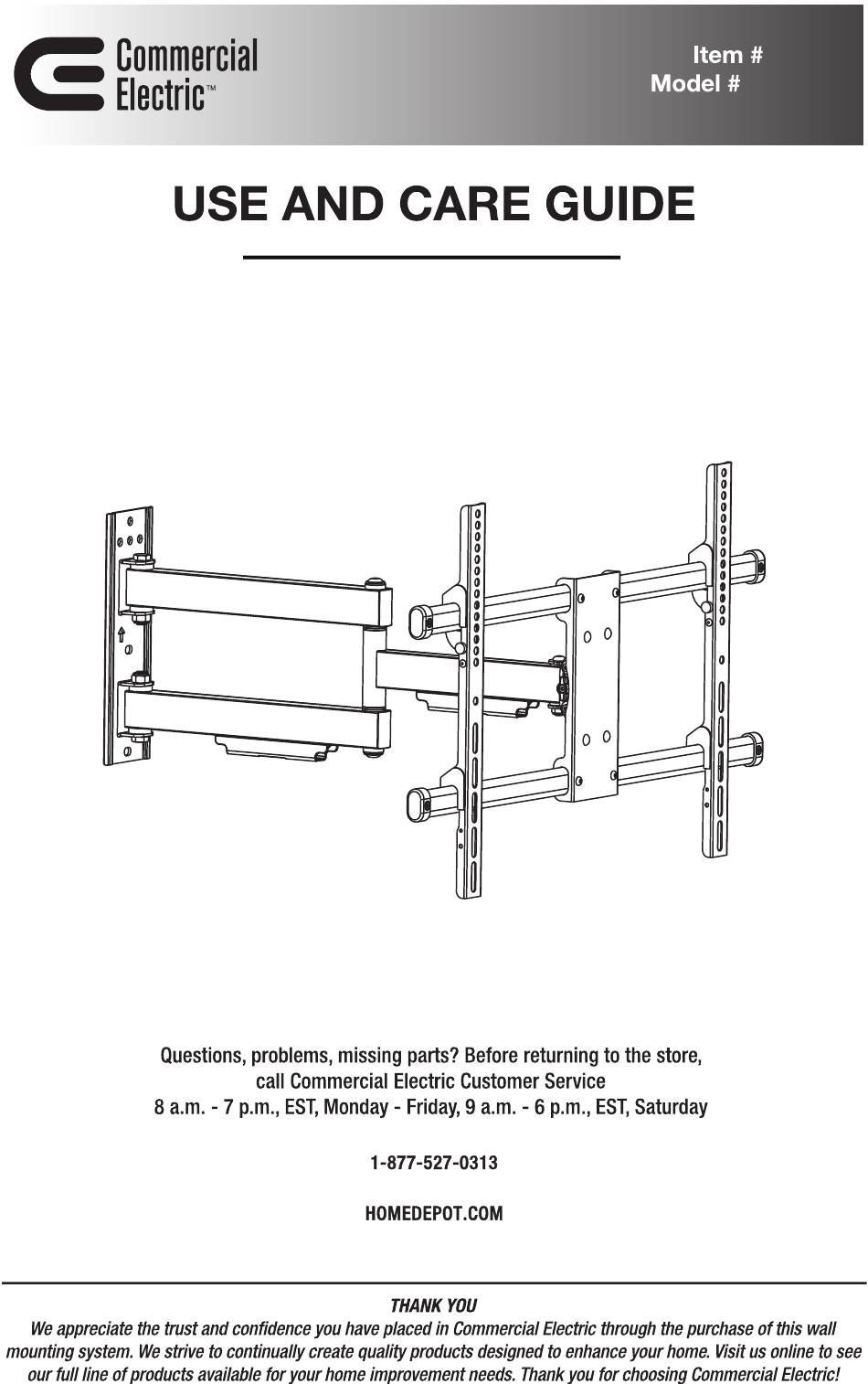

- Page 1 ******** MB-53290 Full Motion Wall Mount for Flat Panel TVs (For up to 90" TVs, Fits VESA 200/300/400/600)
- Page 2 4-10 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. 110 lbs. four (50kgs). 615mm/24.21" 62mm/2.44" in. (6 mm) wood drill bit or in.
-
Page 3: Pre-Installation
Pre-Installation Part Description Quantity 4 each 8 each Part Description Quantity Wall mount Mounting bracket Thumb screw Allen key Wrench Bubble level 100mm... - Page 4 CAUTION: Ensure the wall you select is a weight-bearing wall. Failure to observe this precaution can result in serious physical injury and/or property damage. Consult a professional installer or contact customer service if you have any questions.
- Page 5 Installation (continued) Installing the wall mount (concrete/masonry wall) Use the wall mount (A) as a template to mark the installation holes. Use the bubble level (F) to ensure the wall mount (A) is level. Use a in. (12 mm) masonry drill bit to slowly drill 3.7 in. (95 mm) pilot holes. Insert anchors (AA) into the holes.
- Page 6 Installation (continued) Installing the wall mount (wood stud) Use a commercially-available stud finder to locate the stud centers in the wall. Studs are usually spaced 16 in. apart. Use the wall mount (A) as a template to mark the installation holes. Use the bubble level (F) to ensure the wall mount (A) is level.
- Page 7 Installation (continued) Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service.
- Page 8 Installation (continued) mounting brackets to the TV Using the washers (EE) and screws (DD, size M5x14,M6x14) to attach the TV of flat back. Or using the spacers (FF), washers (EE) and screws (DD, size M6x30, M8x30, M8x50) to attach the TV of curved or recessed back. CAUTION: Tighten the screws so the brackets are firmly attached.
- Page 9 Installation (continued) Attaching the TV Hang the TV on the wall mount and tighten the thumb screws (C) as shown to secure the TV. HEAVY! You will need assistance with this step.
- Page 10 Installation (continued) Managing the cable Route cable along the arm. Adjusting the TV to the desired position Leveling: Using the wrench (E) to release or tighten the screws on the VESA plate as shown. Assist yourself with the bubble level (F). Tilt: Using the Allen key (D) to release or tighten the knob on the VESA plate as shown.
