Page 1

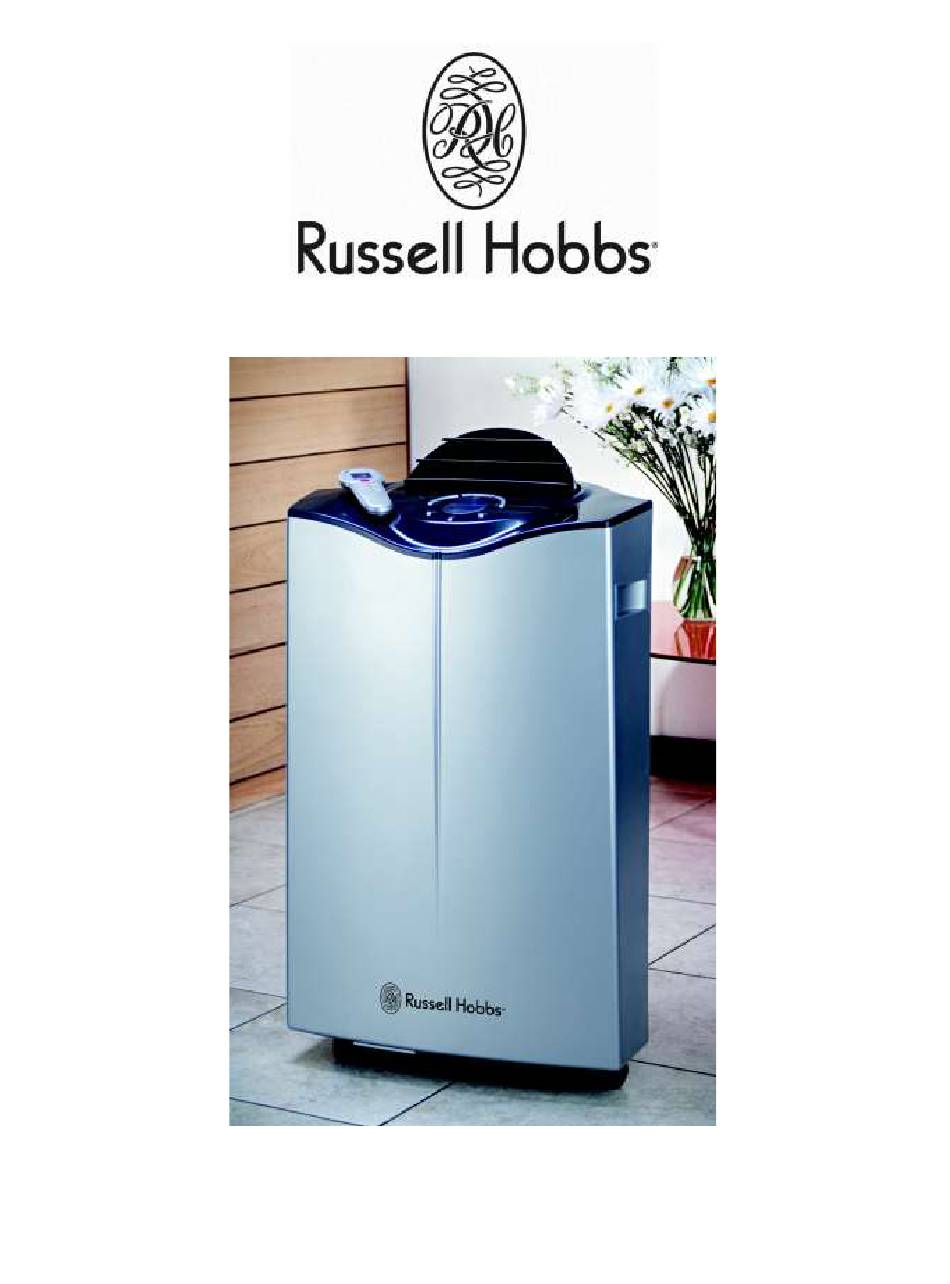

INSTRUCTIONS & WARRANTY MODEL: RHMA 055 MOBILE AIR CONDITIONER...
Page 2
Thank you for choosing this innovative Russell Hobbs air conditioner. We suggest that you keep this manual in a safe place for future reference. It describes the many benefits and advanced features this unique product has to offer. Before you use your new air conditioner you should carefully read these instructions to maximize this product‟s performance.
Page 3
IMPORTANT SAFEGUARDS When using any electrical appliance, basic safety precautions should always be followed including the following: Please read the instructions carefully before using any appliance. Alw ays ensure that the voltage on the rating label corresponds to the mains voltage in your home. Incorrect operation and improper use can damage the panel heater and cause injury to the user.
Page 4
IMPORTANT • The unit is designed for indoor operation. • Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet. If you are in any doubt about the electrical installation, have it checked and if necessary modified by a qualified electrician.
Page 5
PARTS Front Back Control Panel Air filter Air outlet Air inlet Carrying handle Exhaust air outlet Caster Wheels Cord storage Water stopper / drainage point Accessories Inward adaptor - for insertion over hose and connection with piece 1. Outward adaptor - for insertion over hose and into foam strip (or into hole in the wall/window).
INSTALLATION Installation of the exhaust pipe The unit is a portable air conditioner that may be moved from room to room. 1. Using the foam strips Foam strips FIG.5 Offer foam strips to the window gap and cut to size if necessary. ...
Page 7
Mounting of the exhaust pipe Use only the hose provided and clip exhaust hose and unit adaptor to the back of FIG.8 the air conditioner Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down.
Page 8
Installation of the carbon filter Remove the filter frame from the unit. Separate the filter fixer from the filter frame. Remove the active carbon filter from its plastic bag. Insert the active carbon filter into the filter frame. Fix the filter by reassembling the fixer onto the filter frame.
Page 9
OPERATION for LCD electronic MODEL Control panel FIG.13 1. ON/OFF (power) button Receiver for remote control 2. Sign for dehumidification/water full Timer display 14. “Temperature up” button 3. Sign for fan (ventilation) 4. Mode button Timer button 5. Sign for heat function Sign for TiO2/ionizer (only for the unit with 6.
Page 10
Turning ON/OFF Press ON/OFF button, the unit will start automatically. If the ambient temperature is Higher than 23 C, the unit will work in cooling mode. Higher than 20 C but below or equal to 23 C, the unit will work in ventilation model. ...
Page 11
Sleep function In cooling mode, by pressing the SLEEP button, the set temperature will increase 1 C at the 1st hour, another 1 C at the second hour, then keeps at that temperature. In heat mode, by pressing the SLEEP button, the set temperature will descend 1 C at the 1st hour, another 1 C at the second hour, then keeps at that temperature.
Page 12
NOTICE ! To prolong the compressor's life, after switching-off of the unit, please wait for 3 minutes (at least) before re-switching it back on again. The cooling system will switch off if the ambient temperature is lower than the set one. The ventilation, however, keeps working on the set level.
Page 13
If you wish to operate the unit without the need to empty the water tank, please: Remove the drain knob and rubber plug and retain for future use. Connect the drain tube supplied to the water outlet as shown and locate the other end into a drain.
MAINTENANCE Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions.
Page 15
Drain any water in the unit before completely operating the unit on ventilation only mode for a few hours, to thoroughly dry the inside. Clean or change the filter Unplug and store the power cord as shown ...
FAULT CHECK LIST If The air conditioner does not run Is the air conditioner plugged in? Is there a power failure? Is the comp / ‘full water’ indicator flashing? Is the room temperature below the set temperature? ...
Page 17
Model no. RHMA055 12000 BTU/hr Cooling capacity 3516 watts Heating Capacity 1800W 1500W/ 6.7A Power/Ampere consumption 480m Air volume (max. speed) 1.4 L/hr Humidity removal capacity Power supply 220-240V~, 50Hz Compressor rotary Refrigerant R410A (Please refer to the rating label.) Fan speed Timer 1~24 hours...
SERVICING THE APPLIANCE There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check the following: You have followed the instructions correctly That the unit has been wired correctly and that the wall socket is switched on. ...
Page 19
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
