7 Mechanical
7.1
Mechanical Drawing

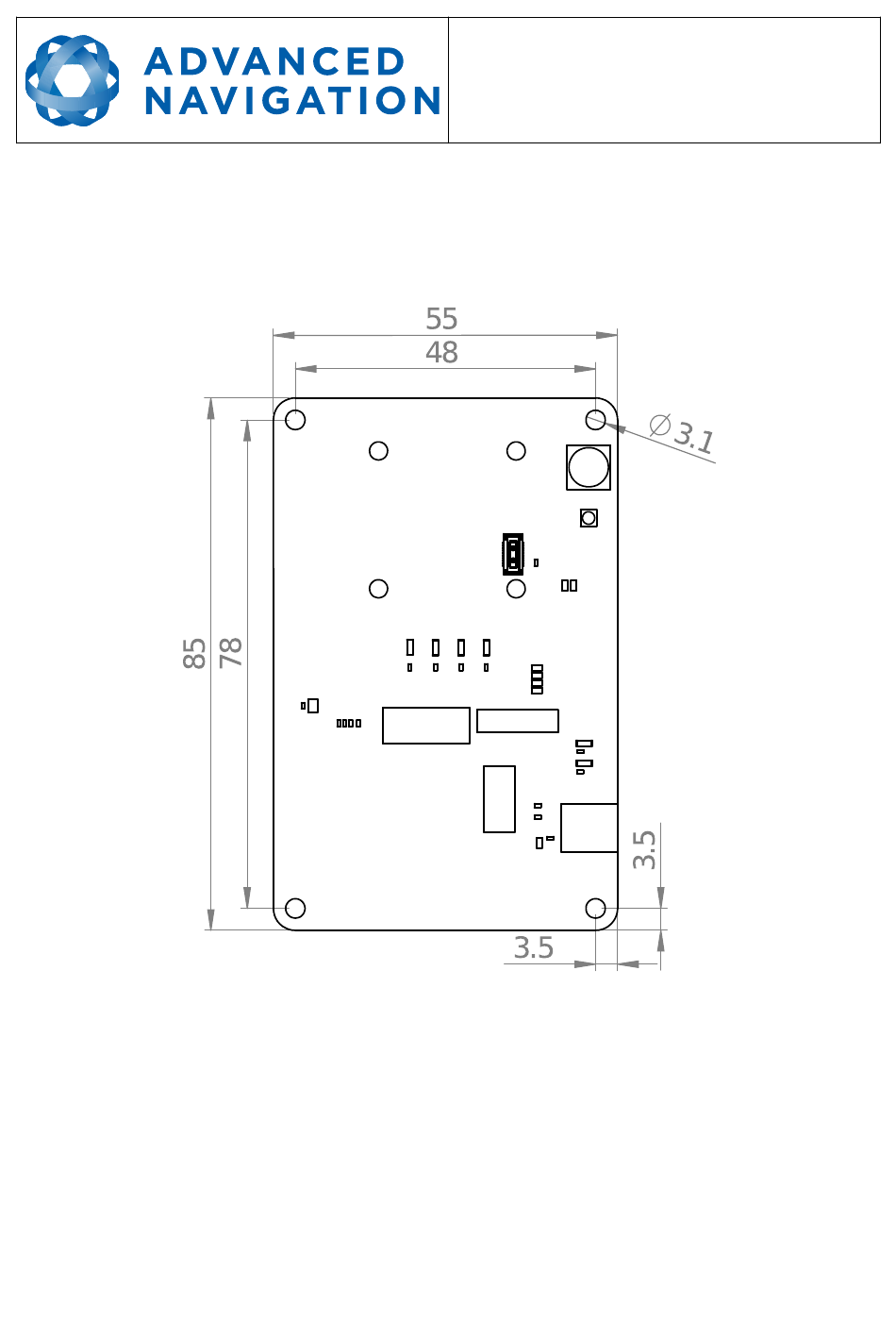

Illustration 10: OEM development board mechanical drawing
7.2
Optional Enclosure
The OEM Development Board can be installed into an optional off the shelf enclosure for more
rugged testing if required. The development board will fit inside a Hammond 1550Z106BK or
1550Z111BK heavy duty, watertight enclosure. These enclosures can be purchased from Digikey,
Mouser, Element 14 and many other electronics distributors.
Please take care to ensure that all signals from the OEM development board that are routed out of
any enclosure design are protected against ESD and other potential electrical hazards that may
damage Spatial OEM.
Spatial OEM Development Kit Manual
Page 17 of 20
Version 3.0
