5.1.2

Primary Serial Port to RS232 1 and GPIO 3 & 4 to RS232 2

5.1.3

Primary Serial Port and GPIO 3 & 4 to GPIO Header at TTL levels

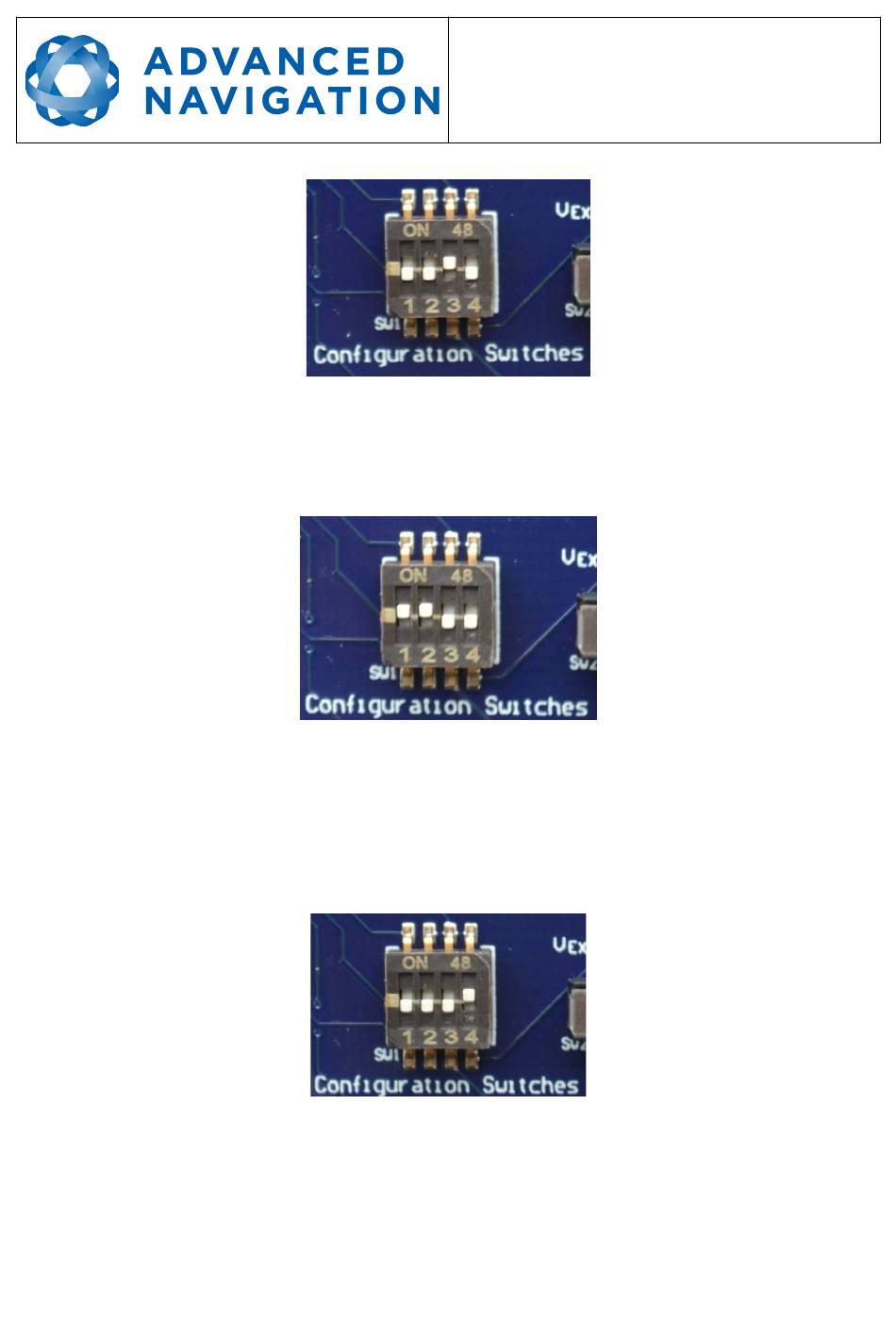

Illustration 5: Switch positions for

primary serial port to USB (default)

Illustration 6: Switch positions for

primary serial port to RS232 1 and

GPIO 3 & 4 to RS232 2

Illustration 7: Switch positions for

primary serial port and GPIO 3 &

4 to GPIO header at TTL levels

Spatial OEM Development Kit Manual

Page 10 of 20

Version 3.0
