TO REMOVE THE STATOR — After pulling the top

of the condenser oriﬁce away from the condenser coil,

grasp the top of the stator and slide it up and out of the

stator track. See Figure 20.

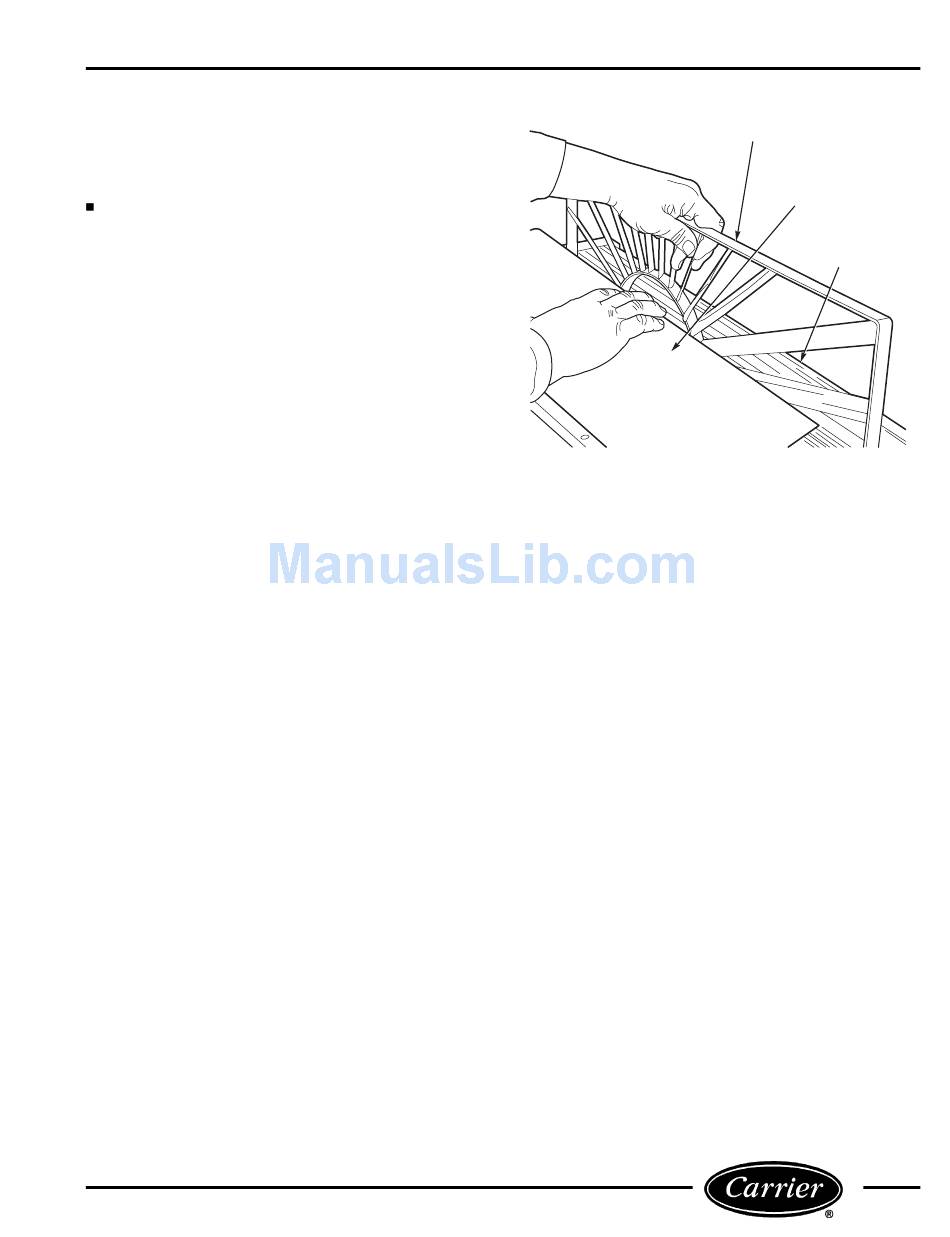

FIGURE 20 — REMOVING STATOR

STATOR

CONDENSER

ORIFICE

CONDENSER

COIL
