- Page 1 USER ATLAS X MANUAL VERTICAL TURBINE “WIND POWER NOW AT YOUR DOORSTEP.” Revision Index 00 Revision Date: 08 Nov ’21 MADE IN EUROPE ENGLISH | EN ATLAS X (MADE IN EUROPE)
- Page 2 PRODUCT OVERVIEW ATLAS X (MADE IN EUROPE)
-
Page 3: Table Of Contents
Shipping Conditions Prerequisites at the place of use Permissible wind class, footprint, and minimum 7.2.1 clearances 7.2.2 Mounting Details Unpacking the components Assembling the wind turbine Electrical Connections Regular Operation Switching on the wind turbine system ATLAS X (MADE IN EUROPE) - Page 4 Safety precautions during maintenance work 10.2 Inspection and maintenance schedule 10.3 Maintenance & cleaning by the user Removal from service & disposal 11.1 Final decommissioning wind turbine 11.2 Disposal of the wind turbine system & components Declaration Appendix Notes ATLAS X (MADE IN EUROPE)
-
Page 5: General
The wind turbine system has been erected correctly by a suitably • trained person. All operating personnel have read and fully understood this translation • of the original instructions The wind turbine system is properly maintained and repaired. • ATLAS X (MADE IN EUROPE) -
Page 6: Symbols Used
Please notify the manufacturer or his authorized representative about any • of the following: Accidents • Potential safety hazards associated with the wind turbine system • Ambiguities in this translation of the original instructions • Description of the wind turbine system • ATLAS X (MADE IN EUROPE) -
Page 7: Technical Description
Operation outside the manufacturer’s specification. • All modifications or changes to the wind turbine system without the • manufacturer’s written approval! Use of parts other than ATLAS X original parts. • Operation in non-approved SWTS classes. • Operation in strong winds or hurricanes. -
Page 8: System Components
3.3 SYSTEM COMPONENTS ATLAS X CHARGE CONTROLLER BATTERY INVERTER NOTE: Several Batteries can be connected in Parallel Or series depending upon the system voltage. ATLAS X (MADE IN EUROPE) -
Page 9: Wind Turbine Components

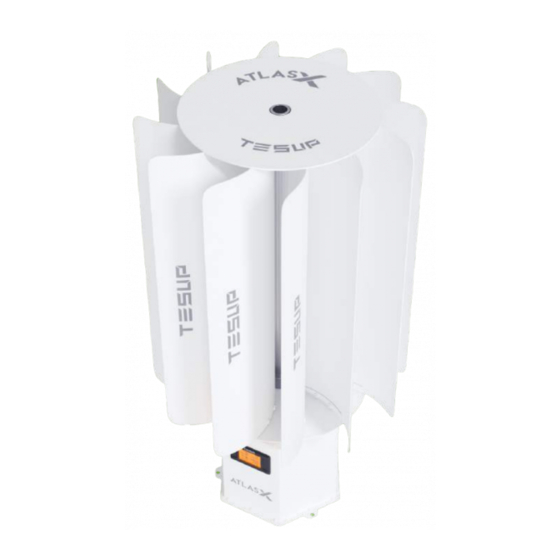

3.4 WIND TURBINE COMPONENTS Sr. No. Description Quantity Turbine Blades Bottom Flange Mounting base Wing Support Mounting Shaft Top Flange PART LIST TABLE ATLAS X (MADE IN EUROPE) -
Page 10: Parameter And Dimensional Details
DIRECTION OF ROTATION Counter-Clockwise 3 m/s STARTING WIND SPEED NO. OF BLADES MAX RPM MAX SPEED 50m/s NOISE 30 dB PARAMETERS WARNING: If a hurricane scale III (50–58 m/s) or above occurs, please cover wind turbine blades. ATLAS X (MADE IN EUROPE) -
Page 11: Power Curve
4.1.1 POWER CURVE POWER CURVE ATLAS X (MADE IN EUROPE) -
Page 12: General Arrangement Drawing
4.2 GENERAL ARRANGEMENT NOTE: DIMENSIONS ARE IN mm (ft) ATLAS X (MADE IN EUROPE) -
Page 13: Controller
5.1 TECHNICAL DETAILS The Wind Turbine Charge Controller from TESUP is an intelligent controller • which controls the wind turbine. It safely and efficiently charges and control your battery with the wind generator combination. With its discreet appearance and simple operation with integrated protec- •... -
Page 14: Wiring Diagram
5.2 WIRING DIAGRAM WIRING DIAGRAM ATLAS X (MADE IN EUROPE) -
Page 15: Permissible Storage & Operation
5.3 STORAGE & OPERATION STORAGE: • Ambient temperature: -15 to +40°C. • Storage location: Dry, frost-free • OPERATION: • Ambient temperature: -25 to +40°C. • Place of use: Max. SWTS Class III acc. to EN 61400-2. • ATLAS X (MADE IN EUROPE) -
Page 16: Safety Information
The wind turbine system is in conformity with the European Machinery • Directive 2006/42/EC provided only original ATLAS X components are used and subject to proper erection. The use of components from other manufac- turers as well as modifications or changes to the wind turbine system by the user are prohibited and could render the declaration of conformity invalid! 6.2 RESIDUAL RISKS... -
Page 17: Important Safety Instructions
Observe wire size and fuse recommendations listed in the Wiring Section of • this manual. WARNING: Rotating blades are a serious mechanical hazard. Install wind turbines so no one can come in contact with blades. ATLAS X (MADE IN EUROPE) -
Page 18: Pre-Use Preparation
WARNING: Danger to life due to operation in non-approved wind classes! The wind turbine system may only be operated at Class III wind sites. NOTE: When choosing the place of use, make sure adequate room is available to tilt the tower and blades ATLAS X (MADE IN EUROPE) -
Page 19: Mounting Details
7.2.2 Mounting Details MOUNTING DETAILS NOTE: Use of M10 hex bolts or Anchor Fasteners recommended. ATLAS X (MADE IN EUROPE) -
Page 20: Unpacking The Components
Flange screwing holes for the blades should be matched when you look at • them from the top. Connect flange-shaft parts to the body now and use screws for the bottom • hole to make it tight. Use white belts to merge the bottom and top wings. ATLAS X (MADE IN EUROPE) - Page 21 • There are 12 blade supports, to connect blade parts to each other from • the outside of the blades. Connect the wing and shaft by matching the holes • SCAN TO WATCH INSTALLATION VIDEO ATLAS X (MADE IN EUROPE)
- Page 22 TURBINE BODY ASSEMBLY PROCEDURE BASE—ROD—BOTTOM FLANGE-TOP FLANGE WING AND TURBINE BODY ASSEMBLY PROCEDURE WINGS-TURBINE BODY-ATLAS X ATLAS X (MADE IN EUROPE)
-
Page 23: Electrical Connections
CABLE DETAILS WARNING: All work on electrical equipment must be carried out by a qualified electrician with the power switched off! NOTE: To ensue proper operation, you must use an original TESUP charge controller. ATLAS X (MADE IN EUROPE) -
Page 24: Regular Operation
8.1 SWITCHING ON THE WIND TURBINE SYSTEM Unlock the emergency stop button or release the brake button on the TESUP • charge controller. The brake is released. • The fast-blinking red LED on the TESUP charge controller goes out. •... -
Page 25: Shutting Down The System
9.1 EMERGENCY SHUTDOWN Switch on the brake. • The wind turbine is short-circuited via the TESUP charge controller. • 9.2 TEMPORARY SHUTDOWN Switch on the brake. • The wind turbine is short-circuited via the TESUP charge controller. • This type of shutdown can occur during the stormy weather when the wind •... -
Page 26: Maintenance
Electrical wiring Inspect the cables for damage INSPECTION SCHEDULE WARNING: Shut down the wind turbine system immediately if the rotor blades or the electrical wiring are damaged. Refer to the supplementary documents for information on maintaining suppli- • er components. ATLAS X (MADE IN EUROPE) -
Page 27: Maintenance & Cleaning By The User
Coat the wind turbine and the rotor blades regularly with commercially • available. NOTE: A wax film protects the surfaces of the wind turbine and the rotor blades from the weather and increases the efficiency of the blades. ATLAS X (MADE IN EUROPE) -
Page 28: Removal From Service & Disposal
Where necessary, dispose of the individual components in consultation with • the responsible local authorities. Wind turbine system Wiring, electrical components Dispose of as electronic scrap Mechanical components Segregate prior to disposal DISPOSAL DETAIL TABLE ATLAS X (MADE IN EUROPE) -
Page 29: Declaration
CERTIFICATE OF INCORPORATION ATLAS X (MADE IN EUROPE) -
Page 30: Appendix
PAGE 11: POWER CURVE • PAGE 14 : WIRING DIAGRAM • PAGE 16: PERSONNEL REQUIREMENT TABLE • PAGE 19: MOUNTING DETAILS • PAGE 23: CABLE DETAILS • PAGE 26: INSPECTION TABLE • PAGE: 28: DISPOSAL DETAIL TABLE • ATLAS X (MADE IN EUROPE) -
Page 31: Notes
NOTES... - Page 32 TESUP HEADQUATERS, 22 SUTTON LANE NORTH CHISWICK, LONDON W4 4LD UNITED KINGDOM...
