Summary of Contents for Tesup MASTER 940

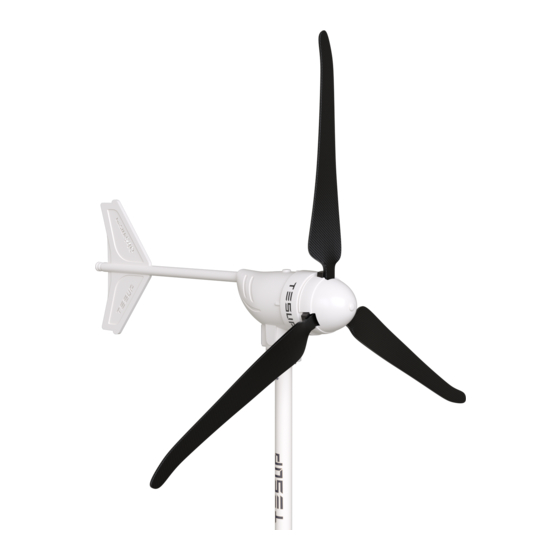

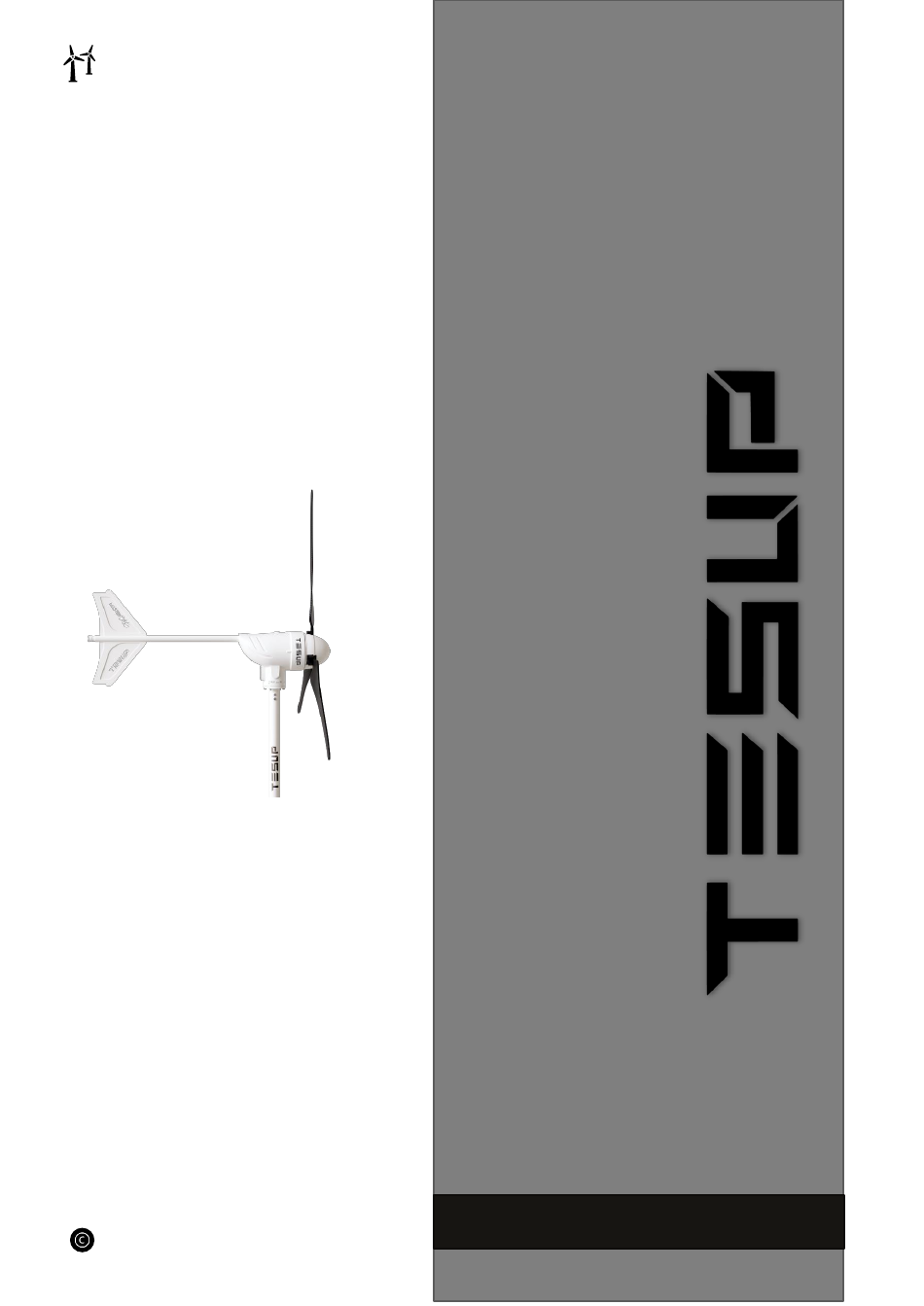

- Page 1 TESUP (MADE IN EUROPE) MASTER 940 Wind Turbine “POWER IS IN CREATING.” Revision Index 00 Revision Date: USER MANUAL ENGLISH | EN Made in Europe TESUP...
- Page 2 TESUP MASTER 940 (MADE IN EUROPE) A GLIMPSE OF MASTER 940 ~ 2 ~ TESUP...
- Page 3 TESUP MASTER 940 (MADE IN EUROPE) 1. INDEX Sr. No. Description Page no. Index General General Instructions 2.1.1 Operating and Installing Conditions Symbols Used Warranty Details Product Feedback Technical Description Intended Use Reasonably foreseeable misuse System Components Wind Turbine Components...
- Page 4 TESUP MASTER 940 (MADE IN EUROPE) Switching on the wind turbine system Restart after an emergency Shutting down the System Emergency Shutdown Temporary shut-down Prolonged shut-down Maintenance 10.1 Safety precautions during maintenance work 10.2 Inspection and maintenance schedule 10.3 Maintenance and cleaning by the user...
- Page 5 TESUP MASTER 940 (MADE IN EUROPE) 2. GENERAL 2.1 GENERAL INSTRUCTIONS: ▪ Before you begin installing, read this entire owner’s manual. Identify and note your model wind turbine where it appears in this manual. Following the instruction and recommendations in this manual will help assure safe and enjoyable use of your new renewable energy system.
-
Page 6: Symbols Used
TESUP MASTER 940 (MADE IN EUROPE) 2.2 SYMBOLS USED: ▪ In this Manual IMPORTANT: Please take a note. DANGER: Immediate danger can cause serious injury. WARNING: Potential Danger can cause serious injury. CAUTION: Potential Danger can cause moderate injury. NOTE: Useful Tips ▪... -
Page 7: Warranty Details
TESUP MASTER 940 (MADE IN EUROPE) 2.3 WARRANTY DETAILS: ▪ The “General Terms of Sale and Delivery” of the manufacturer or his authorised representative apply. 2.4 PRODUCT FEEDBACK: ▪ Please notify the manufacturer or his authorised representative about any of the following:... -
Page 8: Technical Description
Operation outside the manufacturer’s specification. o All modifications or changes to the wind turbine system without the manufacturer’s written approval! o Use of parts other than MASTER 940 original parts. o Operation in non-approved SWTS classes. o Operation in strong winds or hurricanes. -
Page 9: System Components
TESUP MASTER 940 (MADE IN EUROPE) 3.3 SYSTEM COMPONENTS: NOTE: Several Batteries can be connected in Parallel Or series depending upon the system voltage. CONTROLLER BATTERY MASTER940 WIND TURBINE INVERTER ~ 9 ~ TESUP... - Page 10 TESUP MASTER 940 (MADE IN EUROPE) 3.4 WIND TURBINE COMPONENTS: Item Description Quantity Nose Turbine Blades Hub for holding the blades Generator Boom for wind direction flag Tail vane Adapter stud ∅ 37 mm / Connection for tripod PART LIST TABLE...
- Page 11 TESUP MASTER 940 (MADE IN EUROPE) 4. PARAMETER & DIMENSIONAL DETAILS 4.1 PARAMETER DETAILS: SPECIFICATIONS 48V (with on grid DESIGNATION option) GENERATOR Permanent magnet rotor, brushless, gearless, maintenance- free TYPE WEIGHT MAX. POWER 940 W OPERATING CIRCUIT VOLTAGE 0-330 Volts...
-
Page 12: Power Curve
TESUP MASTER 940 (MADE IN EUROPE) 4.1.1 POWER CURVE: POWER CURVE ~ 12 ~ TESUP... -
Page 13: General Arrangement Drawing
TESUP MASTER 940 (MADE IN EUROPE) 4.2 GENERAL ARRANGEMENT DRAWING: ~ 13 ~ TESUP... -
Page 14: Technical Details
TESUP MASTER 940 (MADE IN EUROPE) 5. CONTROLLER 5.1 TECHNICAL DETAILS: ▪ The Wind Turbine Charge Controller from TESUP is an intelligent controller which controls the wind turbine. It safely and efficiently charges and control your battery with the wind generator combination. -
Page 15: Wiring Diagram
TESUP MASTER 940 (MADE IN EUROPE) 5.2 WIRING DIAGRAM: WIRING DIAGRAM Main components and their functions Note: This wind turbine has got built-in charge controller. The wind turbine can be directly connected to the battery. 5.3 STORAGE & OPERATION: ▪ STORAGE: o Ambient temperature: -15 to +40°C. -
Page 16: Safety Information
TESUP MASTER 940 (MADE IN EUROPE) 6. SAFETY INFORMATION 6.1 MODIFICATIONS OR CHANGES BY THE USER: ▪ The wind turbine system is in conformity with the European Machinery Directive 2006/42/EC provided only original MASTER940 components are used and subject to proper erection. -
Page 17: Important Safety Instructions
TESUP MASTER 940 (MADE IN EUROPE) 6.4 IMPORTANT SAFETY INSTRUCTIONS Properly torque all fasteners. ▪ ▪ Use grounding techniques as established by the NEC. ▪ Install turbine in accordance with this manual and local and national building codes. Failure to comply may affect and possibly void your warranty. - Page 18 TESUP MASTER 940 (MADE IN EUROPE) 7. PRE-USE PREPARATION 7.1 SHIPPING CONDITIONS: The wind turbine system is shipped disassembled. ▪ ▪ Refer to the contract documentation for the scope of supply. 7.2 PRE-REQS AT THE PLACE OF USE: 7.2.1 Permissible wind class, footprint, and minimum clearances: WARNING: Danger to life due to operation in non-approved wind classes! The wind turbine system may only be operated at Class III wind sites.
- Page 19 TESUP MASTER 940 (MADE IN EUROPE) 7.2.2 Mounting Details: The soil must have a sufficient load-bearing capacity. The size and structure of the foundation depend on the ground characteristics. NOTE: Ask a qualified structural engineer for advice regarding the optimal design of the foundation.
-
Page 20: Unpacking The Components
TESUP MASTER 940 (MADE IN EUROPE) 7.3 UNPACKING THE COMPONENTS: ▪ Carefully open the packaging. ▪ Check the shipment for completeness (refer to the shipping documents). ▪ Separate the packaging material and dispose of it in an environmentally responsible way. - Page 21 TESUP MASTER 940 (MADE IN EUROPE) ASSEMBLY PROCEDURE ~ 21 ~ TESUP...
-
Page 22: Electrical Connections
All work on electrical equipment must be carried out by a qualified electrician with the power switched off! NOTE: To ensure proper operation, you must use an original TESUP charge controller ▪ Connect a three-wire cable with a suitable cross-section (refer to Table 9 / Table 10) and the required length to the generator. -
Page 23: Erecting The Wind Turbine
TESUP MASTER 940 (MADE IN EUROPE) ▪ Feed the three-wire cable through the tower right up to the top. ▪ Provide suitable strain relief. ▪ Connect the wires to the generator ▪ Short circuit all 3 phases to activate the generator brake. -
Page 24: Regular Operation
8.1 SWITCHING ON THE WIND TURBINE SYSTEM: ▪ Unlock the emergency stop button or release the brake button on the TESUP charge controller. ▪ The brake is released. ▪ The fast-blinking red LED on the TESUP charge controller goes out. -
Page 25: Emergency Shutdown
9. SHUTTING DOWN THE WIND TURBINE 9.1 EMERGENCY SHUTDOWN: ▪ Switch on the brake. ▪ The wind turbine is short-circuited via the TESUP charge controller. 9.2 TEMPORARY SHUTDOWN: ▪ Switch on the brake. ▪ The wind turbine is short-circuited via the TESUP charge controller. -
Page 26: Safety Precautions During Maintenance Work
TESUP MASTER 940 (MADE IN EUROPE) 10. MAINTENANCE 10.1 SAFETY PRECAUTIONS DURING MAINTENANCE WORK: WARNING: Risk of injury when carrying out maintenance work! X Shut down the wind turbine system prior to all maintenance work. X Take steps to prevent the wind turbine system from being switched on again by unauthorised persons. -
Page 27: Maintenance And Cleaning By The User
TESUP MASTER 940 (MADE IN EUROPE) 10.3 MAINTENANCE AND CLEANING BY THE USER: ▪ Coat the wind turbine and the rotor blades regularly with commercially available underbody protection wax using a soft cloth. NOTE: A wax film protects the surfaces of the wind turbine and the rotor blades from the weather and increases the efficiency of the blades. -
Page 28: Troubleshooting And Diagnostics
TESUP MASTER 940 (MADE IN EUROPE) 11. TROUBLESHOOTING & DIAGNOSTICS NOTE: Error messages are displayed on the TESUP charge controller. Refer to the separate instructions Error Possible cause Possible actions Not enough wind Wind turbine None does not start up “Stop”... -
Page 29: Removal From Service And Disposal
TESUP MASTER 940 (MADE IN EUROPE) 12. REMOVAL FROM SERVICE AND DISPOSAL 12.1 FINAL DECOMMISSIONING OF WIND TURBINE SYSTEM: WARNING: Risk of injury due to unqualified dismantling, e.g. ▪ Persons without suitable training ▪ Stored energy ▪ Breakage during dismantling important note on dismantling and disposal. - Page 30 TESUP MASTER 940 (MADE IN EUROPE) 13. DECLARATION ~ 30 ~ TESUP...
- Page 31 TESUP MASTER 940 (MADE IN EUROPE) 14. APPENDIX PAGE 1: INDEX PAGE 6: SAFETY SYMBOL TABLE PAGE 10: PART LIST TABLE PAGE 11: PARAMETERS PAGE 12: POWER CURVE PAGE 15: WIRING DIAGRAM PAGE 16: PERSONNEL REQUIREMENT TABLE PAGE 19: MOUNTING DETAILS...
- Page 32 TESUP MASTER 940 (MADE IN EUROPE) 15. MANUFACTURER DETAILS & CUSTOMER SUPPORT TESUP HEADQUATERS, 22 SUTTON LANE NORTH CHISWICK, LONDON W4 4LD UNITED KINGDOM TESUP OFFICIAL WEB-STORE ONLINE CHAT ~ 32 ~ TESUP...
- Page 33 TESUP MASTER 940 (MADE IN EUROPE) 16. NOTES ~ 33 ~ TESUP...
